QSFP28 100G OTU Optical Transponder And Muxponder Unit For OSP3800 Chassis
QSFP28-based 40G&100G Transponder for OSP3800 Series Chassis for WDM System
40G&100G Transponder incorporates QSFP28-based access interfaces that can accommodate various types of QSFP28, e.g. Multimode Single mode, The 4SFP port is 4x 10Gbps /4x25G , permitting flexible connectivity options between the muxponders either in a WDM system, Compared with the 100G coherent solution, the 40G&100G Transponder DWDM solution significantly reduces costs and is the most cost-effective metropolitan area network and big data center expansion solution. It fits the OSP3800 Series Chassis.

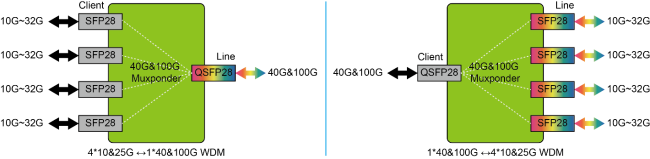

Product Diagram
Functional Structure
Product Application
-
Telecom
-
Datacenter
-
5G Network
-
Long Haul Network
Product Specification
| Function | Note | |
| Application | 4x10G↔40G & 4x25G↔100G | 40G↔ 4x10G & 100G↔4x25G |
| interface |
l Client-side interface: 4 SFP28l hot-pluggable, compatible with SFP+ l WDM-side interface: 1 QSFP28 hot-pluggable, compatible with QSFP+ |
l Client-side interface: 1 QSFP28 hot-pluggable, compatible with QSFP+ l WDM-side interface: 4 SFP28 hot-pluggable, compatible with SFP+ |
| Basic function | Supports 4*10G & 4*25G service optical signals to be multiplexed into one 40&100G rate WDM standard wavelength optical signal | Supports one 40&100G service optical signal demultiplexed into 4*10G & 4*25G rate WDM standard wavelength optical signals |
| Support service type |
l 10GE, 25GE l 8G/10G/16G FC (compatible 32G ) l STM-64, OTU2, CPRI/eCPRI |
l 40GE, 100GE l OTU3, OTU4 |
| WDM technology | Support DWDM: C band 100GHz 40 waves |
Support CWDM: 18 waves Support DWDM: C band 50GHz 80 waves |
| Occupied slot number | Support OSP3800 series chassis, occupy 1 slot,(0.5U) | |
| Network management function |
l Support port loopback and port shutdown |
|
| Power consumption | 20W (max, including transceiver) | |
| MTBF | ＞100000 hours | |
| NMS management card | 100G QSFP28 to CFP transponder | 2xQSFP28 to CFP2 200G Muxponder |
| 100G Muxponder:QSFP28 ↔4xSFP28 | 40G&100G OEO:6*QSFP28 | SFP28 25G Quad transponder |
| SFP+ Multi-Rate Quad transponder | Redundant Multi-Rate Dual transponder | EDFA Optical Amplifiers |
| Bidi EDFA Optical Amplifiers | 16ch DWDM MUX/DEMUX | 40ch DWDM MUX/DEMUX(AAWG) |
| OLP Optical Line Protector | DWDM Passive Optical Add/Drop Multiplexers | / |
