25G OTU SFP28 OEO Converter OTN Equipment Multi Rate Quad Transponder
40G&100G OTU Transponder OEO Card for Telecom, Data Center, 5G Network & Long Haul Network
25G OTU service card launched by Shenzhen ISEELINK Communication Technology Co.,Ltd. supports four types of service access with 16 to 32G rates. Its main function is to finish the 3R regeneration of any 4-channel signals under any protocol within the rate of 25 Gbit/s to be accessed, and then convert them to optical signals of a standard DWDM wavelength or standard CWDM wavelength so that the multiplexing unit can conduct WDM for optical signals of different wavelengths and also achieve the inverse process of the above process. It’s applicable to the wavelength division transmission solution for 25G rate services and is compatible with 16G or 32G FC.

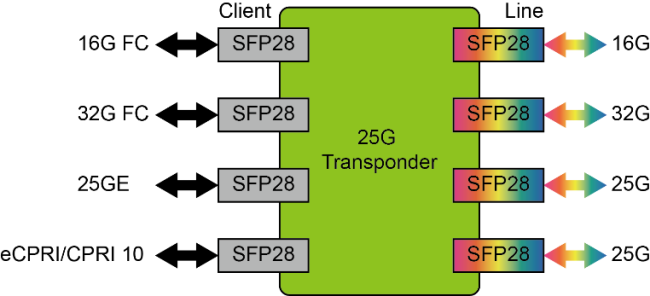

Functional Structure
Product Application
- Telecom
- Data center
- 5G Network
- Long Haul Network
- Fiber optical network
Product Specification
| Function | Note |
| interface |
|
| Line mode | Supports transparent transmission of any type of service in four 16G~32G rate ranges, and converts four service optical signals into four WDM standard wavelength optical signals. |
| Relay mode | Support 16G~32G wavelength electrical relay |
| Support service type | l 25GE l 16G FC(compatible 32G) l ECPRI,CPRI 10 |
| Adaptive | 16~32G rate adaptive, configuration free |
| WDM technology | l Support CWDM: 18 waves l Support DWDM: C band 50GHz 80 waves |
| Occupied slot number | Support OSP3800 series chassis, occupy 1 slot, (0.5U) |
| Network management function |
l Support port loop back and port shutdown |
| Power consumption | 16W (max, including transceiver) |
| NMS management card | 100G QSFP28 to CFP transponder | 2xQSFP28 to CFP2 200G Muxponder |
| 100G Muxponder:QSFP28 ↔4xSFP28 | 40G&100G OEO:6*QSFP28 | SFP28 25G Quad transponder |
| SFP+ Multi-Rate Quad transponder | Redundant Multi-Rate Dual transponder | EDFA Optical Amplifiers |
| Bidi EDFA Optical Amplifiers | 16ch DWDM MUX/DEMUX | 40ch DWDM MUX/DEMUX(AAWG) |
| OLP Optical Line Protector | DWDM Passive Optical Add/Drop Multiplexers | / |
FAQ:
Q1. Can I have a sample order for it?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparation,8-10 working days for mass production.
Q3. Do you have any MOQ?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx, or TNT. It takes 3-5 days to arrive. Airline and sea shipping are also optional.
