6 Port Fiber POE Ethernet Switch Full Gigabit 100M 50Hz 60Hz
6 Ports 10/100/1000M Ethernet PoE Switch
Introduction
6-Port Gigabit PoE switch, using high-quality high-speed network IC and the most stable PoE chip, The PoE port meets the 802.3af or 802.3at standard. This series of PoE switches can provide seamless connection for 10/100/1000M Ethernet, and the PoE power supply port can automatically detect and supply power to powered devices that comply with IEEE802.3af or IEEE802.3at standards, and non-PoE devices intelligently detect no power supply, only data is transferred.
Features

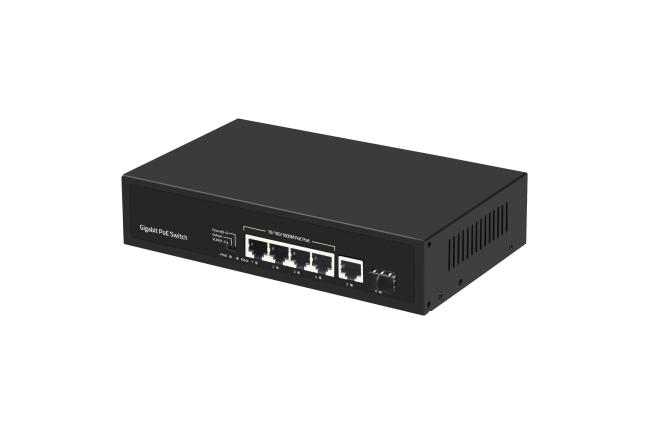

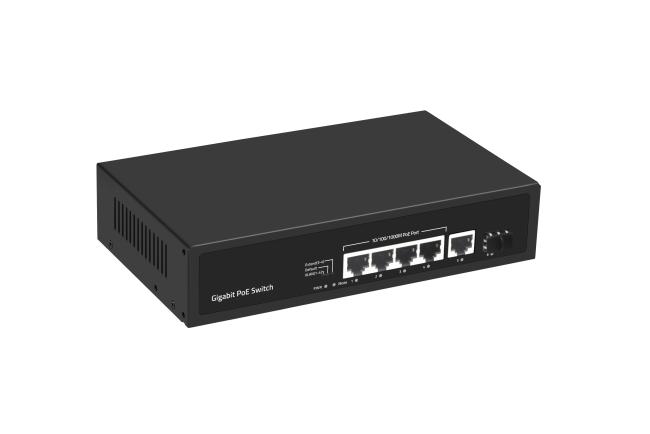

We are pleased to introduce our product which is the 4*10/100/1000M POE Ports + 1*1000M RJ45 Port+1*1000M SFP Port, manufactured by Shenzhen Olinc Technology Co., Ltd.
Our product is fully compliant with IEEE 802.3, IEEE 802.3u, IEEE802.3ab, IEEE802.3z standards. It features Ethernet port 10/100/1000M rate auto adaptive, with full-duplex flow control adopts the IEEE 802.3x standard, while half-duplex flow control adopts the Back pressure standard. Additionally, our product supports Port Auto-flip (Auto MDI/MDIX) and panel indicators to monitor working status and help fault analysis.
Our one-key smart switch makes it easy to manage your network, including support for VLAN, Default, and Extend functionality.
Specifications
| Protection | |
| Security Certificate | CE,FCC,RoHS |
| Environment | |
| Working Environment |
Working Temperature:-10~50°C |
| Indication | |
| PWR(power supply) |
Lighting:Powered |
| Mode(DIP) |
Lighting:VLAN |
| 1-6 Gree(Link&Data) |
Lighting:Connecting |
| DIP Switch |
VLAN:Port isolation mode. In this mode, the PoE ports (1-4) of the switch cannot communicate with each other, and can only communicate with the UP-link port. |
| Mechanical | |
| Structure Size |
Product Dimension : 200*118*44.5mm |
| Packing Info |
Carton MEAS:520*320*400mm |
| Power Voltage |
Input Voltage :AC 100-240 V |
| power |
Product power: maximum 5W |
| Package List | Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc, |

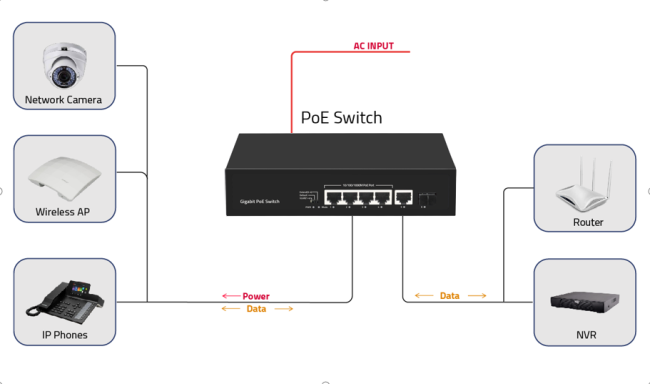

Application
and
