Multi Port Uplink Gigabit POE Ethernet Switch 24 Port 10/100M
27Port Gigabit Uplink 10/100M PoE Fiber Switch
Introduction
27 Port Gigabit Uplink 24 Port 100M PoE Switch, using high-quality high-speed network IC and the most stable PoE chip, PoE Port support 802.3af and 802.3at standard both, this series of PoE Switch can be 10/100M Ethernet The network provides a seamless connection, and the PoE power port can automatically detect and power the powered devices that comply with the IEEE802.3af or IEEE802.3at standards. The non-PoE device intelligently detects no power and only transmits data.
PoE is Power over Ethernet, which refers to the transmission of data signals to some IP-based terminals (such as IP phones, wireless access APs, network cameras, etc.), but also provides DC power for this device. Technology, these devices that receive DC power are called powered devices.
Features
- 24*10/100M POE ports + 2* 10/100/1000M Ethernet Uplink ports+1* Gigabit SFP Uplink Port；
- Comply with IEEE 802.3, IEEE 802.3u, IEEE802.3ab ,IEEE802.3z IEEE802.3x standards；
- Ethernet port supports 10/100M adaptive；
- Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard；
- Support port auto flip (Auto MDI/MDIX)；
- Automatically supplied to adaptive devices；
- Panel indicator monitoring status and help failure analysis；
- Support for VLAN mode, OFF mode and Extend mode；
- Compatible with 1 U rack installation
Specifications
| I/O Interface | |
| Power | Input: AC 100-240V, 50/60Hz |
| Ethernet |
24 *10/100M PoE Port 2* 10/100/1000M Ethernet Uplink ports 1* Gigabit SFP Uplink Port |
| Performance | |
| Switching Capacity | 10.8Gbps |
| Throughput | 8.035Mpps |
| Packet Buffer | 1.5Mbit |
| MAC Address | 2K |
| Jumbo Frame | 9216bytes |
| Transfer Mode | Store and forward |
| MTBF | 100000 hour |
| Standard | |
| Network protocol |
IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab(1000Base-TX) IEEE802.3z(1000Base-FX) IEEE802.3x (Flow control) |
|
PoE Protocol
|
IEEE802.3af (15.4W) IEEE802.3at (30W) |
|
Network Medium
|
10Base-T : Cat3,4,5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or above UTP(≤100m) |
| Optical Media |
Multimode fiber : 50/125, 62.5/125, 100/140μm Single mode fiber: 8/125, 8.7/125, 9/125, 10/125μm |
| Security Certificate | CE,FCC,RoHS |
| Environment | |
| Working Environment |
Working Temperature:-10~50°C Storage Temperature:-40~70°C Working Humidity :10%~90%,non-condensing Storage Temperature:5%~95%,non-condensing |
| Indication | |
| LED Indicators | PWR(power supply),SW(DIP),1-27 Green(Link&Data) |
| PWR |
Lighting:Powered Un-Light:No Power |
| SW |
Lighting:VLAN Un-Light:OFF Flashing:Extend |
| 1-27 Green |
Lighting:Connecting Flashing:Data Transmit Un-Light:Disconnect |
| DIP Switch | VLAN ,OFF ,Extend |
| VLAN | Port isolation mode. In this mode, the PoE ports (1-24) of the switch cannot communicate with each other, and can only communicate with the UP-link port. |
| OFF | Normal mode, all port can communicate with each other, the transmission distance is within 100 meters, the transmission rate is 10M / 100M adaptive |
| Extend | Link extension mode, 9-24 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M |
| Mechanical | |
| Structure Size |
Product Dimension : 320*207*45mm Package Dimension : 370*290*85mm N.W:1.79kg G.W:2.40kg |
| Packing Info |
Carton MEAS:445*310*390mm Packing Qty:5 units Packing Weight:12.77KG |
| Power Voltage |
Input Voltage :AC 100-240 V Power supply:52V5.76A |
| Power |
Product power: maximum 15W POE power: maximum 280W |
| Package List | Switch 1 pcs, Power cord 1 pcs, User manual 1 pcs, Certification 1 pcs, Brackets 1 pair |

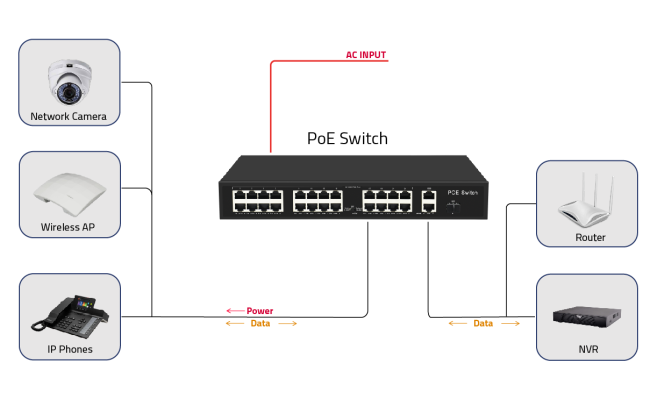

Application
FAQ:
Q1. Can I have a sample order for Industrial ethernet switch?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 3-5 days for Sample preparing ,8-10 working days for mass production.
Q3. Do you have any MOQ limit for optical fiber switch order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to deal with the faulty?
A: Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
