Custom Gigabit Managed PoE Switch 24port 100Mbps 24RJ45 industrial ethernet swtich
Gigabit managed Industrial ethernet Switch
Introduction of Industrial Fiber Media Converter
Product Features of managed hardened switch
- Input voltage: DC9~52V (dual power redundancy backup)
- Working temperature: -40 ℃~ + 85 ℃
- Housing: IP40 protection grade, DIN rail type, no fan design
- Inspection report: through the Ministry of public security inspection report, CCC/FCC/CE/ROHS
Specification of managed industrial fiber switch
| Product Name | 10/100/1000Mbps Industrial Fiber Switch (4F+24TP) |
| Model No. | IM-FS042400GW |
| Port |
4 x 1000Mpbs SFP ports (Port FX3 and FX4 are COMBO port) 24x10/100/1000M UTP RJ45( Port 23 and 24 are COMBO ports) |
| Standard | IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az |
| VLAND ID | 4096 |
| Jumbo Frame | 9.6KB |
| MAC Address Table Size | 8K |
| Poe Standard | IEEE802.3af, IEEE802.3at ( Poe is optional, default is without Poe) |
| Switching features |
Transmission mode:storage and forward System bandwidth:48Gbps (non-traffic jam) |
|
Network cables |
0BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤10meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
| LEDs | Power, network, fiber |
| Power supply |
DC 9-52V redundant power |
| Non-polar power input | support |
| Working temperature |
-40°～ 85°C |
| Industry Standards |
EMI:FCC Part 15 Subpart B Class A,EN 55022 Class A, EN61000-6-4- Emission for industrial environment EMS:EN61000-6-2-Immunity for industrial environment, EN 61000-4-2 (ESD) Level 3,EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3,EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3,EN 61000-4-8 Traffic Control:NEMA-TS2, Vibration:IEC 60068-2-6 Freefall:IEC 60068-2-32, Shock:IEC 60068-2-27 Rail Traffic:EN 50121-4 |
| Safety class |
IP30 |
| Dimension | 483x 275 x 44.5mm |

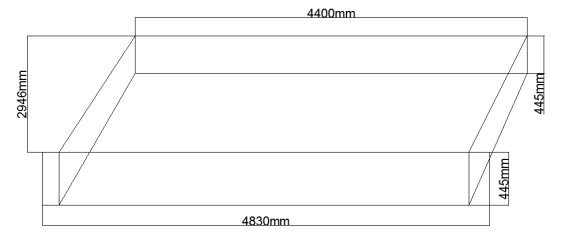

Dimension
Application
Advantage of our company :
1. National High-tech enterprise certification;
2. Fiber Optical Innovative &production team Over 10 years;
3. Fiber optical active and passive components production Workshop;
4. Strict quality management system;
5. Professional One stop supply & service;
6. OEM&ODM available;
7. Reliable and Timely customer services;
