10GBE SFP+ Optical Transceiver Module 10KM Dual Fiber LC Port DDM 1310nm

Price Negotiable

Price: negotiable

MOQ: 1pcs

Delivery Time: 4~7 days

Brand: Iseelink

Product Description

Industrial 10GB Ethernet SFP+ Module

Key features

Supports 9.95 to 11.3Gb/s bit rates
Hot-Pluggable
Duplex LC connector
1310nm DFB transmitter, PIN photo-detector
SMF links up to 10km
2-wire interface for management specifications compliant with SFF 8472 digital diagnostic monitoring interface
Power Supply :+3.3V
Power consumption<1.5W
Industrial operating temperature range: -40°C to 85°C
RoHS compliant

Description

GPSP-1396-10D is a very compact 10Gb/s optical transceiver module for serial optical communication applications at 10Gb/s.
It converts a 10Gb/s serial electrical data stream to 10Gb/s optical output signal and a 10Gb/s optical input signal to 10Gb/s serial electrical data streams. The high speed 10Gb/s electrical interface is fully compliant with SFI specification.
The high performance 1310nm DFB transmitter and high sensitivity PIN receiver provide superior performance for Ethernet applications at up to 10km links
The SFP+ Module compliants with SFF-8431, SFF-8432 and IEEE 802.3ae 10GBASE-LR. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
The fully SFP compliant form factor provides hot pluggability, easy optical port upgrades and low EMI emission.

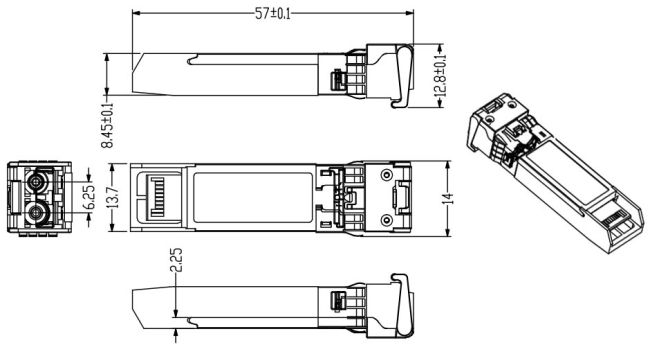

Technical Information

Parameter	Symbol	Min.	Typical	Max.	Unit	Note
Supply Voltage	Vcc	3.135		3.465	V
Supply Current	Icc			430	mA
Power Consumption	P			1.5	W
Transmitter Section:
Input differential impedance	Rin		100		Ω	1
Tx Input Single Ended DC Voltage Tolerance (Ref VeeT)	V	-0.3		4	V
Differential input voltage swing	Vin,pp	180		700	mV	2
Transmit Disable Voltage	VD	2		Vcc	V	3
Transmit Enable Voltage	VEN	Vee		Vee+0.8	V
Receiver Section:
Single Ended Output Voltage Tolerance	V	-0.3		4	V
Rx Output Diff Voltage	Vo	300		850	mV
Rx Output Rise and Fall Time	Tr/Tf	30			ps	4
LOS Fault	VLOS fault	2		VccHOST	V	5
LOS Normal	VLOS norm	Vee		Vee+0.8	V	5

Note:

1. Connected directly to TX data input pins. AC coupling from pins into laser driver IC.

2. Per SFF-8431 Rev 3.0

3. Into 100 ohms differential termination.

4. 20%～80%

5. LOS is an open collector output. Should be pulled up with 4.7k – 10kΩ on the host board. Normal operation is logic 0; loss of signal is logic 1. Maximum pull-up voltage is 5.5V.

6. SONET OC-192 / SDH

7. 10GBASE-LR/LW Ethernet
