10/100/1000Mbps Managed 6 Port Industrial Fiber Bypass Switch DC48V 90W Din Rail
Managed 6 port Industrial Fiber Bypass Switch DC48V 90W
Introduction of Managed industrial bypass switch
IM-FBS240GW is a 10/100/1000 Mbps industrial fiber bypass switch supporting following features
- Wide voltage dual power input
- Web GUI management
- Din rail installation
- FCC and CE certification
And as an indispensable part of optical communication&protection system, the fiber bypass is highly reliable and stable for different optical path needs such as
- Metropolitan area network (MAN)
- Dynamic configuration of add/drop multiplexing
- System monitoring
- Laboratory research and development
Meantime, the fiber pass switch characterizes
- Low Insertion Loss
- Wide Wavelength Range
- Low Channel Crosstalk
Specification of managed industrial fiber switch
| Product Name | 10/100/1000Mbps Managed Industrial Fiber Bypass Switch (2F+8TP) |
| Model No. | IM-FBS280GW |
| Port |
2 x 2.5G SFP port SM:1310nm/1550nm,20Km ;1490nm/1550nm, 40~120Km; MM:1310nm, 2Km; 8x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing) |
| Standard | IEEE 802.3, IEEE802.3U, IEEE802.3ab, IEEE802.3z, IEEE802.1d STP, IEEE802.1w RSTP, IEEE802.1s MSTP, ITU-T G.8023 EPR/Y.1344, IEEE802.1Q, IEEE802.1X, IEEE802.3ad, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.1ad, IEEE802.1p, IEEE802.1ab, IEEE802.3az |
| VLAND ID | 4096 |
| Jumbo Frame | 9.6KB |
| MAC Address Table | 8K |
| Switching features |
Transmission mode:storage and forward System bandwidth:58Gbps (non-traffic jam) |
| Network media |
10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port,transmission distance: 20Km,40Km,60Km,80Km,100Km |
| LEDs | Power, network, fiber, bypass |
| Power supply |
Input voltage: DC 9-52V; No-load power: 5W; Reverse connection: support |
| Environment | Working Temp:-40°～ 85°C ; Storage Temp:-40°～ 85°C;Working humidity:10%～90%, non-condensing; Storage humidity:10%～95%, non-condensing |
| Fiber Bypass | |||
| Category | Unit | Specification | |
| Wavelength range | nm | 850±40/1300±40 | 1260~1650 |
| Test wavelength | nm | 850/1300 | 1310/1550 |
| Insert loss | dB | Typ:0.6 Max:1.0 | Typ:0.6 Max:1.0 |
| Return loss | dB | MM≥30 SM≥50 | |
| Channel crosstalk | dB | MM≥35 SM≥55 | |
| Polarization loss | dB | ≤0.05 | |
| Wavelength loss | dB | ≤0.05 | |
| Temperature loss | dB | ≤0.05 | |
| Repeat-ability | dB | ≤0.05 | |
| Operating voltage | v | 3.3V-5V | |
| Service life | times | ≥100000000 | |
| Switching time | ms | ≤10 | |
| Transmission optical power | mw | ≤500 | |
| Operating temperature | ºc | -20~+70 | |
| Storage temperature | ºc | -40~+85 | |

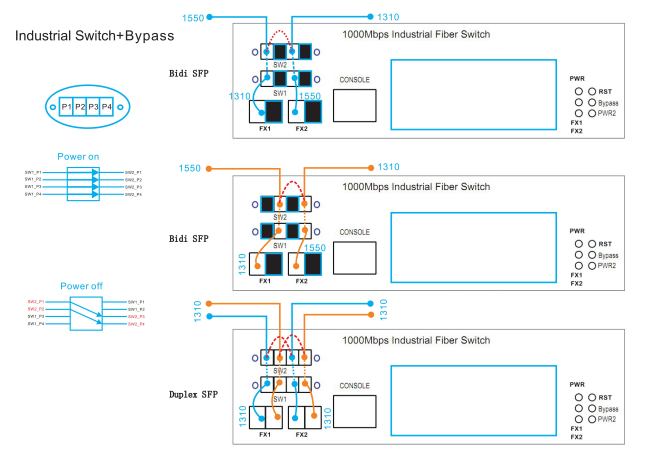

Application
