Promotion price woodworking automatic pvc edge banding machine
Price:
$10,000.00/sets >=1 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
ZHONGDING
Product Description
PRODUCT CONFIGURATION
Fully automatic edge banding machine
Preheating plate makes the gluing process easier and fixed.
Pre-milling equipment with double trimming blades works on the waved effect.
The glue port is made of imported special ball bearing, high hardness ans super wear-resistant material rubber box.
End cutting mechanism adopts automatic tracking and high frequency motor to ensure the cutting surface smoothly.
Updated trimming mechanism with special saw blade and big copy wheel to improve the precision of trimming.
Linear Bearings Fluid & Accurate
PRODUCT SPECIFICATIONS
Item | Data |
Banding tape thickness | 0.4-3 mm |
Banding tape width | 10-60 mm |
Work piece thickness | 10-60 mm |
Work piece length | >=100 mm |
Work piece width | >=50 mm |
Total power | 11.53kw |
Air pressure | 0.7 Mpa |
Feeding speed | 13 m/min |
Overall dimension | 4940x900x1500 mm |

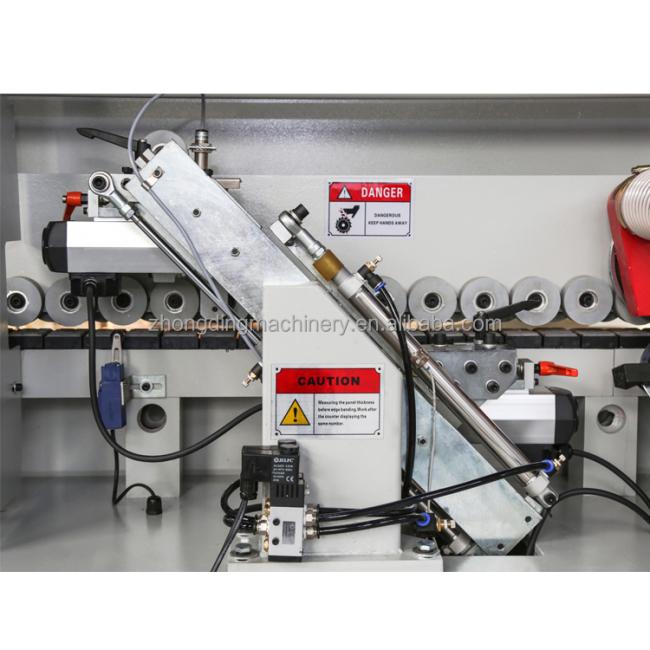

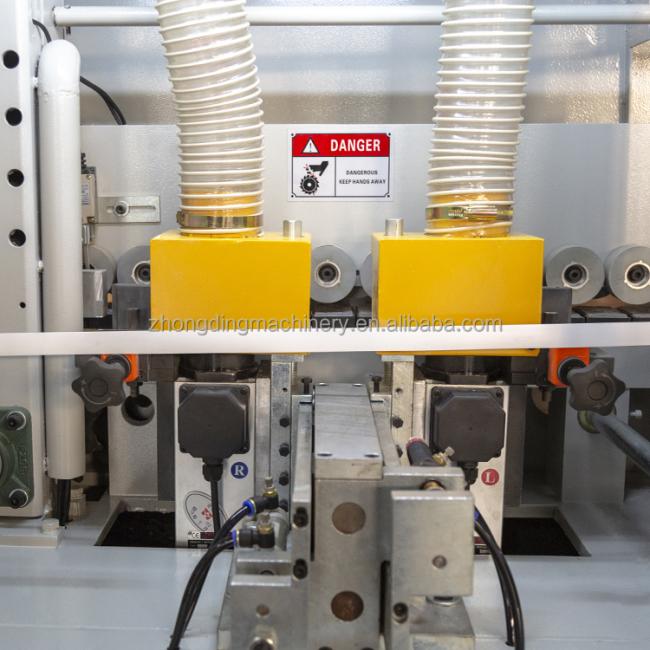

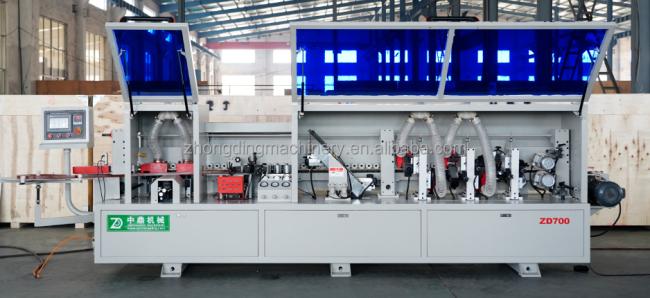

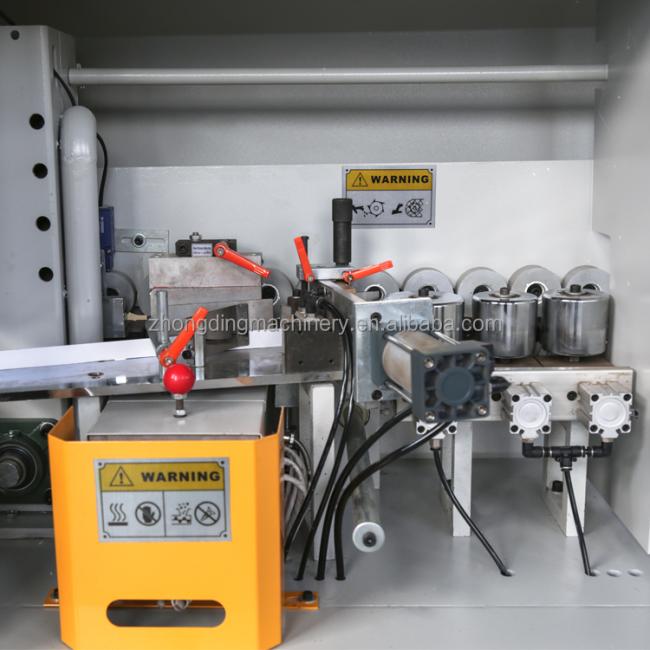

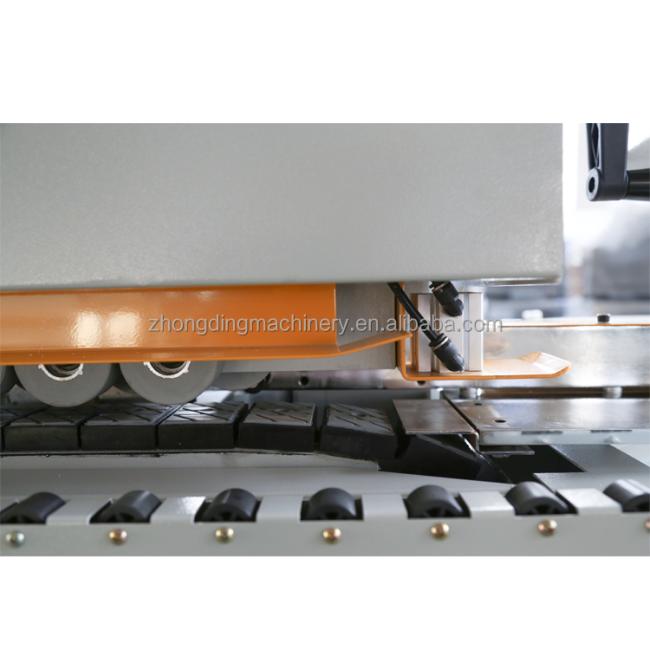

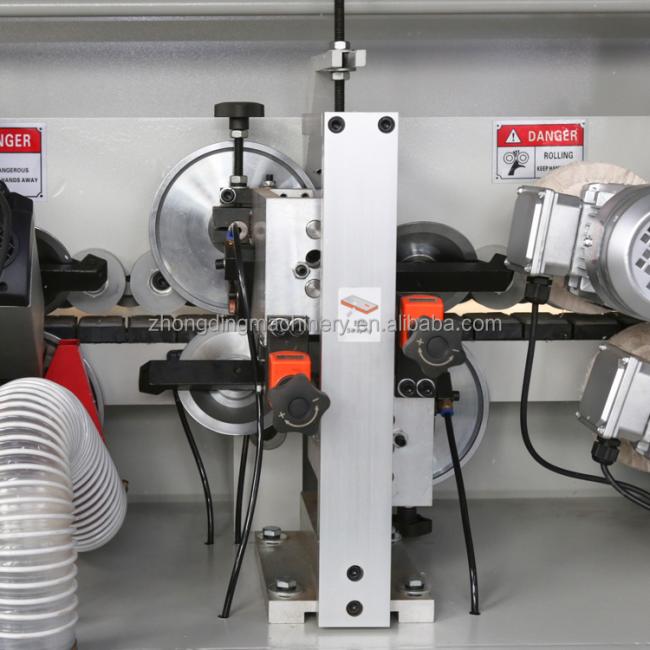

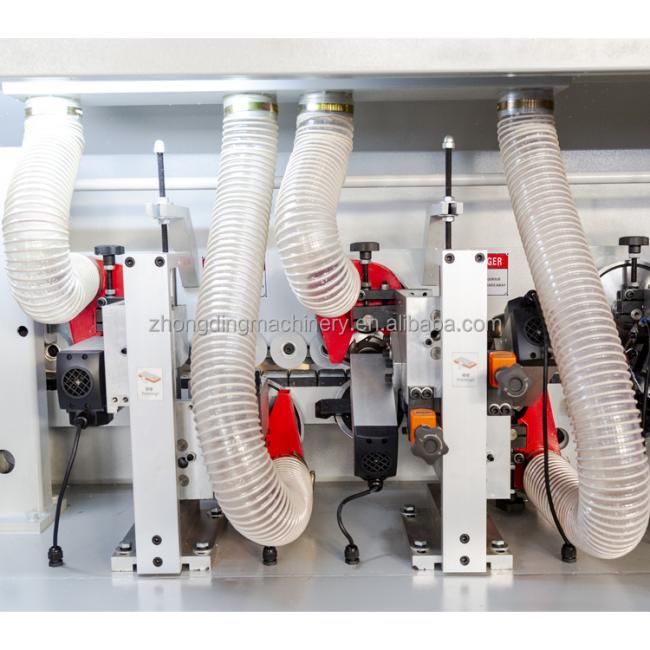

PRODUCTION PICTURES
SUCCESSFUL CASES
PACKAGE AND DELIVERY
MORE INFORMATION PLEASE CONTACT
