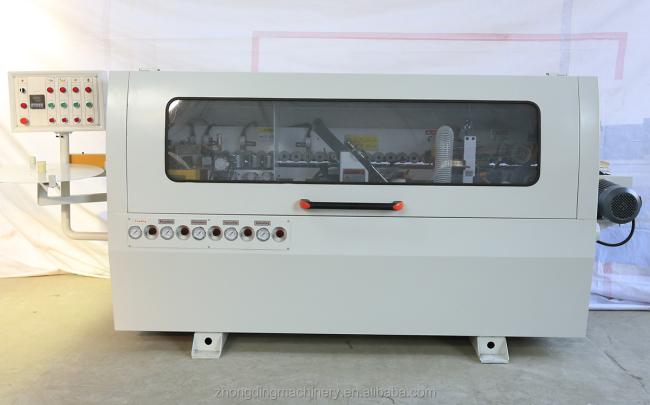

Wooden Edge Banding Machine Edge Banding Machine for Woodworking
Price:
$3,800.00/sets 1-4 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Zhongding
Product Description
Product Description
Specification
Model | ZD4RB |
Banding tape thickness | 0.4-3 mm |
Banding tape width | 10-60 mm |
Workpiece thickness | 10-60 mm |
Workpiece length | >=100 mm |
Workpiece width | >=50 mm |
Heating power | 1.5 KW |
Feeding motor power | 2.2 KW |
Glue spreading motor power | 0.37kw |
End trimming motor power | 0.55kw*2 |
Fine trimming motor power | 0.75kw*2 |
Polishing motor power | 0.18kw*2 |
Feeding speed | 13m/min |
Ｗorking pressure | 0.7MPa |

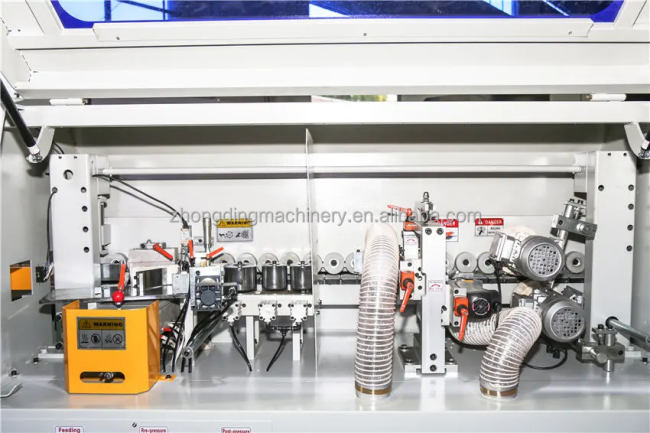

PRODUCT DETAILS
Gluing function
The gluing mechanism adopt a special structure to gelatinize the plates and costing material uniformly, ensure a more

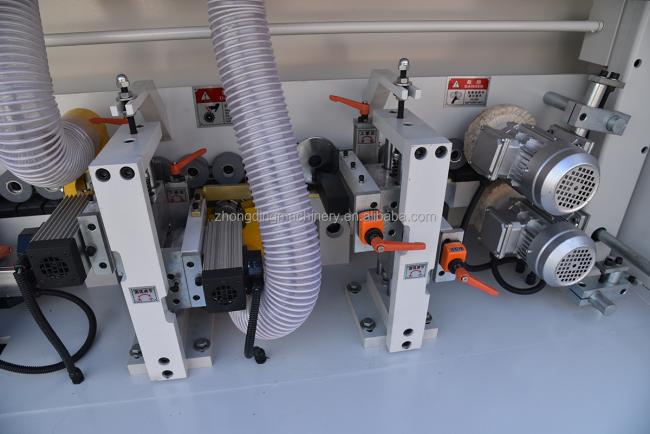

Fine trimming function
Fine trimming mechanism is to trim the Radian for the edge of band, to make it smooth and beautiful.
Scraping function
Scraping unit for a perfect finishing of the applied edge. Eliminate wavy lines in trimming.

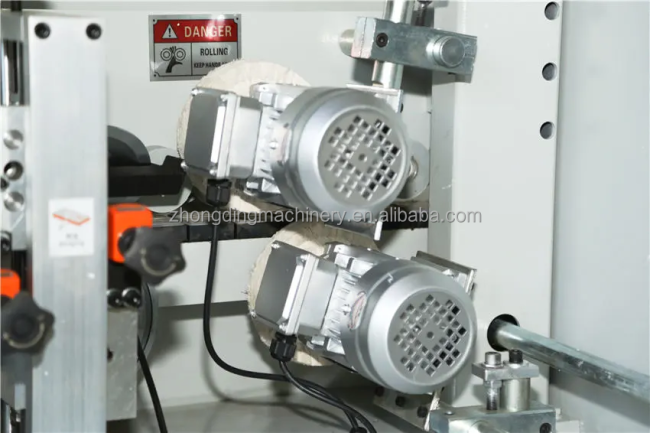

Buffing/Polishing function
The buffing device adopts the board processed by cotton polishing wheel, by end polishing to make a more clean and smooth surface.
COMPANY PROFILE
Qingdao Zhongding Machinery Co.,Ltd
Qingdao Zhongding Machinery Co,.Ltd, is a leading company which is specializing in manufacturing and exporting woodworking machines. Our company has professional technology, full range of testing lines and pipelining, and four professional production lines of woodworking machine.
Our main products include Precise panel saw, Edge banding machine, Multiple Drilling machine, Hot press machine, cold press machine, which had been exported to a lots of countries and regions, such as European, Southeast Asia, North America, Russia, Mid East and Australia.
FACTORY PICTURES
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q: Do you offer installation?
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request.
Q：Where can we get replacement parts? Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
Q：What technical support do you offer? 1. Technical support by phone, email or WhatsApp/Skype around the clock. 2. Friendly English version manual and operation video. 3. Engineer available to service machinery overseas.
Q：Can you customized the machine? Our machines can be customized made according to buyers’ request. Q：What other machines do you offer? We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like Edge banding machine,Sanding machine, CNC router, Drilling machine, Saw machine can be provided as well.
