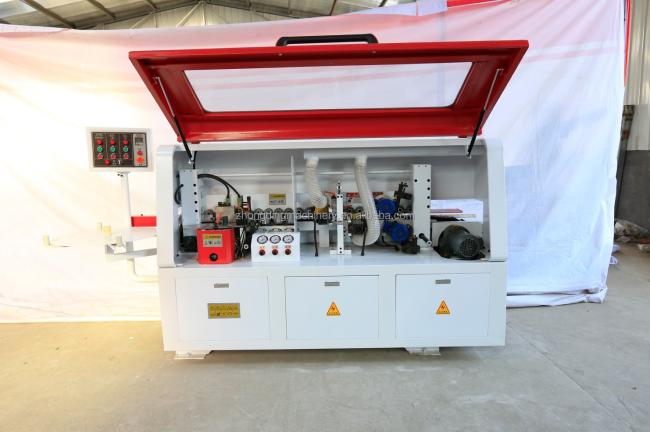

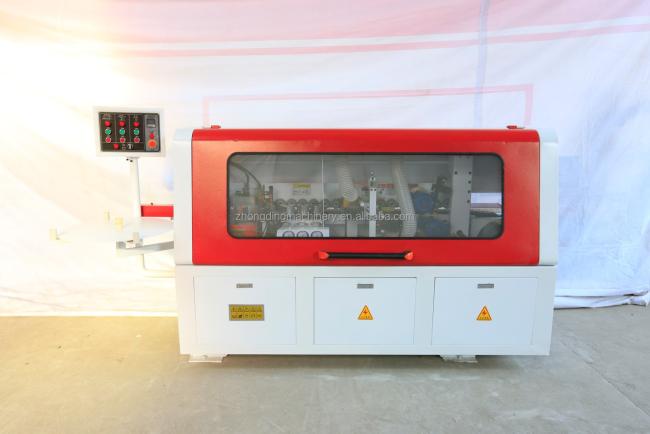

Semi Automatic Edge Banding Machine Edge Bander
Price:
$3,500.00/sets 1-1 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
ZD
Product Description
WHY CHOOSE US?
PRODUCT CONFIGURATION
1. The electrical components and motors are famous brands, different from others.
2. The edge banding machine body has been improved, and there is no height difference between sections, the machine runs more smoothly and have a longer service life.
3. The test time of our edge banding machine and the length of the edge band used during testing are twice that of other factories. To ensure the best performance of each edge banding machine.
4. The one-time success rate of edge banding is 10% higher than others.
Banding tape thickness | 0.4-3 mm |
Banding tape width | 10-60 mm |
Work piece thickness | 10-60 mm |
Work piece length | >=100 mm |
Heating power | 0.75 KW |
Feeding motor power | 0.75 KW |
Glue spreading power | 0.37 KW |
Fine trimming power | 0.75 KW x 2 |
Polishing motor power | 0.18 KW x 2 |
Feeding speed | 13 m/min |
Air pressure | 0.7 Mpa |
Machine size | 2930*830*1460mm |
This is very important:
We use large aluminum beam, other factories just use a metal board. The aluminum beam is a very important part of the edge banding machine, all the working parts are hung on this aluminum beam, if just a metal board, the machine will not work stably very soon.
PACKAGE AND DELIVERY
The edge banding machine body is protected by film first.
After film protect, the edge banding machine body is packed by plywood box.Each corner of the box is reinforced with angle iron, and the box itself is wrapped with steel straps to ensure safety.
The packed edge banding machines are very safe during transportation.
If the customer does not need plywood box packaging, we will protect the edge banding machine with a protective film and reinforce it when loading the container to ensure the safety of the machine.
COMPANY PROFILE
Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years,8000 square meter factory space, 5 R&D staff, 30 workers, we have served more than 60 countries 3000 clients,We aim to supply a one-stop solution for the small to the middle furniture workshop. We will provide the best solution to balance your budget and demand.We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice.
Our products mainly include Precise Panel Saw, Edge Banding Machine, CNC router, Press Machine, Sanding machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.We have established complete sales system.Our company has got ISO9001 international system certificate and CE security certificate.
Our products mainly include Precise Panel Saw, Edge Banding Machine, CNC router, Press Machine, Sanding machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.We have established complete sales system.Our company has got ISO9001 international system certificate and CE security certificate.
RELATED PRODUCTS
CERTIFICATES AND PATENTS
We have ISO and CE certificates of our factory and woodworking machines. We produce in strict accordance with the requirements of the ISO system, and all woodworking machines meet CE standards.
We are a high-tech enterprise in the woodworking machinery industry. We have our own R&D team, the above is our high-tech enterprise certificate and patent certificates.
SUCCESSFUL CASES
MORE INFORMATION PLEASE CONTACT
