High Efficiency Edge Banding Machine Wood pvc Plywood Edgebander Machine cabinet Automatic Edge Banding Machine
Price:
$8,900.00/sets 1-4 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
ZD
Product Description

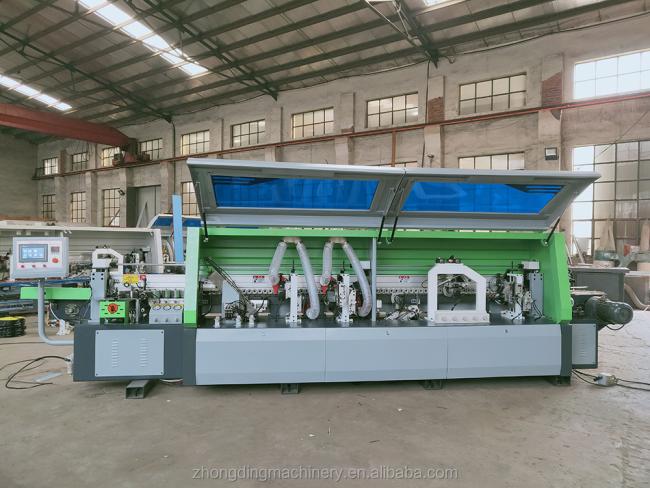

MACHINE OVERVIEW
PRODUCT DETAILS
Premilling
The pre-milling device uses double milling cutters to modify the ripple marks caused by the cutting board saw processing to achieve a better edge banding effect.
The glue pot adopts imported special ball bearing and high hardness and super wear-resistant material glue box, the glue thickness can be controlled at will.
End trimming
The end trimming device moves through precise linear guides, adopts automatic profiling and high-frequency electrode rapid cutting mechanisms to ensure that the cut surface is flat and smooth.
Rough trimming / Fine trimming
Rough and fine trimming devices adopt the structure of automatic profiling and high-frequency high-speed motor.
Scraping
Updated scraping mechanism with bigger unit and big copy wheel and V shape blade to get better effect.
Buffing/Polishing
The polishing device uses a cotton polishing wheel to clean the processed plate. The edge-sealing end surface is smoother through polishing.
WHY CHOOSE US?
Specification
Item | Edge Banding Machine | Panel thickness | 10-60mm |
Working pressure | 0.7MPa | Panel length | Min.100mm |
Total power | 8.23kw | Panel width | Min.50mm |
Feeding speed | 13m/min | Edge thickness | 0.4-3mm |
Overall size | 4300* 900* 1500 mm | Weight | 2000kg |
PACKAGE AND DELIVERY
Package
1.LCL SHIPMENT: Use plastic foam protect ,then ply wooden case package.
2.FCL: If the equipment enough package with 20"or 40" container , will use plastic foam package and wooden pallet.
2.FCL: If the equipment enough package with 20"or 40" container , will use plastic foam package and wooden pallet.
Shipment
1. FOB,CNF, CIF can be accepted.
2. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
2. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
FAQ
Q: Do you offer installation?
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request.
Q：Where can we get replacement parts? Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
Q：What technical support do you offer? 1. Technical support by phone, email or WhatsApp/Skype around the clock. 2. Friendly English version manual and operation video. 3. Engineer available to service machinery overseas.
Q：Can you customized the machine? Our machines can be customized made according to buyers’ request. Q：What other machines do you offer? We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like Edge banding machine,Sanding machine, CNC router, Drilling machine, Saw machine can be provided as well.
