Edgebander Machine Woodworking Edge Banding Machine Automatic High Precision PVC Edge Banding Machine
Price:
$12,000.00/sets 1-4 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
ZD
Product Description
MACHINE OVERVIEW
High quality Edge banding machine with corner trimming
PRODUCT DETAILS

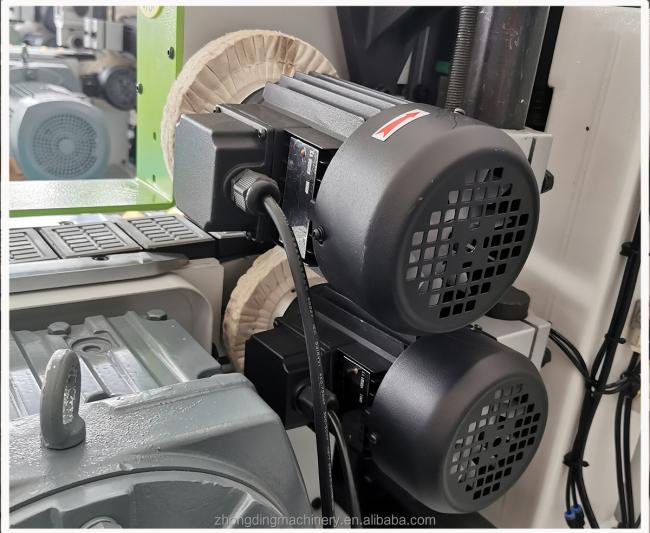

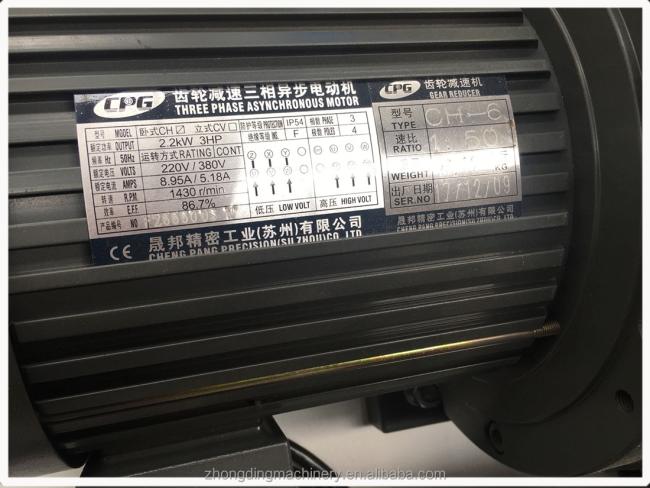

Motor
CPG Motor, fast transmission speed, large torque, no slippage.
Glue
Nonstick material glue pot, easy to clean.
Board Preheating part , better glue effect.
End trimming
Auxiliary pinch roller for narrow board.
Stable edge banding even for 4cm width panel.
Rough/fine trimming
Mechanism, full automatic adjustment, adopts automatic tracking and high frequency motor to ensure the trimming plates smoothly.
Scrapping
Updated scraping mechanism with bigger unit and big copy wheel and V shape blade to get better effect.
Buffing/Polishing
The polishing device uses a cotton polishing wheel to clean the processed plate.
Corner trimming
Corner rounding mechanism with two high precision tracking motors to ensure high tracking speed and high trimming speed.
Touch screen
PLC touch screen
Specification
Working Pressure | 0.6MPa |
Total power | 13kw |
Feeding speed | 12-20m/min |
Electric lifting | 0.37kw/pc |
Panel thickness | 10-60mm |
Panel length | Min. 150mm |
Panel Width | Min.60mm |
Edge thickness | 0.4-3mm |
Overall size | 5670*900*1590mm |
WHY CHOOSE US?
PACKAGE AND DELIVERY
Package
1.LCL SHIPMENT: Use plastic foam protect ,then ply wooden case package.
2.FCL: If the equipment enough package with 20"or 40" container , will use plastic foam package and wooden pallet.
2.FCL: If the equipment enough package with 20"or 40" container , will use plastic foam package and wooden pallet.
Shipment
1. FOB,CNF, CIF can be accepted.
2. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
2. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
FAQ
Q:Are you a manufacturer?
Yes, 15 years manufacturing experience.
Q: Do you offer installation?
Yes, 15 years manufacturing experience.
Q: Do you offer installation?
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request.
Q:What is language of the operation system?
Any language as you request.
Q：Where can we get replacement parts?
Q:What is language of the operation system?
Any language as you request.
Q：Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
Q：What technical support do you offer?
Q：What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
Q：Can you customized the machine?
Q：Can you customized the machine?
Our machines can be customized made according to buyers’ request.
Q：What other machines do you offer?
Q：What other machines do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like Edge banding machine,Sanding machine, CNC router, Drilling machine, Saw machine can be provided as well.
