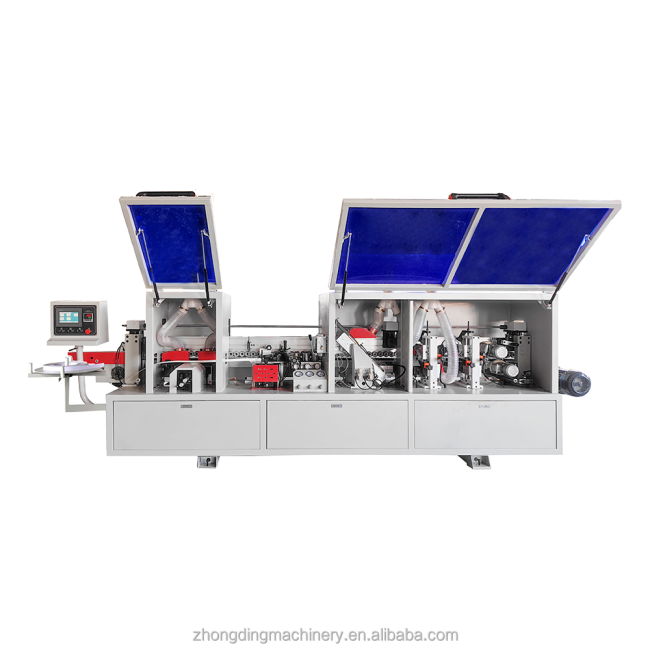

Automatic Edge Banding Machine Edge Bander fine trimming end trimming With PUR Glue Pot For Cabinet and Door
Price:
$6,400.00/sets 1-14 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
ZD
Product Description
Product Description
Six functions:
Glue → End trimming → Fine trimming → Rough trimming → Scrapping → Buffing
Edge banding machine ZD6R main features:
①All fuselage and sheet metal cover are laser cutting,machine surface is flatness,no
indention and no burr,high dimensional accuracy,all machine accessories are
processed with imported CNC,durable and work precised.
②Standard parts,using international 12.9 standard(highest standard in domestic
business).Operated by pneumatic wrench which fixs the equipment,no loosen.
③Fuselage made by 18mm national standard high stength steel plate,exclusive
welding skill,box-type fuselage structure,it is not easy to deform after high
temperature quenching. Once processing forming of heavy gantry processing center.
Higher flatness.
④Part sleeve is once molding by imported processing center,accurancy within
0.001mm,high stability,trimming once molding,no secondary manual reapir.
indention and no burr,high dimensional accuracy,all machine accessories are
processed with imported CNC,durable and work precised.
②Standard parts,using international 12.9 standard(highest standard in domestic
business).Operated by pneumatic wrench which fixs the equipment,no loosen.
③Fuselage made by 18mm national standard high stength steel plate,exclusive
welding skill,box-type fuselage structure,it is not easy to deform after high
temperature quenching. Once processing forming of heavy gantry processing center.
Higher flatness.
④Part sleeve is once molding by imported processing center,accurancy within
0.001mm,high stability,trimming once molding,no secondary manual reapir.
PRODUCT DETAILS
Premilling(optional)
The pre-milling device uses double milling cutters to modify the ripple marks caused by the cutting board saw processing to achieve a better edge banding effect.
Glue
The glue pot adopts imported special ball bearing and high hardness and super wear-resistant material glue box, the glue thickness can be controlled at will.
End trimming
The end trimming device moves through precise linear guides, adopts automatic profiling and high-frequency electrode rapid cutting mechanisms to ensure that the cut surface is flat and smooth.
Rough trimming / Fine trimming
Rough and fine trimming devices adopt the structure of automatic profiling and high-frequency high-speed motor.
Scraping
Updated scraping mechanism with bigger unit and big copy wheel and V shape blade to get better effect.
Buffing/Polishing
The polishing device uses a cotton polishing wheel to clean the processed plate. The edge-sealing end surface is smoother through polishing.
Corner trimming(optional)
Corner rounding mechanism with two high precision tracking motors to ensure high tracking speed and high
Specification
Model | ZD6R |
Banding tape thickness | 0.4-3 mm |
Banding tape width | 10-60 mm |
Workpiece thickness | 10-60 mm |
Workpiece length | >=100 mm |
Workpiece width | >=50 mm |
Heating power | 1.5 KW |
Feeding motor power | 2.2 KW |
Ｗorking pressure | 0.8MPa |
Feeding speed | 10-23 m/min |
WHY CHOOSE US?
PACKAGE AND DELIVERY
Package
1.LCL SHIPMENT: Use plastic foam protect ,then ply wooden case package.
2.FCL: If the equipment enough package with 20"or 40" container , will use plastic foam package and wooden pallet.
2.FCL: If the equipment enough package with 20"or 40" container , will use plastic foam package and wooden pallet.
Shipment
1. FOB,CNF, CIF can be accepted.
2. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
2. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
FAQ
Q: Do you offer installation?
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request.
Q：Where can we get replacement parts? Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
Q：What technical support do you offer? 1. Technical support by phone, email or WhatsApp/Skype around the clock. 2. Friendly English version manual and operation video. 3. Engineer available to service machinery overseas.
Q：Can you customized the machine? Our machines can be customized made according to buyers’ request. Q：What other machines do you offer? We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like Edge banding machine,Sanding machine, CNC router, Drilling machine, Saw machine can be provided as well.
