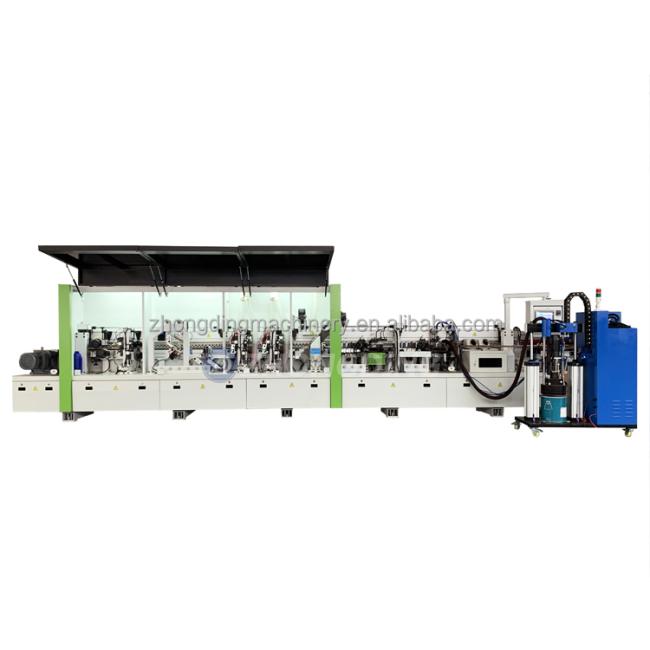

Pre-milling Corner Rounding Full Automatic Edge Banding Machine For Furniture

Price Negotiable

Price: $16,600.00/sets >=1 sets

MOQ: Negotiable

Delivery Time: Negotiable

Brand: Zhongding

Product Description

Pre-milling unit

Pre-milling equipment with double trimming blades works on the waved effect that is caused by sliding table saw, in order to get better edge banding effect.

End trimming

The end trimming system is used to cut off the cutting components of the front and rear edge tape. The end trimming device moves through precise linear guides, adopts automatic profiling and high-frequency electrode rapid cutting mechanisms to ensure that the cut surface is flat and smooth.

Rough and fine trimming

devices are used for trimming and processing the excess edge banding material on the upper and lower parts of the sheet edge banding. It adopts the structure of automatic profiling and high-frequency high-speed motor, etc. To ensure the smoothness of the upper and lower parts of the trimmed board edge.

Corner rounding unit

Corner rounding device aims to make the board corner more smooth and aesthetic.

Sloting/grooving

The grooving device is used for direct grooving of side panels, bottom panels, etc., which reduces the process of panel saws and is more convenient and quick.

Gluing

The glue pot adopts imported special ball bearing and high hardness and super wear-resistant material glue box, the glue lifting shaft is patented design, CNC processing, to ensure the glue output, uniform daub, the glue surface hit 99.999%, the glue thickness can be controlled at will.

Buffing unit

The buffing component polishes the edge and removes the sol residue on the workpiece. The polishing device uses a cotton polishing wheel to clean the processed plate. The edge-sealing end surface is smoother through polishing. The polishing component used for the upper surface of the workpiece is fixed on the workpiece.

Cleaning

After the edge banding of the board, the excess glue is disposed of, so that the edge banding effect of the board is more beautiful.

Specification

Model		ZD450A	ZD450A	10-60mm
Function			Pre-milling, Gluing, End trimming, Rough trimming, Fine trimming, Corner rounding, Scraping, Buffing.
Banding tape thickness	0.4-3mm	Panel length	Min.100mm
Banding tape width	12-65mm	Panel width	Min.50mm
Heating power	1.8kw	Feeding motor power	3.7kw
Pre-milling motor power	2.2kw*2	Glue spreading motor power	0.75kw
End trimming motor power	0.5kw*2	Rough trimming motor power	0.75kw*2
Fine trimming motor power	0.75kw*2	Corner rounding motor power	0.5kw*2
Polishing motor power	0.37kw*2	Air pressure	0.8Mpa
Feeding speed	10-23m/min	Weight	2800kg
Overall size	67008501580mm	MOQ	1 SET

Optional accessories

1)Add glue pot

2)slotting function

With its advanced technology and precise control system, the ZD450A ensures seamless edge banding every time. Say goodbye to uneven edges and tedious manual work, and hello to fast and accurate results. Designed with convenience in mind, this machine is easy to operate and requires minimal maintenance. Its intuitive interface and automated features make it the perfect choice for businesses looking to streamline their edge banding process. Not only is the ZD450A efficient, but it's also highly versatile. It can handle a wide range of materials, from solid wood to PVC, making it the perfect fit for a variety of industries, including woodworking, furniture manufacturing, and more. Investing in the ZD450A means investing in your business's success. With its precise and efficient performance, you can increase productivity, improve quality, and ultimately, boost your bottom line. Upgrade your edge banding process with the ZD450A Fully Automatic Edge Banding Machine. Order yours today and experience the difference firsthand!

Application

Suitable for high-gloss board, acrylic board, paint-free board, ecological board, composite solid wood board, particle board,density board, cork edge banding, pvc edge banding, acrylic edge banding.

Packing & Delivery
