High Productivity Straight And 45 Degree Edge Banding Machine 28kw
Price:
$33,000.00/sets 1-1 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
ZHONGDING
Product Description
WHY CHOOSE US?
CUSTOMER REVIEWS
PRODUCT CONFIGURATION
1. The electrical components and motors are famous brands, different from others.
2. The edge banding machine body has been improved, and there is no height difference between sections, the machine runs more smoothly and have a longer service life.
3. The test time of our edge banding machine and the length of the edge band used during testing are twice that of other factories. To ensure the best performance of each edge banding machine.
4. The one-time success rate of edge banding is 10% higher than others.
Enchapadoras de Canto Automáticas
1. Los componentes eléctricos y motores son marcas famosas, diferentes a otras.E 2. El cuerpo de la máquina de bandas de borde se ha mejorado y no hay diferencia de altura entre las secciones, la máquina funciona más suavemente y tiene una vida útil más larga. 3. El tiempo de prueba de nuestra máquina de aplicación de bandas para bordes y la longitud de la banda para bordes utilizada durante la prueba es el doble que en otras fábricas. Para garantizar el mejor rendimiento de cada máquina de aplicación de bandas de borde. 4. La tasa de éxito de una sola vez de las bandas de borde es un 10% más alta que otras.
|
Specification
|
ZD450ZX
|
|
Workpiece Thickness for straight
|
10-60mm
|
|
Workpiece Thickness for bevel
|
15-25mm
|
|
Edge Band Tape Thickness for straight
|
0.4-3mm
|
|
Edge Band Tape Thickness for bevel
|
0.8-1.5mm
|
|
Workpiece Width for straight
|
≥50mm
|
|
Workpiece Width for bevel
|
≥70mm
|
|
Panel Length
|
Min.80mm
|
|
Feeding Speed for bevel
|
15m/min
|
|
Feeding Speed for traight
|
15-23m/min
|
|
Bevel angle
|
45 °
|
|
Total Motor
|
28kw
|
|
Air Pressure
|
0.65Mpa
|
|
Overall Dimension
|
10000*950*1890mm
|
|
Weight
|
3500kg
|

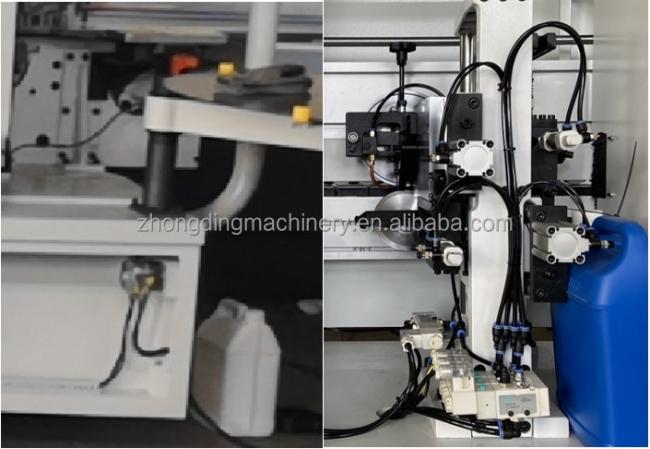

Separating agent
Cleaning agent
To make the board surface very clean after processing.
Cleaning agent
To make the board surface very clean after processing.

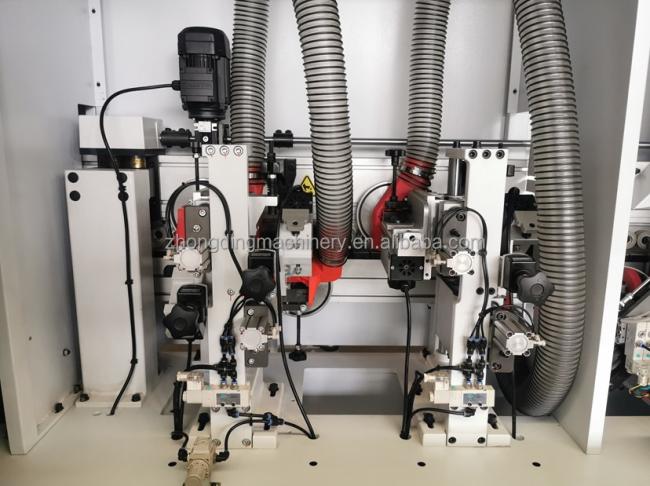

Pre-milling unit for straight edge: Make sure the surface of panel clean and smooth to get better edging effect
there are two counter rotating shaper cutters, there are independent control of air cylinders, allows milling of front edge and back edge without tear out
there are two counter rotating shaper cutters, there are independent control of air cylinders, allows milling of front edge and back edge without tear out
Pre-milling unit for bevel edge: 2 blades. One saw blade and one diamond crushing knife to ensure fine processing effect.

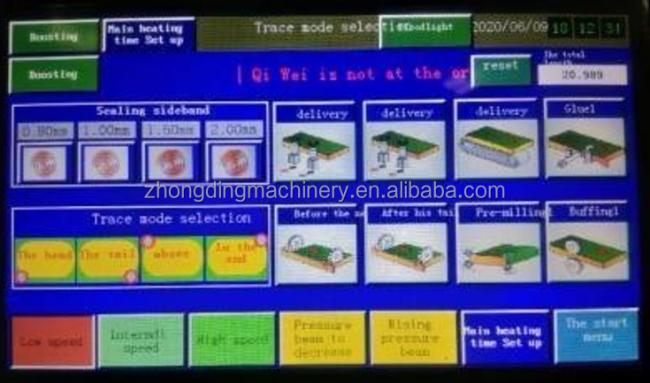

Control panel: TAIWAN Shilin brand touch screen control panel 4 sizes edge band thickness options on the control panel
Board preheating to get a better gluing effect.

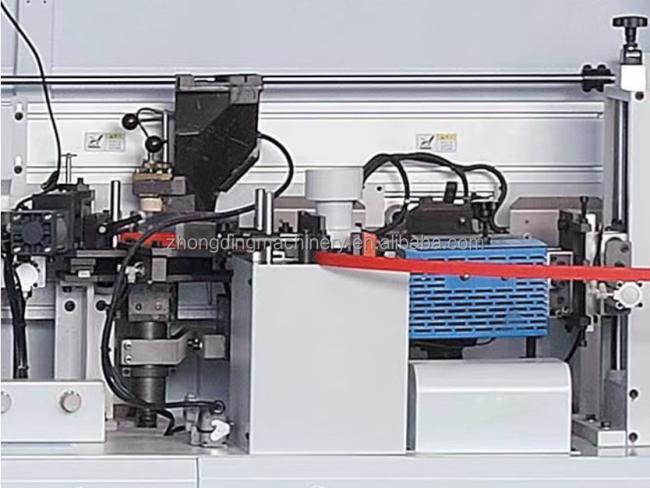

Gluing system: Gluing1 for bevel, upper glue pot gluing 2 for straight edge.
Nonstick material glue pot, easy to clean without residue.
Nonstick material glue pot, easy to clean without residue.
Tape press 1 for straight edge, tape press 2 for straight and bevel edge
Irregular cylindrical pinch rollers can entirely press the band firmly to the panel. The press rollers are independent pneumatic
controls
Irregular cylindrical pinch rollers can entirely press the band firmly to the panel. The press rollers are independent pneumatic
controls

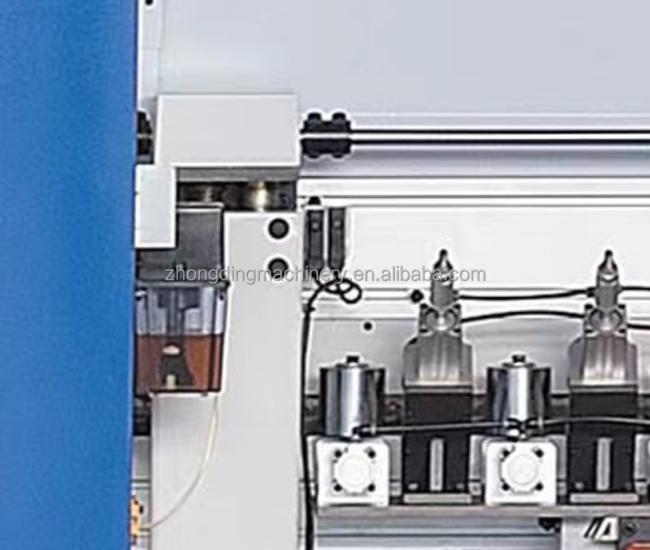

Automatic lubrication system, it is centralize lubrication, can send the oil through the line to the entire machine
Dust proof plate setting all along the whole edge banding process can prevent the board from dirt.

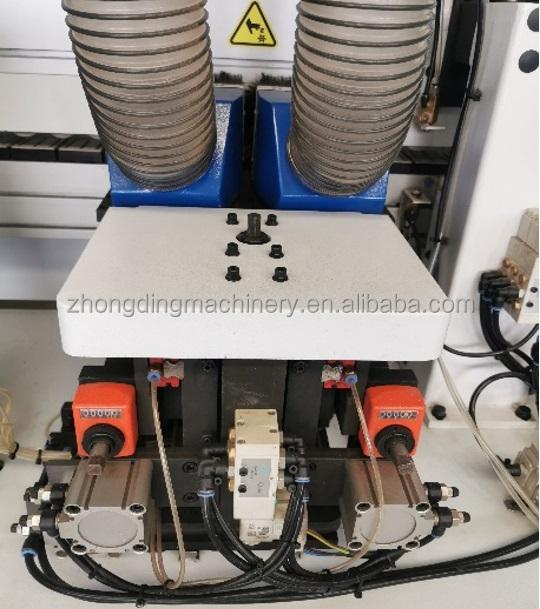

End trim system is used to trim the front and rear edges of panel. End trim mounted to heavy casting, to make sure it is stable and accurate. it has 2 molds, independent high frequency motors. With Japanese SMC brand air cylinder and throttle valve, it can work with a stable pressure and a long-life span. No noise when working.
Fine trim: The use of six-edge knife for fine trimming leads to a smoother cutting surface. With the design of linear guide way,
it can stably work without abrasion. Also, not easy to get stuck.
it can stably work without abrasion. Also, not easy to get stuck.
Corner rounding unit to round the 4 corners, is equipped with 2 HF motors, to get a smoother corner effect, usually work for 2mm thickness edging tape.
Scraping unit: it is used to scrape the extra glue, to make the edges smoother. It is equipped with dust collecting pipe.

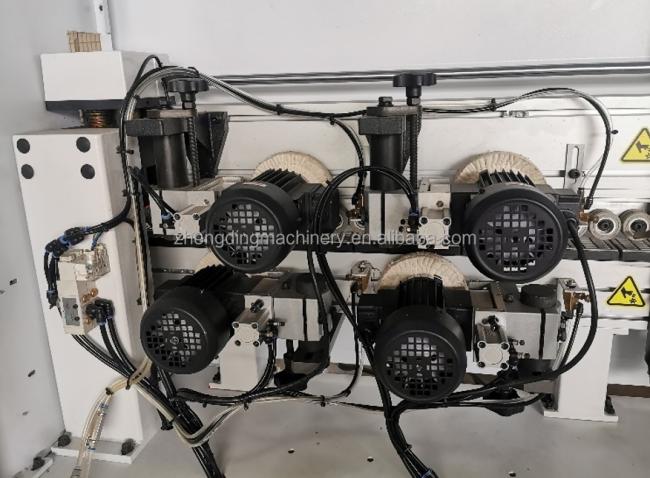

Buffing unit: There are 2 cloth wheel to polish the edging to make it more smoothly.
Compressed Air tank to ensure the working pressure, to keep the working more stably.
PACKAGE AND DELIVERY
The edge banding machine body is protected by film first.
After film protect, the edge banding machine body is packed by plywood box.Each corner of the box is reinforced with angle iron, and the box itself is wrapped with steel straps to ensure safety.
The packed edge banding machines are very safe during transportation.
If the customer does not need plywood box packaging, we will protect the edge banding machine with a protective film and reinforce it when loading the container to ensure the safety of the machine.
