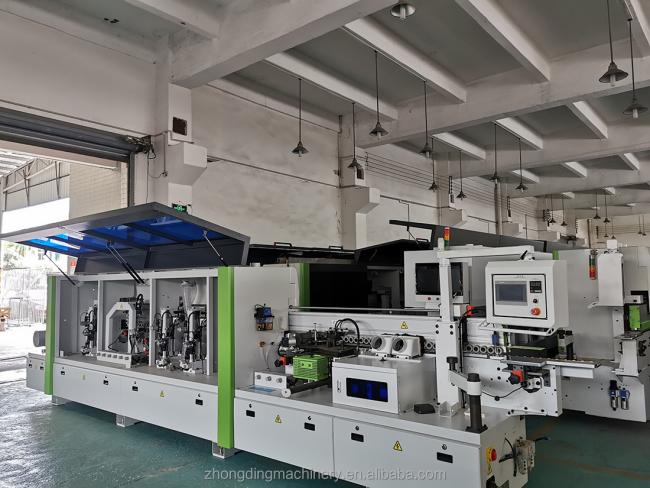

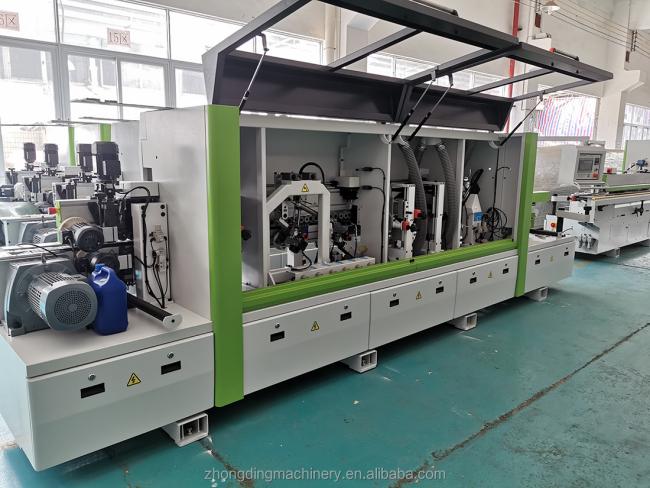

Straight Woodworking Edge Banding Machine 20m/Min Fully Automatic
Price:
$17,100.00/sets >=1 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
QDZD
Product Description
Product Overview
EDGE BANDING MACHINE
Standard direction:
Glue--Staight pressure welt--End trimming--Rough trimming--Pneumatic fine trimming--Pneumatic scarping--Buffing
1: New desIgn for the band clamping device,perfectly preventing the band from losing its track.
2:Four irregular cylindrical pinch roller can entirely press the band firmly to the board.
3:Non adjustment of the cutters of fine trimming & scraping units, pneumaticaly position,higher precison and higher productivity.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
|
Item
|
Data
|
|
Working Pressure
|
0.6 Mpa
|
|
Total Power
|
16.5 Kw
|
|
Feeding Speed
|
12-20 m/min
|
|
Electric Lifting
|
0.37 Kw/pc
|
|
Panel Thickness
|
10-60 mm
|
|
Panel Length
|
Min. 150 mm
|
|
Panel Width
|
Min. 60mm
|
|
Edge Thickness
|
0.4-3 mm
|
|
Overall Size
|
6560*900*1590 mm
|
Successful Project
FAQ
1.What machine can you supply?
Our main products are precision panel saw, edge banding machine, cnc router machine.
2.What is the payment term?
T/T 30% in advance and balance before shipment
3.What is the delivery time?
Normal 380V voltage is 30 days, other voltage is 35 days.
4.What is the guarantee?
12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you
will get spare part for free. Out of 12 months, you will get spare parts at cost price.
You will also get technical support and service all the lifetime.
5.What is the technical support?
1). Technical support by phone, email or MSN/Skype around the clock
2). Friendly English version manual
3). Engineer available to service machinery overseas
6.What is the after sales services?
you will be able to get free training advice towards our machine in our factory.
You will also get free suggestion and consultation, technical support and service by email/fax/tel etc.
We can also send our engineer to your factory, but need you take charge of all travelling cost and labour cost.
Our main products are precision panel saw, edge banding machine, cnc router machine.
2.What is the payment term?
T/T 30% in advance and balance before shipment
3.What is the delivery time?
Normal 380V voltage is 30 days, other voltage is 35 days.
4.What is the guarantee?
12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you
will get spare part for free. Out of 12 months, you will get spare parts at cost price.
You will also get technical support and service all the lifetime.
5.What is the technical support?
1). Technical support by phone, email or MSN/Skype around the clock
2). Friendly English version manual
3). Engineer available to service machinery overseas
6.What is the after sales services?
you will be able to get free training advice towards our machine in our factory.
You will also get free suggestion and consultation, technical support and service by email/fax/tel etc.
We can also send our engineer to your factory, but need you take charge of all travelling cost and labour cost.
