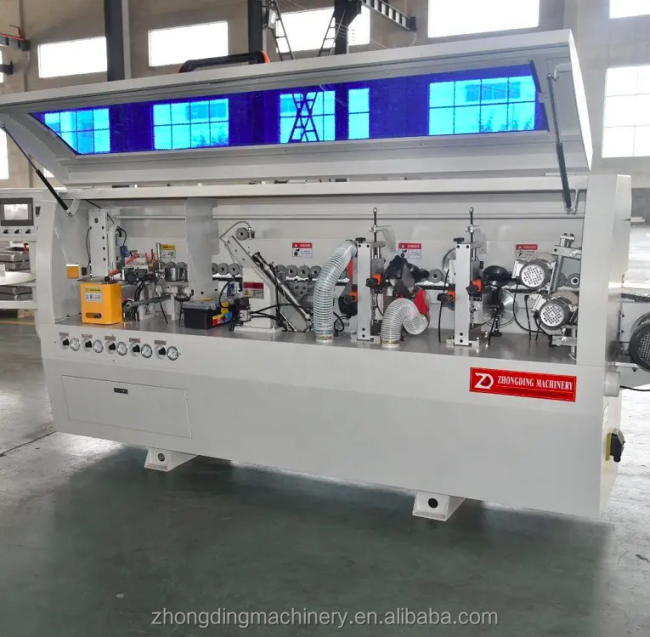

Fully Automatic Edge Bandin Wood Board PUR PVC Furniture Edge Bander Machine
Price:
$5,800.00/sets 1-9 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
ZD
Product Description
Product Description
Woodworking Automatic Edge Banding Machine with five functions
Highlight:
①All fuselage and sheet metal cover are laser cutting, machine surface is flatness, no indention and no burr, high dimensional accuracy, all machine accessories are processed with imported CNC, durable and work precised.
②Standard parts, using international 12.9 standard(highest standard in domestic business). Operated by pneumatic wrench which fixes the equipment, no loosen.
③Fuselage made by 18mm national standard high strength steel plate, exclusive welding skill, box-type fuselage structure, it is not easy to deform after high temperature quenching. Once processing forming of heavy gantry processing center. Higher flatness.
④Part sleeve is once molding by imported processing center,accuracy within 0.001mm, high stability, trimming once molding, no secondary manual repair.
②Standard parts, using international 12.9 standard(highest standard in domestic business). Operated by pneumatic wrench which fixes the equipment, no loosen.
③Fuselage made by 18mm national standard high strength steel plate, exclusive welding skill, box-type fuselage structure, it is not easy to deform after high temperature quenching. Once processing forming of heavy gantry processing center. Higher flatness.
④Part sleeve is once molding by imported processing center,accuracy within 0.001mm, high stability, trimming once molding, no secondary manual repair.
PRODUCT DETAILS
Glue
The glue pot adopts imported special ball bearing and high hardness and super wear-resistant material glue box, the glue thickness can be controlled at will.
End trimming
The end trimming device moves through precise linear guides, adopts automatic profiling and high-frequency electrode rapid cutting mechanisms to ensure that the cut surface is flat and smooth.
Fine trimming
Fine trimming devices adopt the structure of automatic profiling and high-frequency high-speed motor.
Scraping
Updated scraping mechanism with bigger unit and big copy wheel and V shape blade to get better effect.
Buffing/Polishing
The polishing device uses a cotton polishing wheel to clean the processed plate. The edge-sealing end surface is smoother through polishing.
Motor
Taiwan CPG motor
Specification
|
Power sorce
|
380V/50Hz
|
|
min.Panel lenth
|
168mm
|
|
Band width
|
12-65mm
|
|
Feeding speed
|
6-22M/min
|
|
Feeding power
|
1.5kw
|
|
Machine size
|
4700*950*1750mm
|
|
Workpiece thickness
|
10-60mm
|
|
min.Panel width
|
68mm
|
|
Band thickness
|
0.4-15mm
|
|
Pneumatic pressure
|
0.7Mpa
|
|
Machine weigh
|
1500kgs
|
WHY CHOOSE US?
Qingdao Zhongding Machinery Co.,Ltd
Qingdao Zhongding Machinery Co,.Ltd is a leading company specializing in manufacturing and exporting woodworking machines. It is located by the beach side of the Yellow Sea and the Jiaozhou Gulf, which helps us build a compete sales system with convenient sea, land and air transportation.
Our products mainly include Precise Panel saw, Edge Banding Machine, Multiple Drilling Machine, Hot Press Machine,
Cold Press Machine,and other various woodworking machines, which have been exported to a lot of countries and regions, such as European, Southeast Asia, North America, Russia, Mid East and Australia.
At the same time, we have already got ISO9001 international system certificate and CE security certificate.
Our products mainly include Precise Panel saw, Edge Banding Machine, Multiple Drilling Machine, Hot Press Machine,
Cold Press Machine,and other various woodworking machines, which have been exported to a lot of countries and regions, such as European, Southeast Asia, North America, Russia, Mid East and Australia.
At the same time, we have already got ISO9001 international system certificate and CE security certificate.
PACKAGE AND DELIVERY
Package
1.LCL SHIPMENT: Use plastic foam protect ,then ply wooden case package.
2.FCL: If the equipment enough package with 20"or 40" container , will use plastic foam package and wooden pallet.
2.FCL: If the equipment enough package with 20"or 40" container , will use plastic foam package and wooden pallet.
Shipment
1. FOB,CNF, CIF can be accepted.
2. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
2. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
FAQ
Q: Do you offer installation?
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request.
Q:Where can we get replacement parts? Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
Q:What technical support do you offer? 1. Technical support by phone, email or WhatsApp/Skype around the clock. 2. Friendly English version manual and operation video. 3. Engineer available to service machinery overseas.
Q:Can you customized the machine? Our machines can be customized made according to buyers’ request. Q:What other machines do you offer? We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like Edge banding machine,Sanding machine, CNC router, Drilling machine, Saw machine can be provided as well.
