45/90 Degree Automatic Sliding Table Saw For Woodworking Cutting
Price:
$2,650.00/sets 1-14 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
ZD
Product Description
Product Description
PRODUCT DETAILS
Sliding Table Structure
Double Layer Sliding Table.
Push-pull is smoother and stronger.
Push-pull is smoother and stronger.

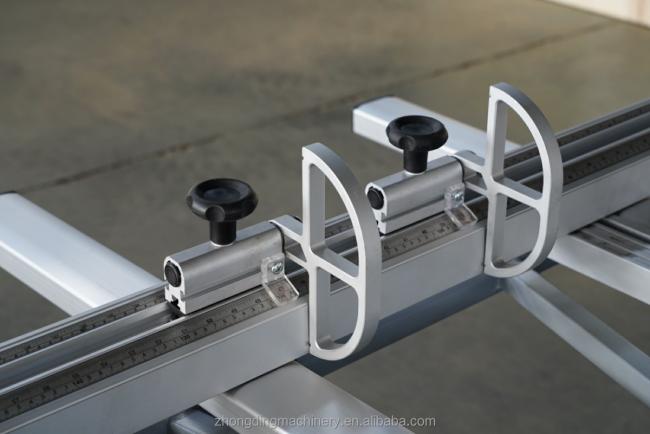

Crosscut Fence
Heavy Structure with two pieces larger clamp, the fence can be positioned both sides.
Sawing combination structure
Use high-standard motors, strong and powerful. Three speeds can be adjusted manually. The saw in assembly of this sliding table saw is designed to ensure precise sawing.
Pressing device
Assist the worker to press the wooden board on the sliding table. Keep the board stable.
Angle ruler
Heavier and more precise. It is 50% larger than the ordinary angle ruler.

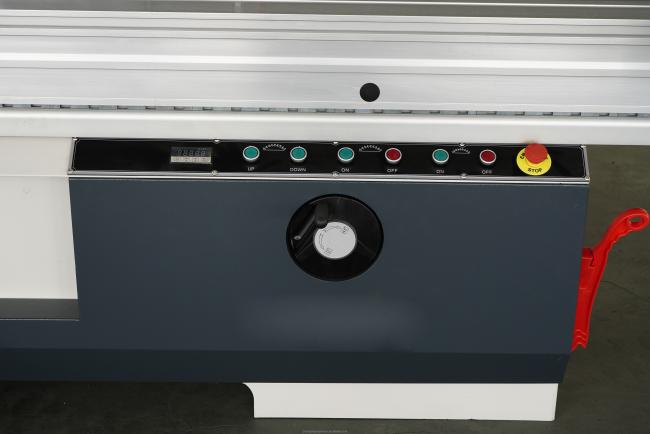

Control panel
Use high-quality buttons, easy to control and not easy to break down, accurate control of lift/tilt changes. One-key start-stop button.

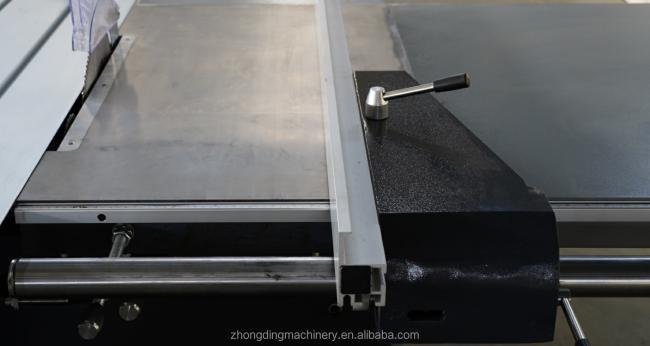

Rip Fence
Big rip rence with micro adjustment.
Standard Dust hood
It is convincing to use the big dust hood with fluid mechanics optimization structure .

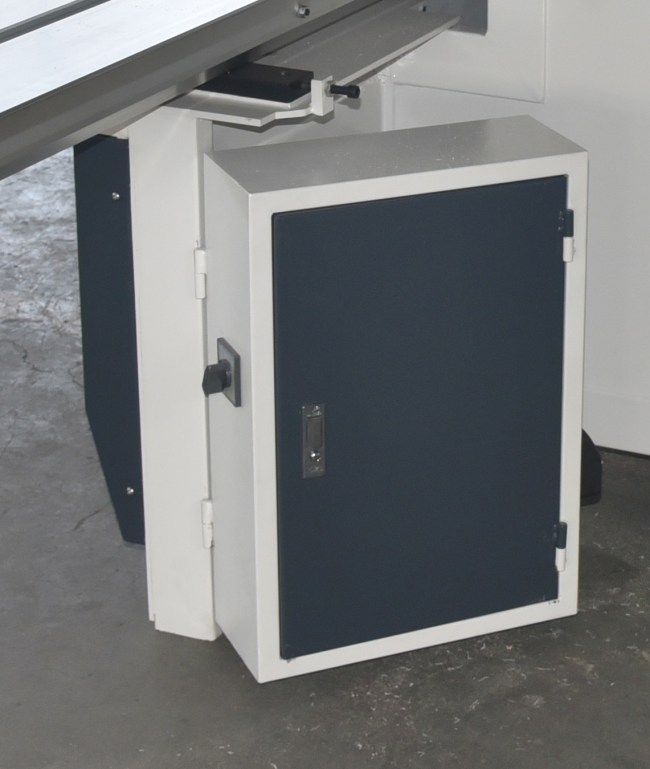

Electric Box
The independent electric box is dust proof and has a low power failure rate. High-quality electrical components, more sensitive
and has longer life.
and has longer life.
Specification
|
Model
|
ZDV8D
|
|
Dimension of sliding table
|
3200*388/395mm
|
|
Gross cut capacity
|
3200mm
|
|
Width of cut between saw blade and rip fence
|
1250mm
|
|
Tilting saw group
|
0-45°
|
|
Diameter of main saw blade
|
300mm
|
|
Speed of main saw spindle
|
4000/6000 r.p.m
|
|
Main saw motor power
|
5.5kw
|
|
Main spindle diameter
|
120mm
|
|
Speed of scoring saw spindle
|
8000 r.p.m
|
|
Scoring saw motor power
|
1.1kw
|
|
Scoring saw spindle diameter
|
20mm
|
|
Gross weight
|
850 kgs
|
|
Overall dimension
|
3250*3150*900m
|
WHY CHOOSE US?
PACKAGE AND DELIVERY
Package
1.LCL SHIPMENT: Use plastic foam protect ,then ply wooden case package.
2.FCL: If the equipment enough package with 20"or 40" container , will use plastic foam package and wooden pallet.
2.FCL: If the equipment enough package with 20"or 40" container , will use plastic foam package and wooden pallet.
Shipment
1. FOB,CNF, CIF can be accepted.
2. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
2. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
FAQ
Q:Are you a manufacturer?
Yes, 15 years manufacturing experience.
Q: Do you offer installation?
Yes, 15 years manufacturing experience.
Q: Do you offer installation?
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request.
Q:What is language of the operation system?
Any language as you request.
Q:Where can we get replacement parts?
Q:What is language of the operation system?
Any language as you request.
Q:Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
Q:What technical support do you offer?
Q:What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
Q:Can you customized the machine?
Q:Can you customized the machine?
Our machines can be customized made according to buyers’ request.
Q:What other machines do you offer?
Q:What other machines do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like Edge banding machine,Sanding machine, CNC router, Drilling machine, Saw machine can be provided as well.
