Promotion price 1325 straight line wood cnc router machine for wood

Name: Promotion price 1325 straight line wood cnc router machine for wood
Brand: Qingdao Zhongding Machinery Co., Ltd.

Price Negotiable

Price: $13,000.00/sets >=1 sets

MOQ: Negotiable

Delivery Time: Negotiable

Brand: ZHONGDING

Product Description

PRODUCT CONFIGURATION

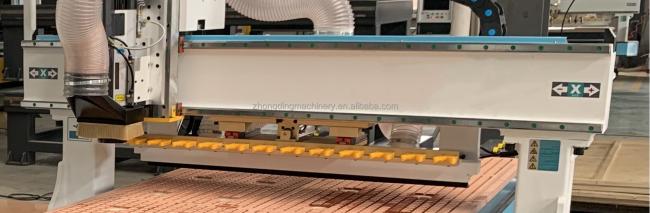

Automatic bit change, straight line knife warehouse

Touch control screen

Vacuum working table

Heavy-Duty Construction

Vacuum Pumps

Easy-To-Use NC Control

Linear Bearings Fluid & Accurate

Digital Servo Drive System Smooth & Reliable

High Speed Router Spindles

Precise & Robust Z-Axis Assembly

Drive Assembly
High Acceleration, Excellent Cut Quality

Dust Collector

Precision Test

Application

PRODUCT SPECIFICATIONS

Item	Data
XYZ working stroke	13002500200mm
Empty line engraving speed	80000mm/min
Maximum cutting speed	5000mm/min
Repeatability	±0.02mm
X, Y, Z structure	XY-axis high-precision racks are driven by German Henry's brand, Z-axis imported ball screw is Taiwan TPI brand
Machine material	Integral steel structure, thick bed (welded by our factory) tempering and quenching treatment Bed: First, use a planer for rough machining, and use a large CNC machining center for milling and CNC drilling of the guide rail table and rack surface. Heat treatment annealing, stress relief-pickling, phosphating and other surface treatment-CNC machining center milling Cutting and drilling are formed at one time.
Portal frame	Large steel plate gantry beam: Machining components: all processed by vertical machining center. Through the above processing, the basic accuracyof the accessories is strongly guaranteed and the wall thickness is 8 thick.
Table	The 7.5kw water-cooled vacuum pump table is a vacuum adsorption (double-layer) table, which is porous and can strongly adsorb materials of different areas.
Control System	Taiwan syntec 60CB six-axis control system, integrated drive and control machine.
Spindle motor	9kw air-cooled motor Changzhou HQD/CC
Tool Magazine	12tools/16 toolchange magazine
Drive motor	XYZ three-axis adopts Leadshine motor and supporting driver, (no need to return to the mechanical origin after power-on) Z-axis plus a brake
Transfer method	XY-axis high-precision helical rack drive imported from Germany, Germany imported Henry's brand, Z-axis Taiwan TBI screw drive
Maintenance	Automatic oil injection system
Vacuum cleaner	Double bucket foot power 5.5kw vacuum cleaner
