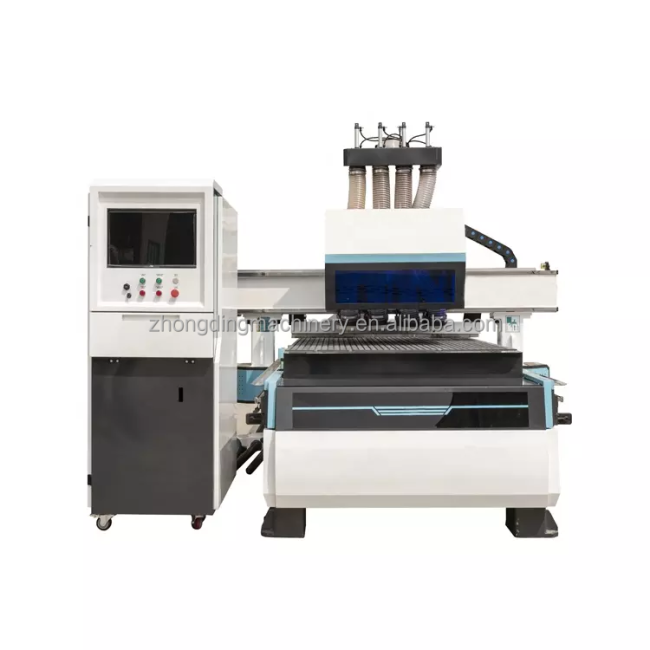

Four Spindle CNC Router CNC Wood Engraving Router Machine Woodworking 3D Carving CNC Router Machine
Price:
$13,800.00/sets 1-9 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
zhongding
Product Description
Product Description
CNC Router
1. It is suitable for complex products processing and diversity processing: engraving and milling, milling, drilling, cutting，milling, leading edge etc.
2. It adopt high precision Taiwan linear guide rails, high precision, longer lifetime.
3.Italy 9KW imported air cooling spindle with auto changing cutter function, speed can be to 24000r/min.
4.Carousel type changing cutters, can change 12 pieces cutters automatically, time is 8 seconds.
5.Taiwan SYNTEC control system, easy operation.
2. It adopt high precision Taiwan linear guide rails, high precision, longer lifetime.
3.Italy 9KW imported air cooling spindle with auto changing cutter function, speed can be to 24000r/min.
4.Carousel type changing cutters, can change 12 pieces cutters automatically, time is 8 seconds.
5.Taiwan SYNTEC control system, easy operation.
Specification
Item | Data |
XYZ working striking | 1300*2500*200mm |
Empty line engraving speed | 80000mm/min |
Maximum cutting speed | 5000mm/min |
Repeatability | ±0.02mm |
X, Y, Z structure | XY-axis high-precision racks are driven by German Henry's brand, Z-axis imported ball screw is Taiwan TPI brand |
Table | The 7.5kw water-cooled vacuum pump table is a vacuum adsorption (double-layer) table, which is porous and can strongly adsorb materials of different areas. |
Spindle motor | Changzhou HQD/CC Spindle motor |
Drive motor | XYZ three-axis adopts Leadshine motor and supporting driver, (no need to return to the mechanical origin after power-on) Z-axis plus a brake |
Transfer method | XY-axis high-precision helical rack drive imported from Germany, Germany imported Henry's brand, Z-axis Taiwan TBI screw drive |
Maintenance | Automatic oil injection system |
Vacuum cleaner | Double bucket foot power 5.5kw vacuum cleaner |

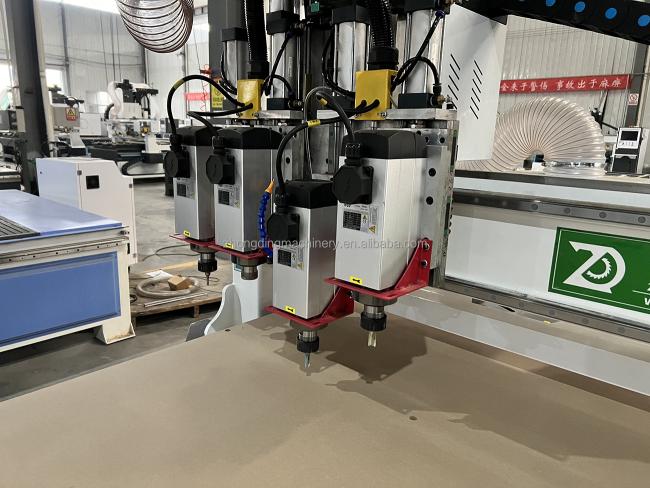

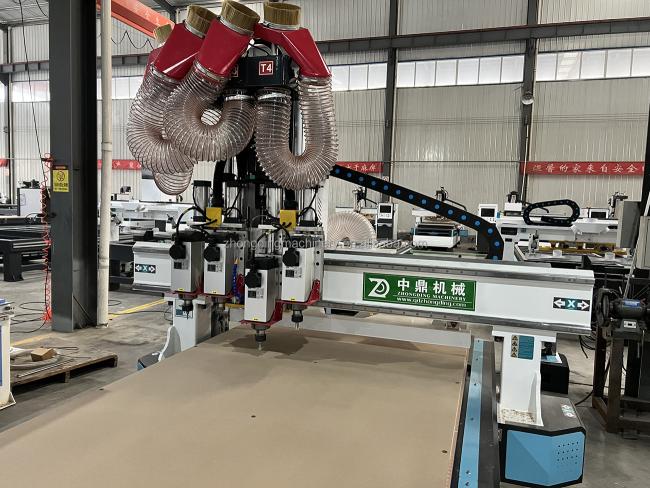

PRODUCT DETAILS
RELATED PRODUCTS
Sliding table saw
Edge banding machine
Brush polish sanding machine
Hot press machine
Cold press machine
CNC router
Company Profile
Qingdao Zhongding Machinery Co.,Ltd
Qingdao Zhongding Machinery Co.,Ltd, is a leading company which is specializing in manufacturing and exporting woodworking machines. Our company has professional technology, full range of testing lines and pipelining, and four professional production lines of woodworking machine.Our main products include Precise panel saw, Edge banding machine, Multiple Drilling machine, Hot press machine, cold press machine, which had been exported to a lots of countries and regions, such as European, Southeast Asia, North America, Russia, Mid East and Australia,etc.

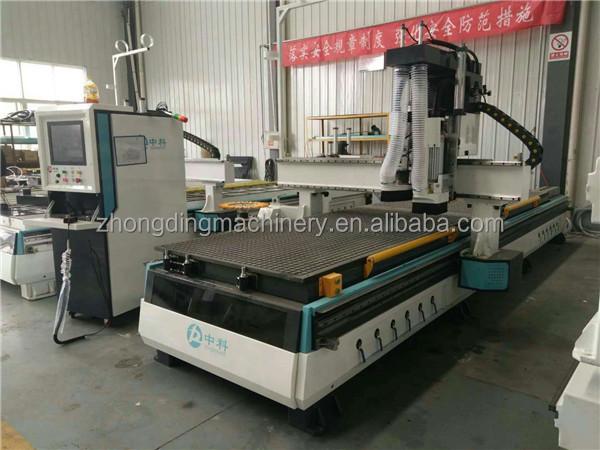

FACTORY PICTURES
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q:Are you a manufacturer?
Yes, 15 years manufacturing experience.
Q: Do you offer installation?
Yes, 15 years manufacturing experience.
Q: Do you offer installation?
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request.
Q:What is language of the operation system?
Any language as you request.
Q：Where can we get replacement parts?
Q:What is language of the operation system?
Any language as you request.
Q：Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
Q：What technical support do you offer?
Q：What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
Q：Can you customized the machine?
Q：Can you customized the machine?
Our machines can be customized made according to buyers’ request.
Q：What other machines do you offer?
Q：What other machines do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like Edge banding machine,Sanding machine, CNC router, Drilling machine, Saw machine can be provided as well.
