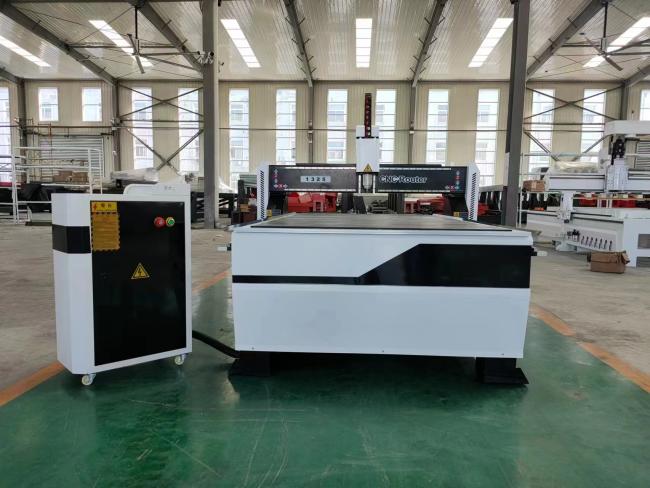

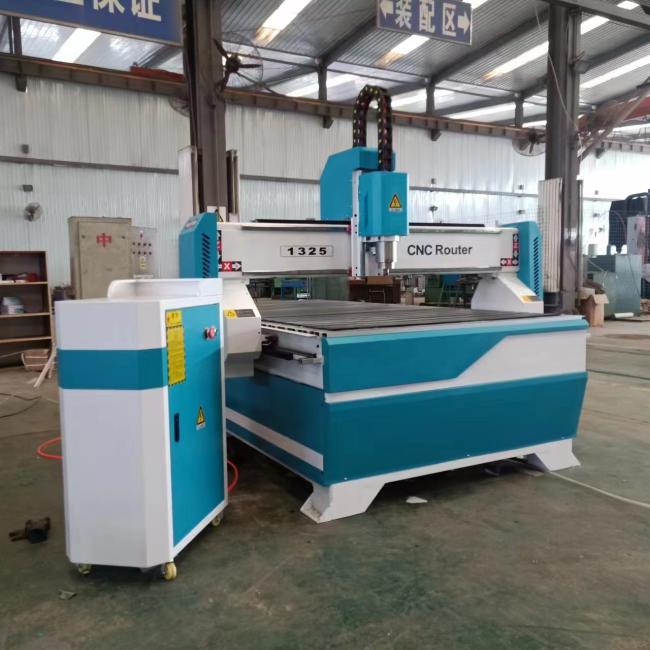

Promotion Price Wood Carving 3D CNC Router Engraving Machine For Wood
Price:
$4,000.00/sets 1-4 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
ZHONGDING
Product Description
PRODUCT CONFIGURATION
Model | 1325 |
Working size | 1300x2500mm |
Working height | 200mm |
Running speed | 0-18m/min |
Processing speed | 0-10m/min. |
Drive way | Changzhou Anhao 450B Stepper Motor |
Drive | Shenzhen Thessai 860 stepper driver |
Spindle motor | 3.2kw water-cooled variable frequency spindle |
XY axis guide and transmission | 20 linear guideway, high precision rack drive |
Z axis guide and transmission | 20 linear guideway, original tbi ball rod transmission |
Voltage | 220V/50hz(380V/50Hz) |
Supported formats | *nc,G code,*uoo,*mmg,*plt |
Control system | NCstudio |
Oil lubrication | Auto oiling |
Control cabinet | Independent control cabinet |
Our CNC engraving machine uase well-known brand water-cooled spindle, high speed, high torque, durable bearing and long service life. (optional air-cooled spindle or other brand spindles like HSD)

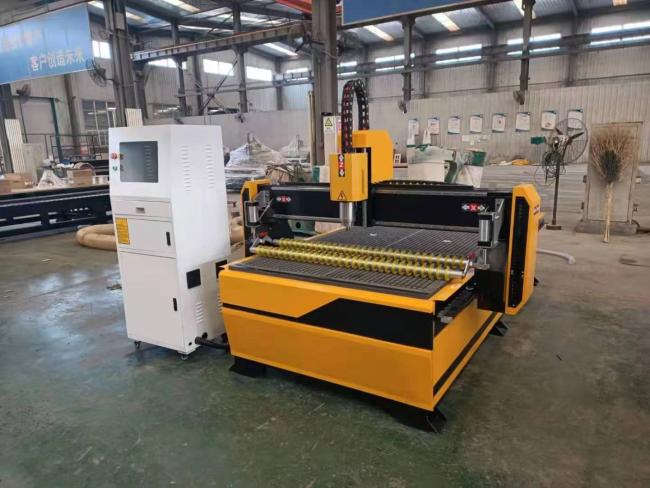

T-slot table and vacuum table are optional for the CNC engraving machine. The vacuum table has strong adsorption force and can strongly adsorb materials of different sizes. High density, not easy to deform, high temperature resistance.

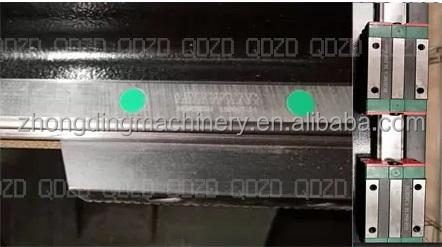

Rack and rail
Square liner rail
Taiwan HIWIN rack guide rail, high precision, fast speed, high-precision grinding rack, double-row sliding block, work stability and durability.

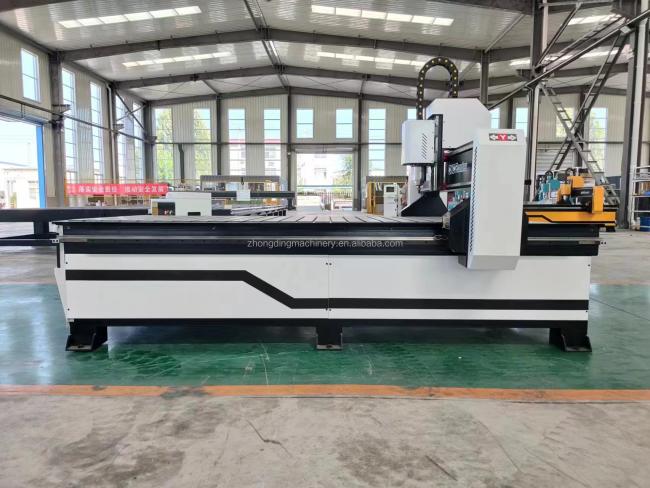

The CNC engraving machine use solid, heavy duty construction. The base frame is 5 axis CNC processed steel frame that is welded,
stress-relieved, and precision machined.
stress-relieved, and precision machined.
Heavy-duty thickened steel body selected thickened steel, tempered, sandblasted, and quenched to prevent deformation and cracking, strengthen and thickened body make.

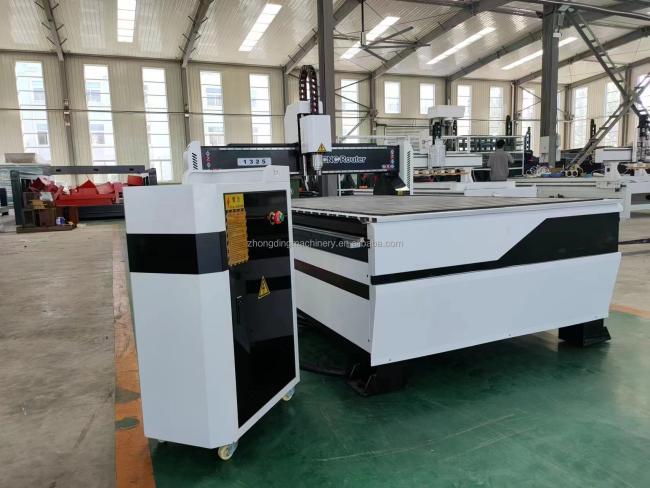

Independent control boxStandard stepper driver and motor, optional servo driver and motor. Independent electrical box, save space.
support computer and DSP handle control.
support computer and DSP handle control.

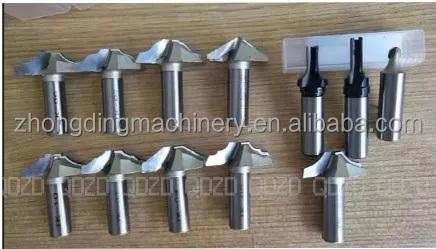

CNC engraving machine bits.
Quick-change tools can meet various technological needs.
Our CNC router digital servo drive system smooth & reliable. This drive system integrates position, velocity, and torque loops seamlessly to provide uncompromised tracking accuracy, smoothness, and reliability.
Central dust collection plus secondary dust removal to ensure a sanitary working environment and reduce wood dust.
Each of our CNC router has been strictly inspected before shipment, and no missing inspection.
PACKAGE AND DELIVERY
The CNC ROUTER machine body is protected by film first. Then packed by plywood box
If the customer does not need plywood box packaging, we will protect the CNC router machine with a protective film and reinforce it when loading the container to ensure the safety of the machine.
ARE YOU A FACTORY?
RELATED PRODUCTS
Two spindles and drilling package 1325 CNC router
Four spindles CNC router
Single spindle automatic bit change CNC router
Engraving machine 1325
Engraving machine 1325
Engraving machine 2040
CERTIFICATES AND PATENTS
We have ISO and CE certificates of our factory and woodworking machines. We produce in strict accordance with the requirements of the ISO system, and all woodworking machines meet CE standards.
We are a high-tech enterprise in the woodworking machinery industry. We have our own R&D team, the above is our high-tech enterprise certificate and patent certificates.
EXHIBITION AND CUSTOMERS
Our customers come from all over the world, some of them are woodworking machinery distributors, some are users, we have established a good cooperative relationship with them. We welcome friends from all over the world to visit our factory.
FAQ
Q1. WHY CHOOSE US?
If you are a distributor, our machines can bring you good profits, and the nice quality frees you from the troublesome
after-sales service.
If you are a user, our machine design is very thoughtful, many machine details are not found by other companies,
which makes your working time a moment of enjoyment. It is sure that you will be very happy to choose us!
Q2. Are you a manufacturer?
Yes, 15 years manufacturing experience
Q3. MOQ?
1 set
Q4. Any installation is needed when I receive the machine?
No. Our machines are almost assembled before loading in container. It is very easy for installation in your workshop.
Video guidance and English manual can be provided freely. Engineers can be sent to service in site if you need.
Q5. How can I get replacement parts?
We have stock in our warehouse. They will be sent to you directly from our warehouse withoriginal prices.
Q6. What is language of the operation system?
Any language as your request.
Q7. What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. English manual and operation video.
3. Engineer is available to service machinery overseas.
Q8. Is your machine customized?
Yes, and OEM and ODM are provided.
Q9. If I order a big quantity, what's the price?
We will provide you a competitive good price to ensure your continued growth.
Q10. How about if I want a cheaper one?
We have many styles at different price.
Q11. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers.
Such as sliding table saw, edge banding machine, CNC router, sanding machine, drilling machine and so on.
Q3. MOQ?
1 set
Q4. Any installation is needed when I receive the machine?
No. Our machines are almost assembled before loading in container. It is very easy for installation in your workshop.
Video guidance and English manual can be provided freely. Engineers can be sent to service in site if you need.
Q5. How can I get replacement parts?
We have stock in our warehouse. They will be sent to you directly from our warehouse withoriginal prices.
Q6. What is language of the operation system?
Any language as your request.
Q7. What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. English manual and operation video.
3. Engineer is available to service machinery overseas.
Q8. Is your machine customized?
Yes, and OEM and ODM are provided.
Q9. If I order a big quantity, what's the price?
We will provide you a competitive good price to ensure your continued growth.
Q10. How about if I want a cheaper one?
We have many styles at different price.
Q11. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers.
Such as sliding table saw, edge banding machine, CNC router, sanding machine, drilling machine and so on.
