CNC Routers Marcenaria Profissional Wholesale Factery In China Fresadora Nesting CNC Router Machine
Price:
$20,300.00/sets 1-4 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
ZHONGDING
Product Description
PRODUCT CONFIGURATION
* CNC router is suitable for complex products processing and diversity processing: engraving and milling, milling, drilling, cutting, milling, leading edge etc.
* CNC router adopt high precision Taiwan linear guide rails, high precision, longer lifetime
* Italy 9KW (optional) imported air cooling spindle with auto changing cutter function, speed can be to 24000r/min
* Carousel type changing cutters, can change 12 pieces cutters automatically, time is 8 seconds.
* CNC router adopt high precision Taiwan linear guide rails, high precision, longer lifetime
* Italy 9KW (optional) imported air cooling spindle with auto changing cutter function, speed can be to 24000r/min
* Carousel type changing cutters, can change 12 pieces cutters automatically, time is 8 seconds.
Item | Data |
XYZ working stroke | 1300*2500*200mm |
Empty line engraving speed | 80000mm/min |
Maximum cutting speed | 5000mm/min |
Repeatability | ±0.02mm |
X, Y, Z structure | XY-axis high-precision racks are driven by German Henry's brand, Z-axis imported ball screw is Taiwan TPI brand |
Machine material | Integral steel structure, thick bed (welded by our factory) tempering and quenching treatment Bed: First, use a planer for rough machining, and use a large CNC machining center for milling and CNC drilling of the guide rail table and rack surface. Heat treatment annealing, stress relief-pickling, phosphating and other surface treatment-CNC machining center milling Cutting and drilling are formed at one time. |
Portal frame | Large steel plate gantry beam: Machining components: all processed by vertical machining center. Through the above processing, the basic accuracyof the accessories is strongly guaranteed and the wall thickness is 8 thick. |
Table | The 7.5kw water-cooled vacuum pump table is a vacuum adsorption (double-layer) table, which is porous and can strongly adsorb materials of different areas. |
Control System | Taiwan syntec 60CB six-axis control system, integrated drive and control machine. |
Spindle motor | 9kw air-cooled motor Changzhou HQD/CC |
Tool Magazine | 12tools/16 toolchange magazine |
Drive motor | XYZ three-axis adopts Leadshine motor and supporting driver, (no need to return to the mechanical origin after power-on) Z-axis plus a brake |
Transfer method | XY-axis high-precision helical rack drive imported from Germany, Germany imported Henry's brand, Z-axis Taiwan TBI screw drive |
Maintenance | Automatic oil injection system |
Vacuum cleaner | Double bucket foot power 5.5kw vacuum cleaner |
Each of our CNC router has been strictly inspected before shipment, and no missing inspection.
PACKAGE AND DELIVERY
The CNC ROUTER machine body is protected by film first. Then packed by plywood box
If the customer does not need plywood box packaging, we will protect the CNC router machine with a protective film and reinforce it when loading the container to ensure the safety of the machine.
ARE YOU A FACTORY?
RELATED PRODUCTS
Straight line bit automatic change CNC router machine
1 spindle and 1 drilling package automatic bit change CNC router
4 spindles CNC router
2 spindles and 1 drilling package CNC router

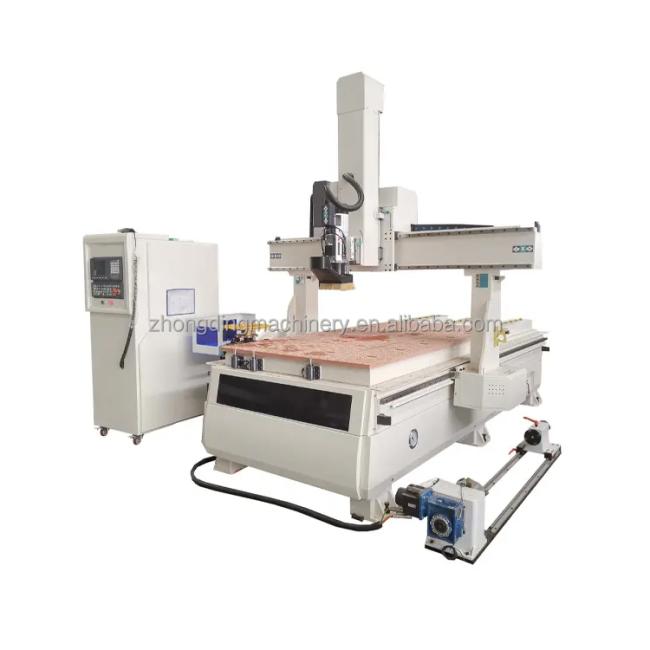

4 Axis CNC ROUTER
5 Axis CNC ROUTER
CERTIFICATES AND PATENTS
We have ISO and CE certificates of our factory and woodworking machines. We produce in strict accordance with the requirements of the ISO system, and all woodworking machines meet CE standards.
We are a high-tech enterprise in the woodworking machinery industry. We have our own R&D team, the above is our high-tech enterprise certificate and patent certificates.
EXHIBITION AND CUSTOMERS
Our customers come from all over the world, some of them are woodworking machinery distributors, some are users, we have established a good cooperative relationship with them. We welcome friends from all over the world to visit our factory.
FAQ
Q1. WHY CHOOSE US?
√If you are a distributor, our machines can bring you good profits, and the nice quality frees you from the
troublesome after-sales service.
√If you are a user, our machine design is very thoughtful, many machine details are not found by other companies,
which makes your working time a moment of enjoyment. It is sure that you will be very happy to choose us!
Q2. Are you a manufacturer?
Yes, 15 years manufacturing experience
Q3. MOQ?
1 set
Q4. Any installation is needed when I receive the machine?
No. Our machines are almost assembled before loading in container. It is very easy for installation in your workshop.
Video guidance and English manual can be provided freely. Engineers can be sent to service in site if you need.
Q5. How can I get replacement parts?
We have stock in our warehouse. They will be sent to you directly from our warehouse withoriginal prices.
Q6. What is language of the operation system?
Any language as your request.
Q7. What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. English manual and operation video.
3. Engineer is available to service machinery overseas.
Q8. Is your machine customized?
Yes, and OEM and ODM are provided.
Q9. If I order a big quantity, what's the price?
We will provide you a competitive good price to ensure your continued growth.
Q10. How about if I want a cheaper one?
We have many styles at different price.
Q11. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers.
Such as sliding table saw, edge banding machine, CNC router, sanding machine, drilling machine and so on.
Q3. MOQ?
1 set
Q4. Any installation is needed when I receive the machine?
No. Our machines are almost assembled before loading in container. It is very easy for installation in your workshop.
Video guidance and English manual can be provided freely. Engineers can be sent to service in site if you need.
Q5. How can I get replacement parts?
We have stock in our warehouse. They will be sent to you directly from our warehouse withoriginal prices.
Q6. What is language of the operation system?
Any language as your request.
Q7. What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. English manual and operation video.
3. Engineer is available to service machinery overseas.
Q8. Is your machine customized?
Yes, and OEM and ODM are provided.
Q9. If I order a big quantity, what's the price?
We will provide you a competitive good price to ensure your continued growth.
Q10. How about if I want a cheaper one?
We have many styles at different price.
Q11. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers.
Such as sliding table saw, edge banding machine, CNC router, sanding machine, drilling machine and so on.
