Double Head 1325 Woodworking Cnc Machine Oil Less Vacuum Pump

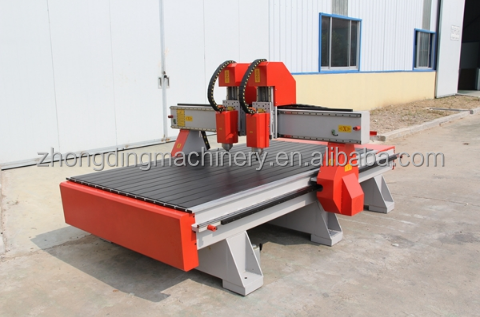

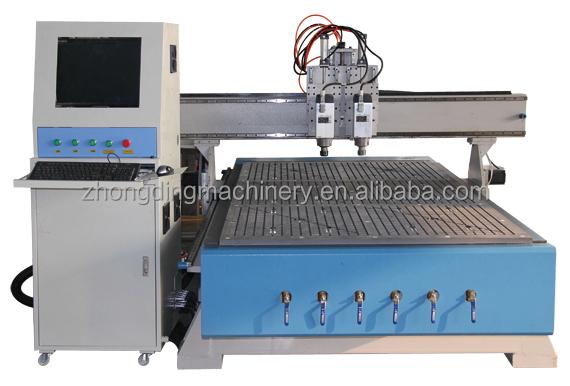

Double head CNC router machine
|
Model |
1325 CNC MACHINE |
|
Working size |
1300*2500*200mm (can be customized) |
|
Working table |
Vaccum table and T. Clamp |
|
Heads |
Double head |
|
X Y Z Guide Rail |
TAIWAN HIWIN 30 Square Rail |
|
X,Y,Z axis transmission |
1.25M high-precision rack, gear box drive |
|
Running speed |
0-24000r/min |
|
X,Y,Z travelling positioning accuracy |
±0.02/300mm |
|
X,Y,Z travelling positioning accuracy |
±0.02mm |
|
Motor |
Servo motor |
|
Driver |
Servo driver |
|
Inverter |
BEST 4.0kw*2 |
|
Spindle power |
9kw HSD italy air cooling spindle*2 |
|
Working voltage |
380v/50hz/3phase(can customized) |
|
Control cabinet |
Independ computer control case |
|
Control system |
JM NCstudio |
|
Running environment temperature |
0-45 Centigrade |
|
Vacuum pump |
11kw oil less vacuum pump |
|
Relative humidity |
30%-75% |
|
Package |
Standard package or customized |
Qingdao Zhongding Machinery CO.,Ltd, founded in 2010,is a professional and automated woodworking equipment manufacter.We have exported more than 5000 sets of machines to more than 150 countries and areas.Now, our distributors and customers come from all over the world,such as North America, South America,Europe,Africa,Southeast Asia,etc.Our main products are edge banding machine,sliding tabe saw,CNC router,press machine,sanding machine and other woodworking machines.Our high-quality machines help distributors expand a larger market and help our end customers incerase their efficiency and productivity and produce high-quality furniture.
A: Since the market is large, we have some stocks in factory, so if you need standard machines, we can ship the machine within 5 days, or you have special needs, we will ship the cnc router equipment to you from 10 to 20 days.
2. Q: Can you make customized router model?
A: Sure. We are manufacturers not trading company, we have our own R&D department, and cnc machine processing center for machine body making. We have some successful cases like machine with up-down table and special holding device. As long as you have specific requirements, we will definitely not let you down!
3. Q: I am the new comer, if I buy machine from you, will I get any help or support?
A: If you buy machines from us, we will sent manual and technical videos for you to know more about the machine firstly, after receiving the machine, we will provide one to one technical support online. Providing the best service is our aim.
4. Q: What’s the policy for the damaged parts?
A: We have one year warranty, if the parts break within the warranty, we will send replacement for free, but you need to take charge of the freight.
A: If any problems occur, please contact us as soon as possible instead of solving it by yourselves or other engineers.
