wood wide belt sander solid wood plywood Mdf grinding sanding machine general calibrating wide belt sander
Price:
$10,200.00/sets >=1 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
zhongding
Product Description
Product Description
General Calibrating Wide Belt Sander
1.Adopt imported frequency converter,sensitive and reliable action,high stability.
2.Using frenquency control of motor speed, suitable for woodworking professional board plant on all types of plate processing requirement.
Specification
Model | ZDR-RP1300 |
Max working width | 1300mm |
Material thickness | 3-110mm |
Min working length | 500mm |
Feeding speed | 6-30m/min |
The first motor power | 37kw |
Second sand frame motor power | 22kw |
Conveyor motor wattage | 4kw |
Lifting motor power | 0.37kw |
First sand frame steel roller diameter | 240mm |
Second sander roller diameter | 210mm |
Total power | 63.37kw |
Working air pressure | 0.5mpa |
Overall dimension | 2700*2100*2100mm |
Weight | 3300kg |
PRODUCT DETAILS
Control panel
Digital display,with a working table lifting preset function.

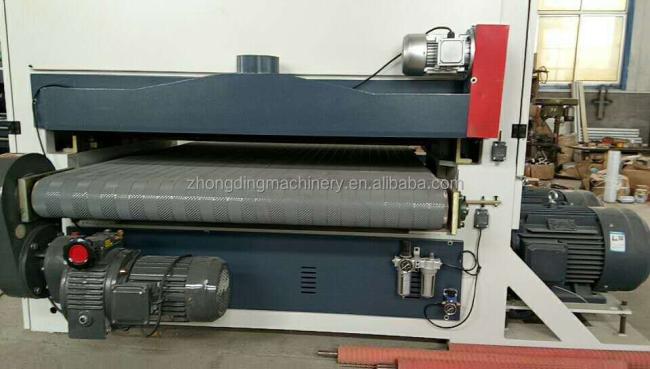

Convey belt
Speed adjustable.
Thickness setting device adjust the height of table.
R-RP roller
1 set steel roller and combined structure of rubber roller and sanding pad.
RELATED PRODUCTS
Sliding table saw
Edge banding machine
Brush polish sanding machine
Hot press machine
Cold press machine
CNC router
Company Profile
Qingdao Zhongding Machinery Co.,Ltd
Qingdao Zhongding Machinery Co.,Ltd, is a leading company which is specializing in manufacturing and exporting woodworking machines. Our company has professional technology, full range of testing lines and pipelining, and four professional production lines of woodworking machine.Our main products include Precise panel saw, Edge banding machine, Multiple Drilling machine, Hot press machine, cold press machine, which had been exported to a lots of countries and regions, such as European, Southeast Asia, North America, Russia, Mid East and Australia,etc.
FACTORY PICTURES
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q:Are you a manufacturer?
Yes, 15 years manufacturing experience.
Q: Do you offer installation?
Yes, 15 years manufacturing experience.
Q: Do you offer installation?
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request.
Q:What is language of the operation system?
Any language as you request.
Q：Where can we get replacement parts?
Q:What is language of the operation system?
Any language as you request.
Q：Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
Q：What technical support do you offer?
Q：What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
Q：Can you customized the machine?
Q：Can you customized the machine?
Our machines can be customized made according to buyers’ request.
Q：What other machines do you offer?
Q：What other machines do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like Edge banding machine,Sanding machine, CNC router, Drilling machine, Saw machine can be provided as well.
