The lower body adopts a heavy-duty base, and the whole plate is integrally welded around it. The bottom is welded with dense
channel steel and steel plate, which enhances the stability and strength of the lower body and ensures that the base is not deformed.

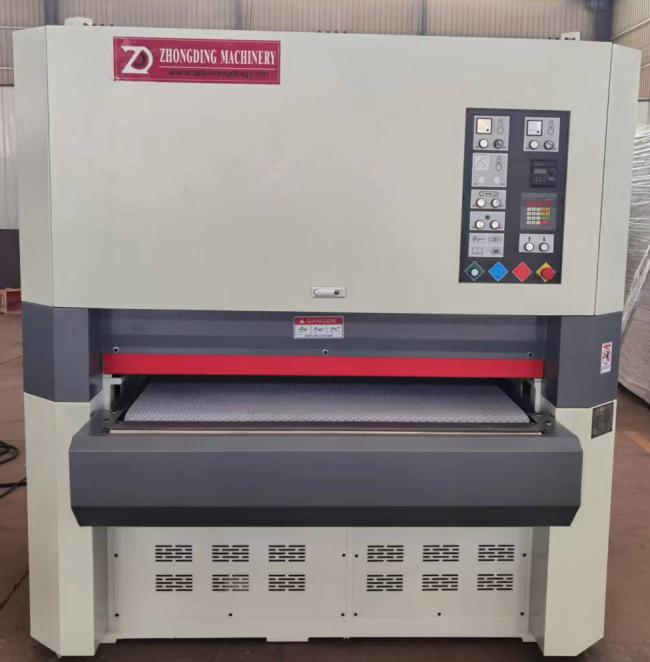

Solid Wood Board Wide Belt Sander Woodworking Sanding Machine 2 Years Warranty
Price:
$10,300.00/sets 1-14 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
ZD
Product Description
Product Description
Wide belt sander 1300mm
Equipped with heavy duty spiral planer in order to decrease large amount of wood boards, which can save the motor power.
Mainly used for surface sanding and fixed thickness,suitable for timber,wood panels,block board,plywood,insulation panels,insulation materials, calcium silicate board,fiberboard,and other products
Specification
|
Model
|
ZD R-R1300
|
|
Max working width
|
1300mm
|
|
Material thickness
|
10-100mm
|
|
Min. Working length
|
550mm(option400mm)
|
|
Feeding speed
|
5-25m/min
|
|
Size of sanding belt
|
1320*2020mm
|
|
Total power
|
81kw
|
|
Working air pressure
|
0.6mpa
|
|
Volume of dust collecting
|
15000m³/h
|
|
Speed of dust collecting
|
25-30m/s
|
|
Overall dimension(L*W*H)
|
2150*3000*2050mm
|
|
Weight
|
4500kg
|
PRODUCT DETAILS
machine body

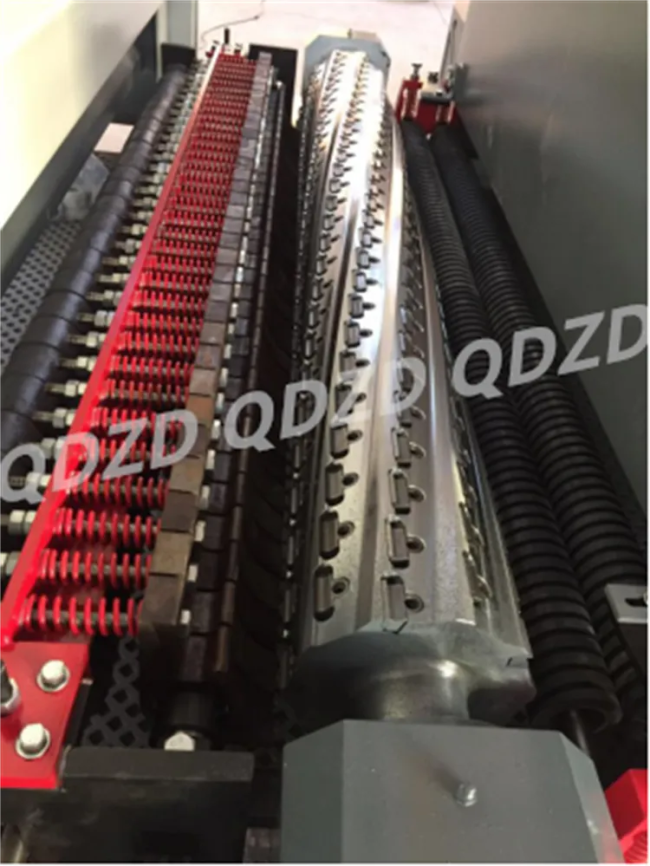

Cutter
The planer roller adopts ₵180 heavy cutting 10-blade solid planer roller, equipped with imported 30x12x2.5mm carbide blade, which
is easy to use and has good planing quality. The motor power is 30KW. The front of the planer roller is equipped with an adjustable segmented pressure shoe and the close fit of the pressure roller.
is easy to use and has good planing quality. The motor power is 30KW. The front of the planer roller is equipped with an adjustable segmented pressure shoe and the close fit of the pressure roller.

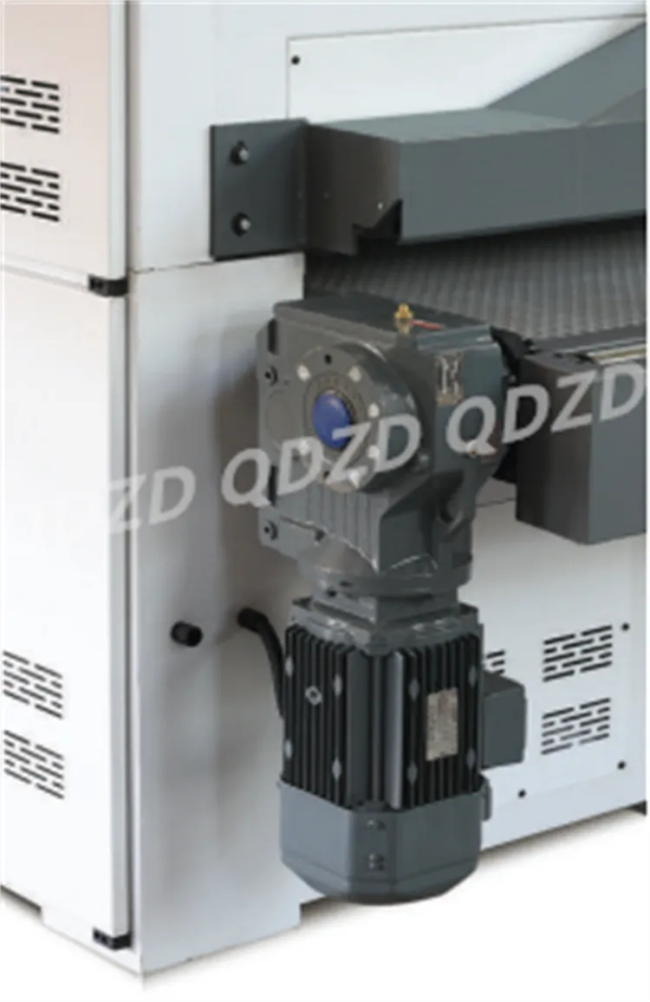

Transform
Through the frequency conversion helical-spiral bevel reducer, the feeding power is 4KW, which is more smooth and powerful
COMPANY PROFILE
Qingdao Zhongding Machinery Co.,Ltd
Qingdao Zhongding Machinery Co,.Ltd is a leading company specializing in manufacturing and exporting woodworking machines. It is located by the beach side of the Yellow Sea and the Jiaozhou Gulf, which helps us build a compete sales system with convenient sea, land and air transportation.
Our products mainly include Precise Panel saw, Edge Banding Machine, Multiple Drilling Machine, Hot Press Machine,
Cold Press Machine,and other various woodworking machines, which have been exported to a lot of countries and regions, such as European, Southeast Asia, North America, Russia, Mid East and Australia.
At the same time, we have already got ISO9001 international system certificate and CE security certificate.
Our products mainly include Precise Panel saw, Edge Banding Machine, Multiple Drilling Machine, Hot Press Machine,
Cold Press Machine,and other various woodworking machines, which have been exported to a lot of countries and regions, such as European, Southeast Asia, North America, Russia, Mid East and Australia.
At the same time, we have already got ISO9001 international system certificate and CE security certificate.
RELATED PRODUCTS
PACKAGE AND DELIVERY
Ship terms:
1. We can arrange the shipping by sea, air, truck and train based on your requirements, but kindly remind the refrigerant gas isn't allowed by air ,so you must filling them when machine arrive if you choose the air ship.
2. FOB, CNF, CIF can be accepted.
3. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
2. FOB, CNF, CIF can be accepted.
3. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
FAQ
Q: Do you offer installation?
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request.
Q:Where can we get replacement parts? Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
Q:What technical support do you offer? 1. Technical support by phone, email or WhatsApp/Skype around the clock. 2. Friendly English version manual and operation video. 3. Engineer available to service machinery overseas.
Q:Can you customized the machine? Our machines can be customized made according to buyers’ request. Q:What other machines do you offer? We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like Edge banding machine,Sanding machine, CNC router, Drilling machine, Saw machine can be provided as well.
