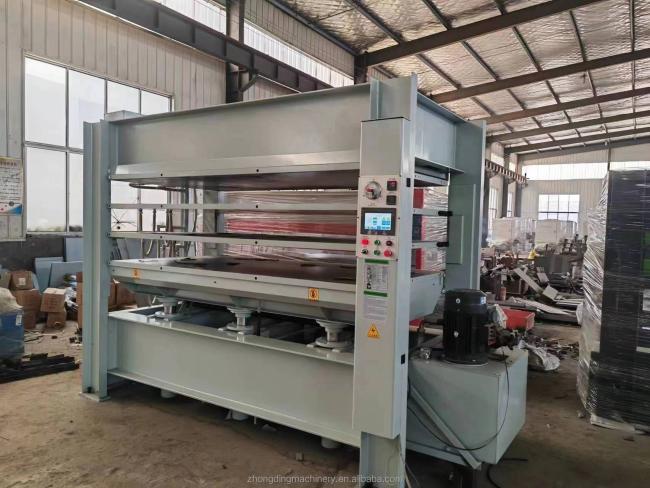

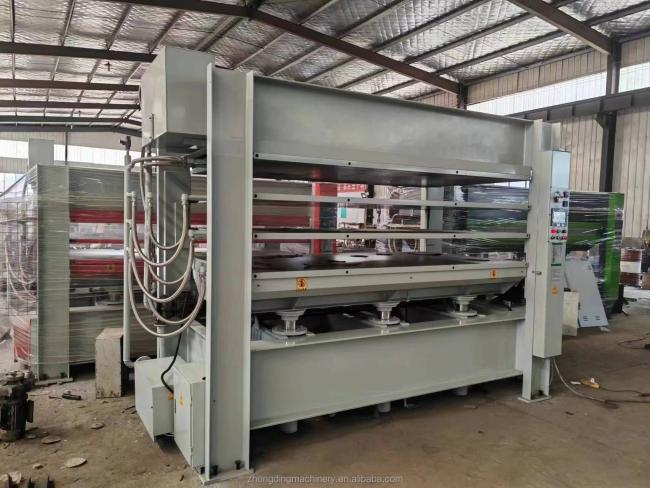

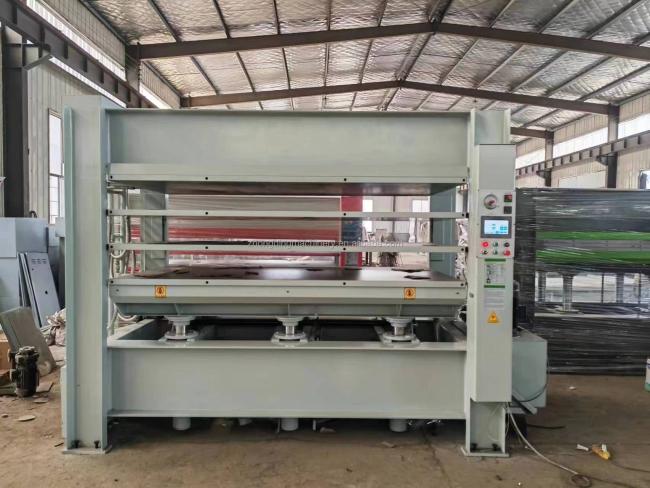

Hydraulic Wood Hot Press Machine MDF Plywood Door Hot Press Machine
Price:
$23,000.00/sets 1-4 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
ZD
Product Description
Product Description
Product Advantage
1.The main hydraulic parts are imported,adjustable pressure.
2.The heating platen is made of high quality solid carbon steel with high precision, high strength.
3.Heating system, with the meticulous segmented design,which can lower energy consumption, uniform heat conduction, adjust the temperature.
4. The Cylinder is made by precision CNC machine and adopts imported oil seal, no oil leakage.
4. The Cylinder is made by precision CNC machine and adopts imported oil seal, no oil leakage.
PRODUCT DETAILS
The hydraulic system of this machine uses Taiwan Qingtian hydraulic components and high and low pressure oil pumps, equipped with a three-blade 5.5kw oil pump special motor, and the ascent speed is about 30mm/S
The cylinder is a solid plunger rod that is hard chrome-plated, with imported sealing ring inside, with a diameter of 100mm and an effective stroke of 300mm.
The hot plate is a solid drilled plate, and the oil circuit layout is reasonable and even, which greatly guarantees the heating speed and uniform temperature of the hot plate.
Base is type H steel.Ensure stable operation.
Specification
|
Model
|
ZD214x8/12(1)H
|
ZD214x8/12(2)H
|
ZD214x8/12(3)H
|
ZD214x8/12(4)H
|
|
Total pressure (KN)
|
1200 KN
|
1200 KN
|
1200 KN
|
1200 KN
|
|
Platen No & size (mm)
|
1300x2500x42 mm
|
1300x2500x42 mm
|
1300x2500x42 mm
|
1300x2500x42 mm
|
|
Opening (mm)
|
80-150 mm
|
80-150 mm
|
80-150 mm
|
80-150 mm
|
|
Working layer Numbers
|
1
|
2
|
3
|
4
|
|
Cylinder No &Diameter (mm)
|
6 xФ100mm
|
6 xФ100mm
|
6 xФ100mm
|
6 xФ100mm
|
|
Heating Method
|
Electric heated with conduction oil
|
Electric heated with conduction oil
|
Electric heated with conduction oil
|
Electric heated with conduction oil
|
|
Hot platen open way
|
Automatically
|
Automatically
|
Automatically
|
Automatically
|
|
Closing speed (mm/s)
|
40 mm/s
|
40 mm/s
|
40 mm/s
|
40 mm/s
|
WHY CHOOSE US?

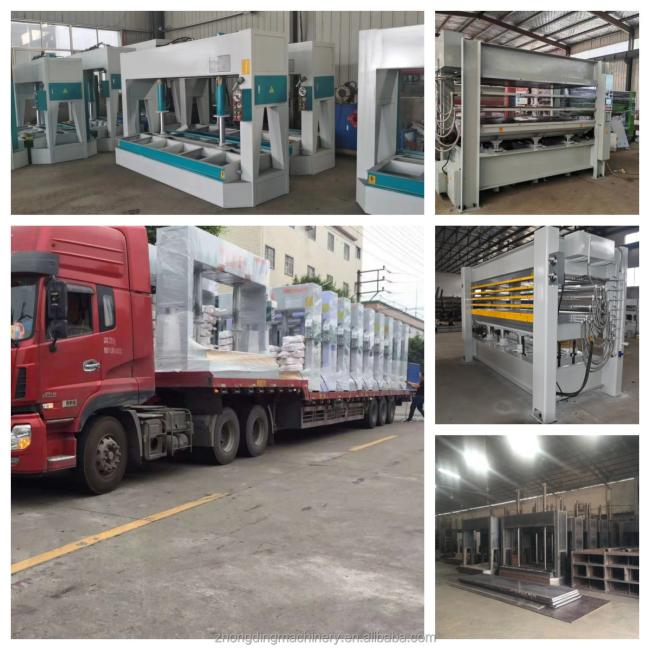

PACKAGE AND DELIVERY
Package
1.LCL SHIPMENT: Use plastic foam protect ,then ply wooden case package.
2.FCL: If the equipment enough package with 20"or 40" container , will use plastic foam package and wooden pallet.
2.FCL: If the equipment enough package with 20"or 40" container , will use plastic foam package and wooden pallet.
Shipment
1. FOB,CNF, CIF can be accepted.
2. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
2. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
FAQ
Q:Are you a manufacturer?
Yes, 15 years manufacturing experience.
Q: Do you offer installation?
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request.
Q:What is language of the operation system?
Any language as your request.
Any language as your request.
Q:Where can we get replacement parts? Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
Q:What technical support do you offer? 1. Technical support by phone, email or WhatsApp/Skype around the clock. 2. Friendly English version manual and operation video. 3. Engineer available to service machinery overseas.
Q:Can you customized the machine? Our machines can be customized made according to buyers’ request.
Q:What other machines do you offer? We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like Edge banding machine,Sanding machine, CNC router, Drilling machine, Saw machine can be provided as well.
