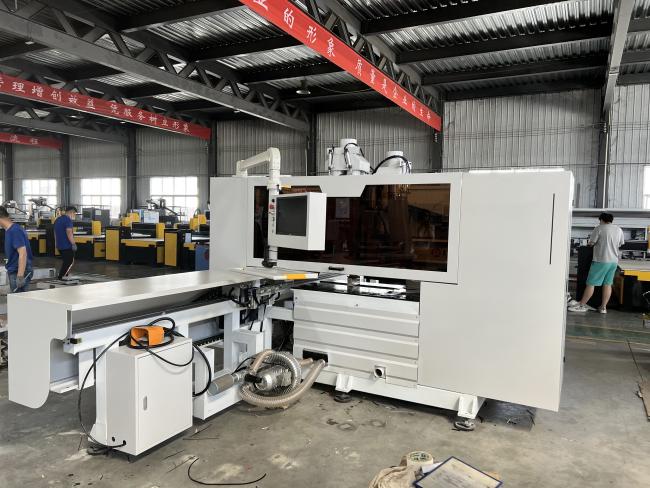

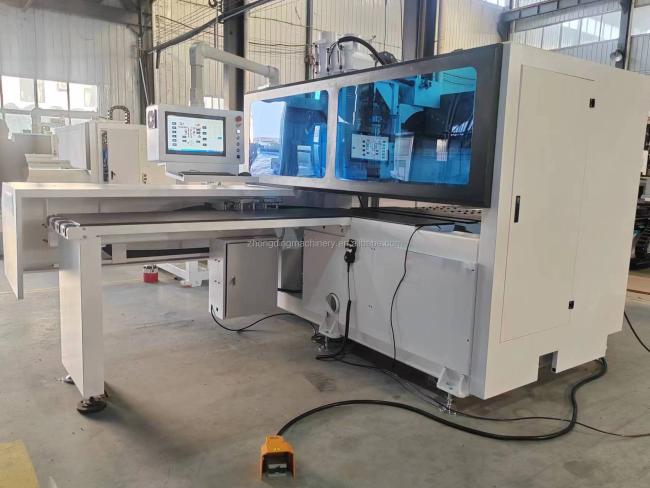

Six Side Woodworking Drilling Machine CNC Drilling Machine 19.2kw

Price Negotiable

Price: $24,000.00/sets 1-1 sets

MOQ: Negotiable

Delivery Time: Negotiable

Brand: ZHONGDING

Product Description

WHY CHOOSE US?

CUSTOMER REVIEWS

PRODUCT CONFIGURATION

Machine function	Milling, hinge hole, layer hole, guide hole, through hole, double-sided slotting, through slot, blind slot, 2 in 1, 3 in 1
Work size	X axis 5000mm Y axis 1680mm Z axis 90mm U axis 5000mm V axis 1200mm W axis 100mm A-axis 1260mm
Work piece size	Work piece MAX width (vertical) 1200mm Work piece MIN width (vertical) 50mm Work piece MAX length (vertical) 5000mm Work piece MIN length (vertical) 250mm Work piece MAX thickness (vertical) 48mm
Max processing speed	40000mm/min
Repeatability	±0.02mm
Compatible software	Haixun 4.0, Ewood and other cabinet software
Processing unit part	Proximity processing principle, alternate double-sided slotting at the same time, continuous processing of hole positions
Transfer method	Taiwan TBI ball screw drive, the screw drive error is within 0.05-0.1mm, and the cumulative error is within ±0.2mm. Italian PEK precision guide rail, extended motion guide rail, unlimited length of processing plate, One-time positioning reduces the number of additional clamp changes and improves the processing speed of the plate. Taiwan high precision helical grinding 2M rack.
Machine body	Closed inner frame structure, aging treatment. Rack stress treatment process; Annealing-quenching-tempering-aging, Ensure the stability of the host and the service life of the whole machine
Work piece clip and feeding	Using double gripper mechanism, according to the computer drilling program, automatically control the feeding and positioning of the board, Improve drilling accuracy. Effectively prevent edge banding from being scratched.
Automatic Oil Filling System	Cylinder type oiling system, all rails are supplied by independent cylinders, ensuring that all rails are evenly oiled every time.

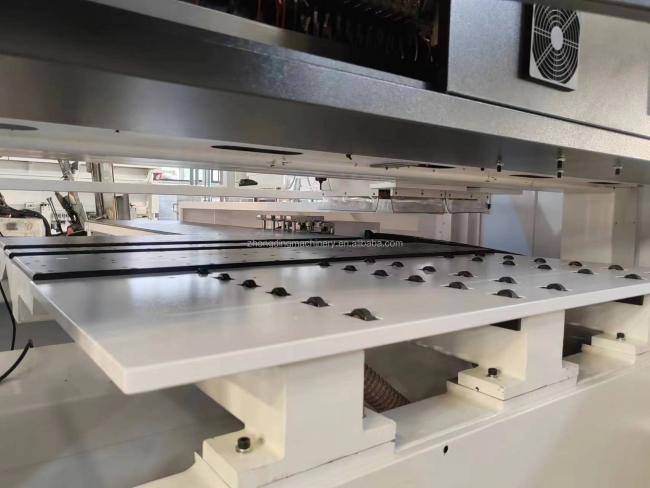

Work table	Air flotation table, roller assisted conveying table. Prevent sheet scratches

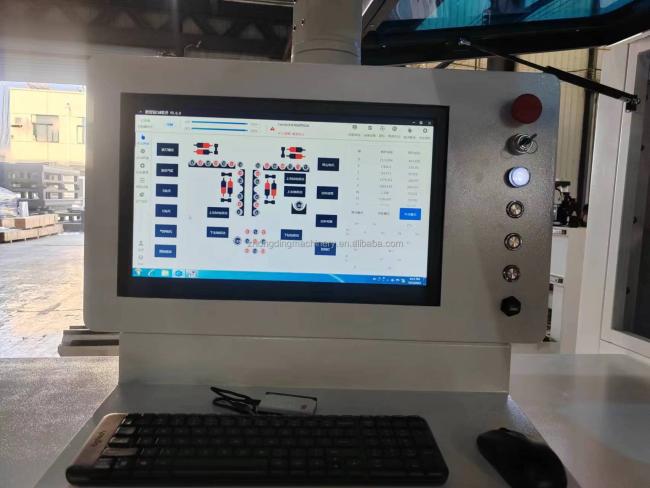

Control System	Shanghai NCSTUDIO Control System NCSTUDIO is based on modular hardware platform and adopts industrial Ethernet bus technology. From motion control elements, servo motors, system signal monitoring, servo control host to unify CNC numerical control system. Monitor the machine more comprehensively, quickly solve the failure of the machine, and reduce the failure rate Real-time power-off data storage, remote machine diagnosis, update, backup.
Motor	NCSTUDIO bus absolute value servo motor drive does not need to return to the mechanical origin
Inverter	Fuling inverter (high-end intelligent vector inverter)
Spindle motor / drill package	12+8+9 Using high-precision CNC drill bag, manufactured in accordance with international standards, after three-coordinate testing to ensure accuracy Drilling group motor power 2.2KW Drilling group motor speed 3400rmp (r/min) Spindle power 3.5KW Spindle speed 18000rmp (r/min)
Electrical components	French Schneider Electric Components Taiwan Yade Gentle Dynamic Components
Delivery positioning device	Automatic side leaning device Automatic pressing device
Cable	High flexible shielded cable
Machine size	5800x2840x2200mm
Weight	3500kg
