Door Production Door Lock Hole Drilling Machine Woodworking Machine New Condition
Price:
$2,800.00/sets 1-4 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
ZD
Product Description
Product Description

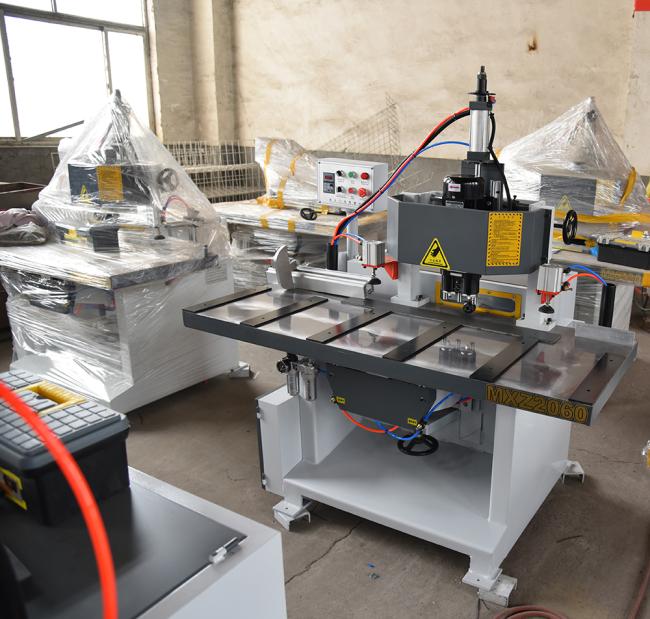

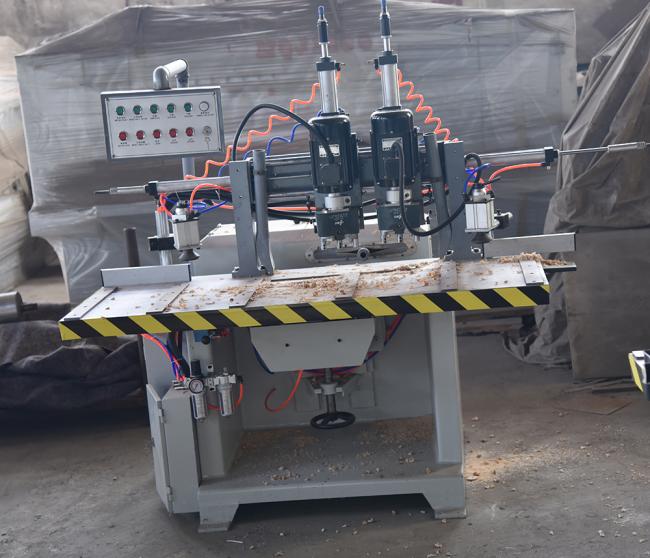

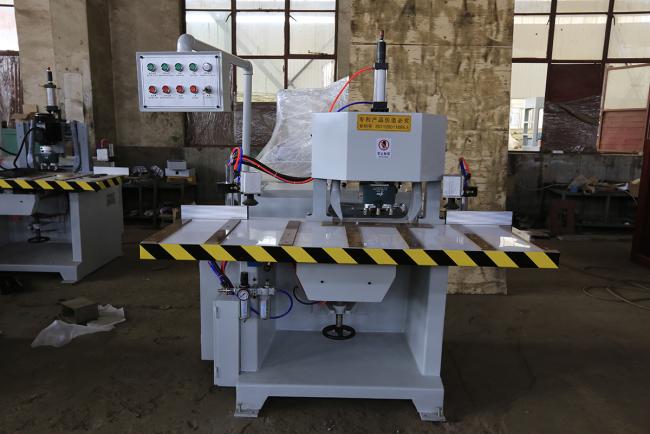

Automatic Door Lock Hole Mortising Machine
Door Lock Hole Drilling and Milling Machine
Specification
|
Model
|
|
ZD206A(Single head)
|
ZD206B(Double head)
|
|
|
Max working length
|
mm
|
2400
|
2400
|
|
|
Max working thickness
|
mm
|
100
|
100
|
|
|
Max working width
|
mm
|
1200
|
1200
|
|
|
Max slot length
|
mm
|
220
|
220
|
|
|
Max slot depth
|
mm
|
100
|
100
|
|
|
Max slot width
|
mm
|
30
|
30
|
|
|
Max drill Diameter
|
mm
|
35
|
35
|
|
|
Max drill depth
|
mm
|
55
|
55
|
|
|
Slot milling spindle speed
|
r/min
|
10000
|
10000
|
|
|
Diameter of tongue and groove knife
|
mm
|
16/18
|
16/18
|
|
|
Slot milling spindle speed
|
mm
|
0-1200
|
0-1200
|
|
|
Total power
|
kw
|
4.1
|
5.6
|
|
|
Pressure
|
mpa
|
0.5
|
0.5
|
|
|
Dimension
|
Length(mm)
|
2700
|
2700
|
|
|
|
Width(mm)
|
800
|
800
|
|
|
|
Height(mm)
|
1600
|
1600
|
|
|
Weight
|
kg
|
600
|
600
|
|
PRODUCT DETAILS

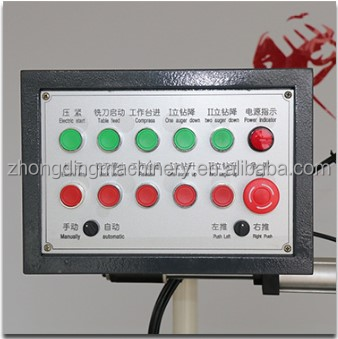

The button-type operation panel is not easy to be damaged, and the control is simple and intuitive.

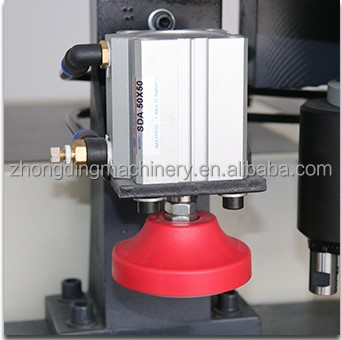

The movable high-pressure cylinder can stably fix the plate and prevent sliding. Equipped with high-quality rubber pads to protect the sheet.

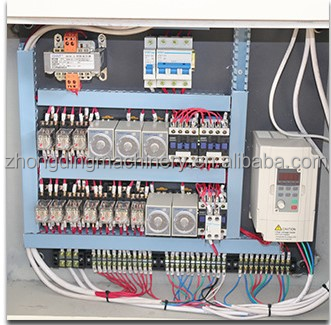

Use high-quality electrical equipment, stable and reliable performance, less faults, neat wiring, convenient debugging and safety protection.
Company Profile
Qingdao Zhongding Machinery Co.,Ltd
Qingdao Zhongding Machinery Co.,Ltd, is a leading company which is specializing in manufacturing and exporting woodworking machines. Our company has professional technology, full range of testing lines and pipelining, and four professional production lines of woodworking machine.Our main products include Precise panel saw, Edge banding machine, Multiple Drilling machine, Hot press machine, cold press machine, which had been exported to a lots of countries and regions, such as European, Southeast Asia, North America, Russia, Mid East and Australia,etc.
Packing & Delivery
Package
1.LCL SHIPMENT: Use plastic foam protect ,then ply wooden case package.
2.FCL: If the equipment enough package with 20"or 40" container , will use plastic foam package and wooden pallet.
2.FCL: If the equipment enough package with 20"or 40" container , will use plastic foam package and wooden pallet.
Shipment
1. FOB,CNF, CIF can be accepted.
2. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
2. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
FAQ
Q:Are you a manufacturer?
Yes, 15 years manufacturing experience.
Q: Do you offer installation?
Yes, 15 years manufacturing experience.
Q: Do you offer installation?
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request.
Q:What is language of the operation system?
Any language as you request.
Q:Where can we get replacement parts?
Q:What is language of the operation system?
Any language as you request.
Q:Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
Q:What technical support do you offer?
Q:What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
Q:Can you customized the machine?
Q:Can you customized the machine?
Our machines can be customized made according to buyers’ request.
Q:What other machines do you offer?
Q:What other machines do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like Edge banding machine,Sanding machine, CNC router, Drilling machine, Saw machine can be provided as well.
