Prefabricated metal structure, durable steel structure

Price Negotiable

Price: usd $49-79square meter

MOQ: 500sqm

Delivery Time: Shipped in 30 days after payment

Brand: QHHK

Product Description

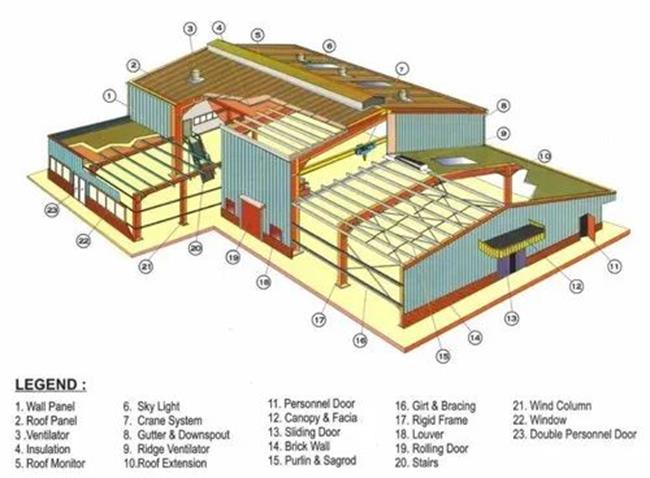

Q355 Grade Durable Design Nice Outlook Prefabricated Steel Structure Construction is a building structure made of steel, including internal support and external enclosure structure. The steel frame is made of a portal steel frame, including steel columns, steel beams, and bracing. There is a platform designed hanging below the roof beam. The portal steel frame and the external enclosure structure constitute an enclosed building structure with sufficient strength to withstand severe weather such as strong wind, rain, and snow.

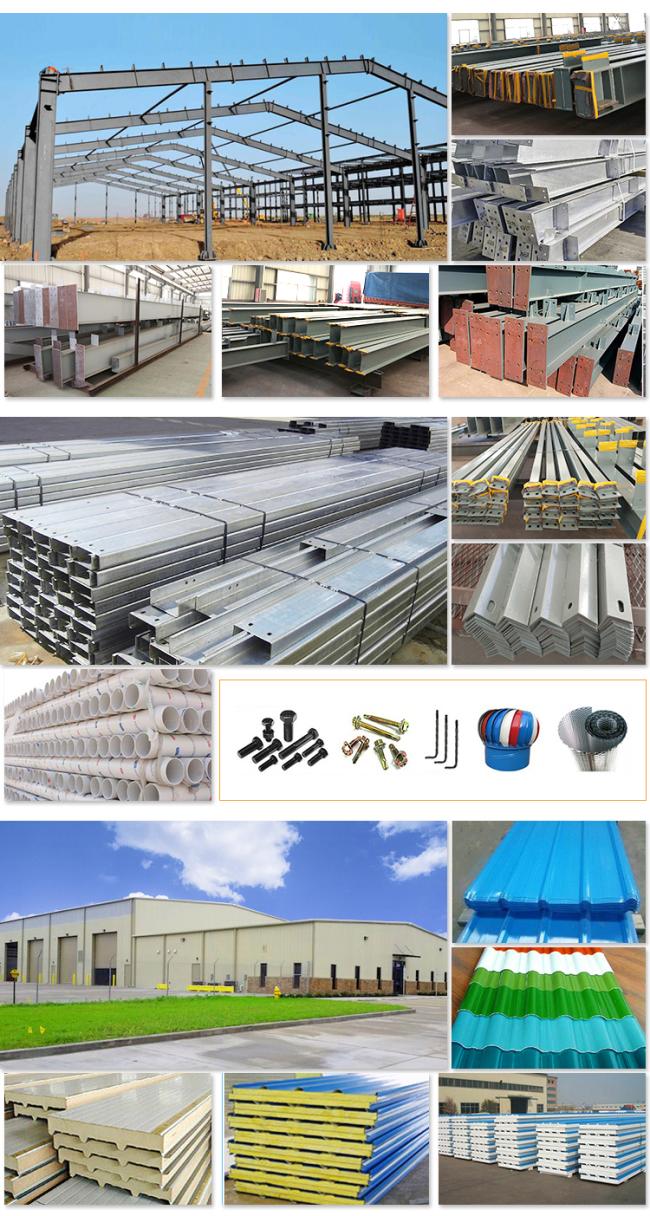

Items		Specification
Main Steel Frame	Column	Q235, Q355 Welded H Section Steel
Main Steel Frame	Beam	Q235, Q355 Welded H Section Steel
Secondary Frame	Purlin	Q235 C and Z purlin
	Knee brace	Q235 Angle Steel
	Tie Rod	Q235 Circular Steel Pipe
	Brace	Q235 Round Bar
	Vertical and Horizontal Support	Q235 Angle Steel, Round Bar or Steel Pipe
Maintenance system	Roof Panel	EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet
Maintenance system	Wall Panel	Sandwich Panel / Corrugated Steel Sheet
Accessories	Window	Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window
	Door	Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
	Rainspout	PVC
Live load on Roof		In 120kg/Sqm (Color steel panel surrounded)
Wind Resistance Grade		12 Grades
Earthquake-resistance		8 Grades
Structure Usage		Up to 50 years
Temperature		Suitable temperature.-50°C~+50°C
Certification		CE, SGS, ISO9001:2008, ISO14001:2004
Finishing Options		Vast array of colors and textures available
Paint Options		Alkyd paiting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized.
