Silicone post Insulator for power Station

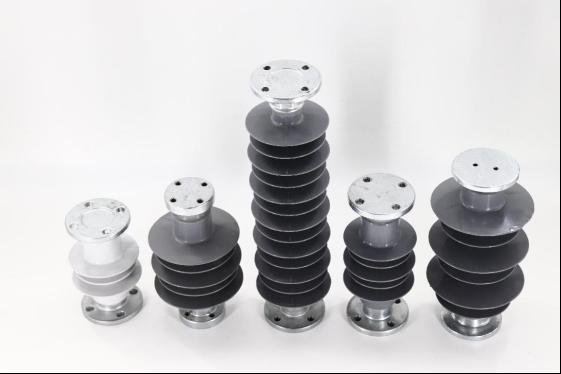

SILICONE INSULATOR STATION POST
Product:
1.Product Description of SILICONE INSULATOR STATION POST:
Overhead Line Polymer Insulator is made of high-quality silicone rubber, which is durable and reliable. It has a high withstand voltage, and can provide good electrical insulation. It is also resistant to ultraviolet rays, so it won't fade or degrade overtime. The size of the product can be customized according to customer's needs. Moreover, it is flame retardant and has a grey color, making it the perfect choice for overhead line applications.
2. Product Details of SILICONE INSULATOR STATION POST
Note:
1.Applied standard:IEC62231.
|
Products Code |
Voltage (kV) |
SML(kN) |
Bending Strength (kN) |
Section Length (mm) |
Arcing Distance (mm) |
Creepage Distance (mm) |
Wet Power Frequency Withstand Voltage(kV) |
Lightning Impulsed Withstand Voltage(kV) |
Top Flange (mm) |
Bottom flange (mm) |
| T0308 | 3 | 20 | 9 | 245±1 | 170 | 300 | 15 | 95 |
4 -M18 Φ127*Φ162 |
4 -M18 Φ127*Φ162 |
| T0309 | 12 | 20 | 20 | 156±1 | 212 | 450 | 53 | 150 |
Torx Flange 4 -M12 Φ152*108 |
Torx Flange 4 -M12 Φ152*108 |
| T0310 | 12 | 50 | 12.5 | 253±1 | 190 | 420 | 40 | 110 |
4-M12 Φ76*Φ100 |
4-M12 Φ76*Φ100 |
| T2508 | 25 | 50 | 8 | 315±2 | 270 | 750 | 75 | 170 |
4-M18 Φ140*Φ174 |
4-M18 Φ140*Φ174 |
| T2508 | 25 | 50 | 8 | 400±2 | 330 | 1000 | 85 | 185 |
4-M18 Φ140*Φ174 |
4-M18 Φ140*Φ174 |
| T2509 | 25 | 60 | 5 | 534±5 | 400 | 1200 | 95 | 250 |
4 -M11 Φ127*Φ162 |
4 -M11 Φ162*Φ127 |
| T2510 | 25 | 60 | 8 | 495±5 | 450 | 1300 | 125 | 250 |
4 -M18 Φ127*Φ162 |
4 -M18 Φ127*Φ162 |
| T2511 | 25 | 60 | 5 | 514±5 | 400 | 1200 | 95 | 250 |
4 -M11 Φ127*Φ162 |
4 -M11 Φ162*Φ127 |
| FZ-36/12.5 | 36 | 50 | 12.5 | 445±5 | 340 | 1035 | 95 | 200 |
4 -Φ10 Φ76*Φ100 |
4 -Φ10 Φ76*Φ100 |
| FZ-66/10 | 66 | 50 | 10 | 760±5 | 620 | 1480 | 160 | 370 |
4 -Φ18 Φ127*Φ170 |
4 -Φ18 Φ127*Φ170 |
| FZ-132/10 | 132 | 50 | 10 | 1220±5 | 1000 | 270 | 230 | 550 |
4 -Φ18 Φ127*Φ170 |
4 -Φ18 Φ127*Φ170 |
| FZ-132/12 | 132 | 50 | 12 | 1360±5 | 1220 | 320 | 276 | 720 |
4 -Φ18 Φ140*Φ180 |
4 -Φ18 Φ140*Φ180 |
Packaging and Shipping of Overhead Line Polymer Insulator:
The Overhead Line Polymer Insulator should be packaged in a safe and secure manner so as to not be damaged during shipment. The package should be able to withstand the elements, such as rain or snow, as well as the vibration of the transport vehicle. The package should also be able to protect the insulator from any other outside forces that could potentially damage it. Once the package is sealed, it should be labeled with the correct address and contact information of the recipient.
The Overhead Line Polymer Insulator should be shipped on a reliable and secure transport vehicle, such as a truck or aircraft. The package should be placed on the transport vehicle carefully and securely, ensuring that it will not be damaged during transit. Once the package has been loaded onto the transport vehicle, it should be tracked throughout its journey to ensure it arrives safely and on time at its destination.
