Supermicro Ultra SuperServer SYS-220U-TNR 2U Rackmount Server with Dual Socket P+ 3rd Gen Intel Xeon Scalable Processors and 32 DIMM Slots
Price:
Negotiable
MOQ:
1/set
Delivery Time:
2-3 work days
Brand:
Supermicro
Product Description
Supermicro Ultra SuperServer SYS-220U-TNR
Key Applications
Virtualization, HPC, Cloud Computing, High End Enterprise Server, Software Defined Storage, Application Tier Service Provider, 5G/Telco
Key Features
- Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
- Intel® C621A Chipset
- 32 DIMM Slots supporting up to 8TB DRAM
- Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM)
- 3200/2933/2666 ECC DDR4 LRDIMM/RDIMM
- Intel® Optane™ Persistent Memory 200 series
- Comprehensive PCIe 4.0 expansion capabilities
- Flexible networking options
- 24 hot-swap drive bays (22 hybrid NVMe/SATA/SAS + 2 SATA/SAS)
- 4 heavy duty fans with optimal speed control
- 1600W redundant Titanium level power supplies
Technical Specifications
| Form Factor | 2U Rackmount Enclosure: 437 x 89 x 717.2mm (17.2" x 3.5" x 28.2") Package: 625 x 253 x 1154mm (24.6" x 9.96" x 45.43") |
|---|---|
| Processor | Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Up to 40C/80T; Up to 60MB Cache per CPU |
| GPU Support | Max GPU Count: Up to 4 double-width or 6 single-width GPUs Supported GPU: NVIDIA PCIe: T4, RTX A6000, RTX A5000, A40, A30, A16, A2, A100, A10 |
| System Memory | Slot Count: 32 DIMM slots Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM Supports Intel® Optane™ persistent memory 200 series |
| Drive Bays Configuration | Total 24 bays: 22 front hot-swap 2.5" NVMe/SAS*/SATA drive bays + 2 front hot-swap 2.5" SAS*/SATA drive bays (*SAS support may require additional storage controller and/or cables) |

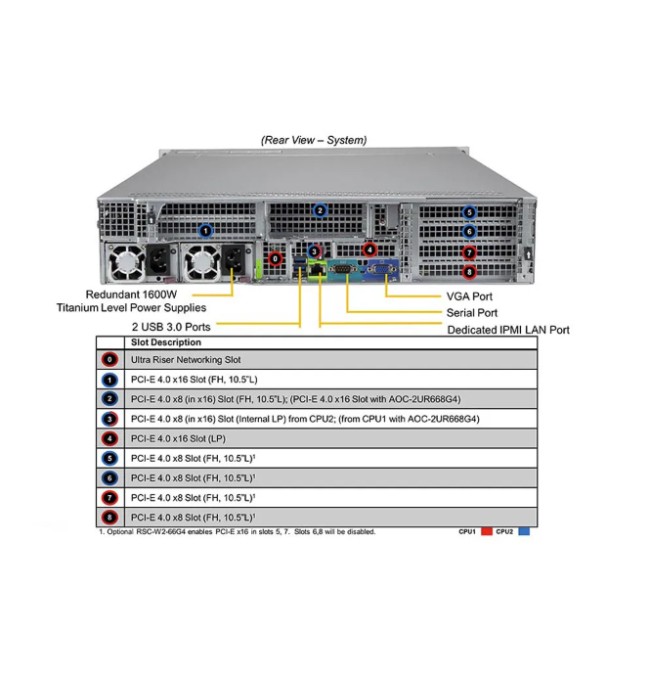

| Expansion Slots | 1 PCIe 4.0 x16 FH/10.5"L slot 5 PCIe 4.0 x8 FH/10.5"L slots 1 PCIe 4.0 x8 LP slot 1 PCIe 4.0 x16 LP slot |
| On-Board Devices | SATA: SATA (6Gbps); RAID 0/1/5/10 support NVMe: NVMe; RAID 0/1/5/10 support Chipset: Intel® C621A Network Connectivity: Various 10GbE options available |
| Power Supply | 1x 1600W Redundant Titanium Level (96%) Hot-plug power supply |
| Dimensions and Weight | Gross Weight: 63 lbs (28.6 kg) Net Weight: 37 lbs (16.8 kg) Available Color: Black Front & Silver Body |
