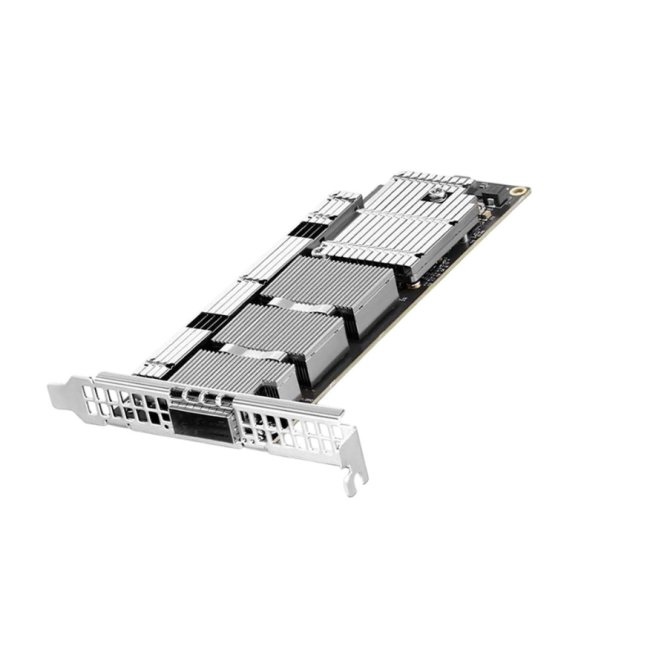

NVIDIA Mellanox MCX75310AAC-NEAT Ethernet NIC with 400Gb/s Ethernet PCIe Gen 5.0 and Secure Boot Enabled
Price:
Negotiable
MOQ:
1/set
Delivery Time:
2-3 work days
Brand:
NVIDIA Mellanox
Product Description
NVIDIA Mellanox MCX75310AAC-NEAT
ConnectX Ethernet NICs offer best-in-class network performance, serving low-latency, high-throughput applications with one, two, or four ports at 10, 25, 40, 50, 100, 200, and up to 400 gigabits per second (Gb/s) Ethernet speeds.
Product Specifications
| Adapter Card Size | PCIe Half Height, Half Length 2.71 in. x 6.6 in. (68.90mm x 167.65 mm) |
| Interfaces | PCI Express Gen 4.0/5.0: SerDes 16/32GT/s, x16 lanes (Gen 3.0 compatible) |
| Networking Port | Single OSFP Infiniband and Ethernet |
| Data Rate |
|
| Protocol Support |
|
| Capabilities | Secure Boot Enabled, Crypto Enabled |
| Electrical and Thermal Specifications | Voltage: 12V, 3.3VAUX | Maximum Current: 100mA |
| Typical Power with Passive Cables in PCIe Gen 5.0 x16 | 25.9W |
| Temperature | Operational: 0°C to 55°C | Non-operational: -40°C to 70°C |
| Humidity | Operational: 10% to 85% Relative Humidity | Non-operational: 10% to 90% Relative Humidity |
| Altitude (Operational) | 3050m |
