China NVIDIA Mellanox MCX75310AAS-NEAT Ethernet NIC with PCIe Gen 4.0/5.0, 400Gb/s Ethernet, and Secure Boot for sale

NVIDIA Mellanox MCX75310AAS-NEAT Ethernet NIC with PCIe Gen 4.0/5.0, 400Gb/s Ethernet, and Secure Boot

Price Negotiable
Price: Negotiable
MOQ: 1/set
Delivery Time: 2-3 work days
Brand: NVIDIA Mellanox
Product Description
NVIDIA Mellanox MCX75310AAS-NEAT Network Adapter
NVIDIA Mellanox ConnectX Ethernet NICs deliver exceptional network performance for low-latency, high-throughput applications. These adapters support one, two, or four ports at speeds ranging from 10 to 400 gigabits per second (Gb/s) Ethernet.
Product Specifications
Adapter Card Size PCIe Half Height, Half Length 2.71 in. x 6.6 in. (68.90mm x 167.65 mm)
Interfaces PCI Express Gen 4.0/5.0: Serdes 16/32GT/s, x16 lanes (Gen 3.0 compatible)
Networking Port Single OSFP Infiniband and Ethernet
Data Rate
  • Infiniband (default mode): NDR/NDR200/HDR/HDR100/EDR/FDR/SDR
  • Ethernet: 400/200/100/50/40/10/1 Gb/s Ethernet
Protocol Support
  • Infiniband: IBTA v1.5a
  • Auto-negotiation: NDR (4 lanes x 100Gb/s per lane) port, NDR200 (2 lanes x 100Gb/s per lane) port, HDR (50Gb/s per lane) port, HDR100 (2 lane x 50Gb/s per lane), EDR (25Gb/s per lane) port, FDR (14.0625Gb/s per lane), 1x/2x/4x SDR (2.5Gb/s per lane)
  • Ethernet: 400GAUI-4 C2M, 400GBASE-CR4, 200GAUI-4 C2M, 200GBASE-CR4, 100GAUI-2 C2M, 100GBASE-CR4, 100GBASE-CR2, 100GBASE-CR1, 50GAUI-2 C2M, 50GAUI-1 C2M, 50GBASE-CR, 50GBASE-R2, 40GBASE-CR4, 40GBASE-R2, 25GBASE-R, 10GBASE-R, 10GBASE-CX4, 1000BASE-CX, CAUI-4 C2M, 25GAUI C2M, XLAUI C2M, XLPPI, SFI
Capabilities Secure Boot Enabled, Crypto Disabled
Electrical and Thermal Specifications
  • Voltage: 12V, 3.3VAUX
  • Maximum Current: 100mA
Typical Power with Passive Cables in PCIe Gen 5.0 x16 24.9W
Temperature
  • Operational: 0°C to 55°C
  • Non-operational: -40°C to 70°C
Humidity
  • Operational: 10% to 85% Relative Humidity
  • Non-operational: 10% to 90% Relative Humidity
Altitude (Operational) 3050m

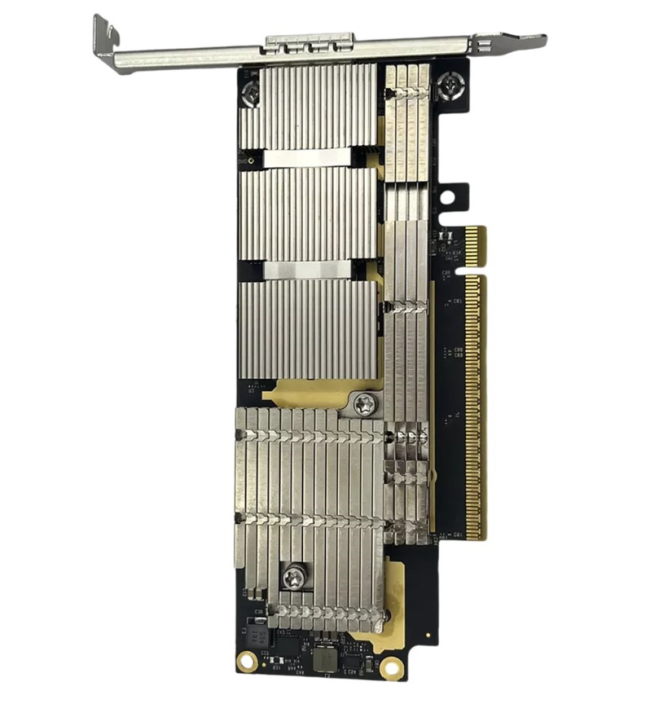

NVIDIA Mellanox MCX75310AAS-NEAT Network Adapter front view NVIDIA Mellanox MCX75310AAS-NEAT Network Adapter technical specifications
