Brocade G630 Fibre Channel Switch with 128 Ports, 4Tb/s Bandwidth, and Dual Hot-Swappable Power Supplies
Price:
chat
MOQ:
1
Delivery Time:
5-8work days
Brand:
Brocade
Product Description

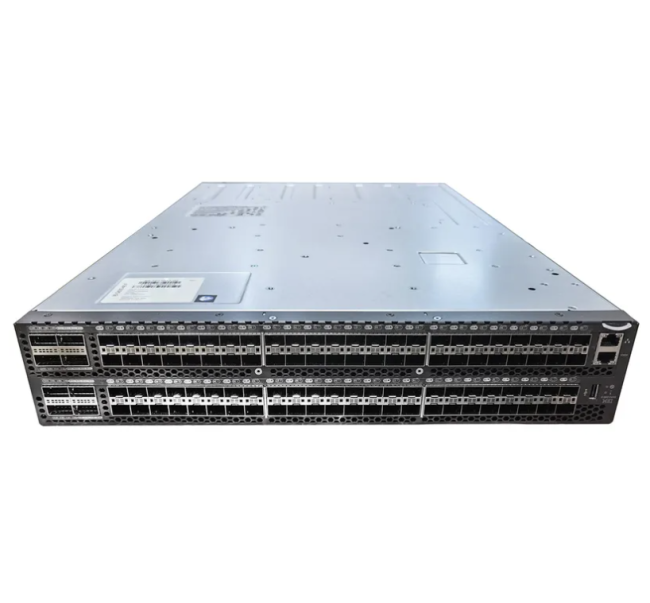

Brocade G630 Switch
Purpose-built to meet the low-latency and high IOPS requirements of flash storage, this high-density switch is designed to tackle the growing requirements of large and dynamic environments. The Brocade® G630 is a high-density building block designed to support NVMe storage environments, demanding workloads and data center consolidation.
Build a Network That Scales as Fast as Your Business
The Brocade G630 Switch delivers industry-leading 32G Fibre Channel performance across 128 ports in a 2U form factor. This switch enables organizations to increase scale with 33 percent more connectivity at double the speed with Brocade Gen 6 technology.
Deliver Leading-Edge, Low-Latency NVMe Performance with Trusted Reliability
The Brocade G630 delivers seamless integration with the next generation of NVMe flash storage, without a disruptive rip-and-replace. With this switch, organizations can reap the benefit of running NVMe and SCSI concurrently on the same network to ramp up a gradual technology transition to NVMe performance.
Automate for Operational Efficiency
Power IT with simple and open automation to increase productivity. By automating daily repetitive tasks, IT organizations can improve efficiency and dramatically decrease the risk of operational mistakes.
Technical Specifications
| Lifecycle | Active |
|---|---|
| Access Gateway | Not available |
| Bandwidth | 4 Tb/s |
| Certified Maximum | Single fabric: 56 domains, 7 hops MPR fabric: 19 hops |
| Fibre Channel Performance | Fibre Channel: 4.25Gb/s line speed, full duplex; 8.5Gb/s line speed, full duplex; 14.025Gb/s line speed, full duplex; 28.05Gb/s line speed, full duplex; auto-sensing of 4, 8, 16, and 32G port speeds. Auto-sensing of 4×32, 4×16, 4×8, 4×4G speeds on the QSFP ports with Brocade FOS v8.2.0. |
| FICON Support | Not available |
| Frame Based ISL Trunking | 256Gb/s frame-based trunk (optional) |
| Power | 942W, dual hot-swappable power supplies |
| Size (mm) | 440.0 (W) x 86.70 (H) x 609.60 (D) |
| Total Line Rate Ports | 48 to 128 @32G |
