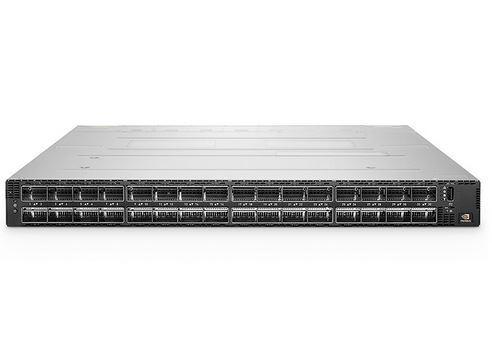

NVIDIA MQM9700-NS2F 64-ports 400Gb/s 32 OSFP ports managed P2C airflow (forward)
Product Description
64-ports 400Gb/s, 32 OSFP ports, managed, power-to-connector (P2C) airflow (forward).
The NVIDIA Quantum-2-based QM9700 series of switch systems deliver 64 ports of 400Gb/s InfiniBand per port, packed into a 1U standard chassis. Each switch carries an impressive 51.2 terabits per second (Tb/s) of aggregated bidirectional throughput and a landmark capacity exceeding 66.5 billion packets per second (BPPS). Supporting NVIDIA’s advanced 400Gb/s interconnect technology, NVIDIA Quantum-2 is a high-speed, extremely low-latency, and scalable networking solution. Key features incorporated include state-of-the-art technologies such as remote direct-memory access (RDMA), adaptive routing, and NVIDIA® Scalable Hierarchical Aggregation and Reduction Protocol (SHARP)™
|
Performance |
400Gb/s per port |
|
Switch radix |
64 400Gb/s non-blocking ports with aggregate data throughput up to 51.2Tb/s |
|
Connectors and cabling |
32 octal small form-factor pluggable (OSFP) connectors; passive or active copper or active fiber cable; optical module |
|
Power supply |
QM9700/QM9790: > Input range: 200–240VAC > US min: 2 phases of 100–100V-in total, at least 208V > 1+1 redundant and hot-swappable power > 80 Gold+ and ENERGY STAR certified QM9701: > DC bus bar > Input: 48VDC |
|
Cooling |
Front-to-rear or rear-to-front Cooling option: 6+1 hot-swappable fan unit |
|
Management ports |
> 1x USB 3.0 x1 > 1x USB for I2C channel 1x RJ45 > 1x RJ45 > 1x RJ45 (UART) |
|
CPU |
x86 Coffee Lake i3 |
|
System memory |
Single 8GB, 2,666 mega transfers per second (MT/s), DDR4 SO-DIMM |
|
Storage |
M.2 SSD SATA 16GB 2242 FF |
|
Software |
MLNX-OS |
|
System weight |
14.5kg |
|
System dimensions |
> Height: 1.7in (43.6 mm) > Width: 17.0in (438 mm) > Depth: 26.0in (660.4 mm) |
|
Rack mount |
1U rack mount |
|
Environmental conditions |
Temperature: > Operational: Forward air flow: 0–35°C Reverse air flow: 0–40°C Non-operational: -40–70°C > Humidity: Operating 10–85% non-condensing Non-operating 10–90% non-condensing > Altitude: Up to 3,050m |
|
EMC (emissions) |
CE, FCC, VCCI, ICES, and RCM |
|
Product safety/compliant/certified |
RoHS, CB, cTUVus, CE, and CU |
