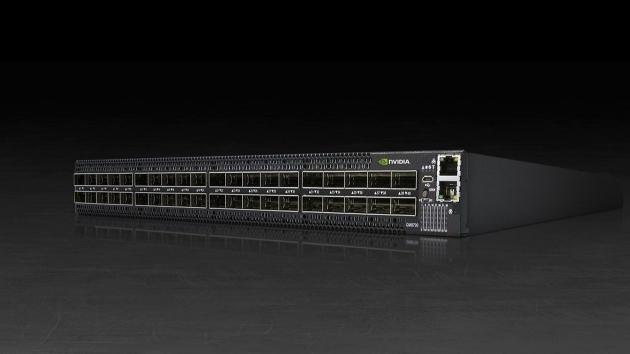

NVIDIA MQM8700-HS2F 40 QSFP56 ports 2 Power Supplies (AC)
Product Description
Faster servers combined with high-performance storage and applications that use increasingly complex computations are causing data bandwidth requirements to spiral upward. As servers are deployed with next-generation processors, HPC, AI,and hyperscale cloud environments will need every last bit of network bandwidth.NVIDIA Quantum QM8700 and QM8790 200 gigabits per second (Gb/s) InfiniBand fixed-configuration switches provide up to forty 200Gb/s ports with 16 terabits per second (Tb/s) of non-blocking bandwidth or eighty 100Gb/s ports with full bidirectional bandwidth per port with extremely low latency—an ideal choice for building flexible and scalable data centers at any size.
|
Performance |
200Gb/s per port |
|
Switch radix |
40 non-blocking ports with aggregate data throughput up to 16Tb/s |
|
Connectors and cabling |
Quad small form-factor pluggable (QSFP56) connectors; passive or active copper or active fiber cable; optical module |
|
Power supply |
1+1 redundant and hot- swappable power Input range: 100-127VAC,200-240VAC 80 Gold+ and ENERGY STAR certified power supplies |
|
Management ports |
1x RJ45 1x console port: RS232 1x micro USB |
|
CPU |
Broadwell ComEx D-1508 2.2GHZ |
|
System memory |
Single 8GB |
|
Software |
MLNX-OS |
|
System weight |
1 PSU: 11.4kg 2 PSUs: 12.48kg |
|
System dimensions |
Height: 1.7 in (43.6 mm) Width: 17 in (433.2 mm) Depth: 23.2 in (590.6 mm) |
|
Mount rack |
1U rack mount |
|
Operating Conditions |
Temperature: > Operating: 0ºC-40ºC > Non-operating: -40ºC-70ºC Humidity: > Operating: 10%-85% non- condensing > Non-operating: 10%-90% non-condensing Altitude: up to 3,200m |
