Fibra Optica Adss 24 48 96 144 288 50/125 576 Core loose tube cable fiber optical
Product Description:

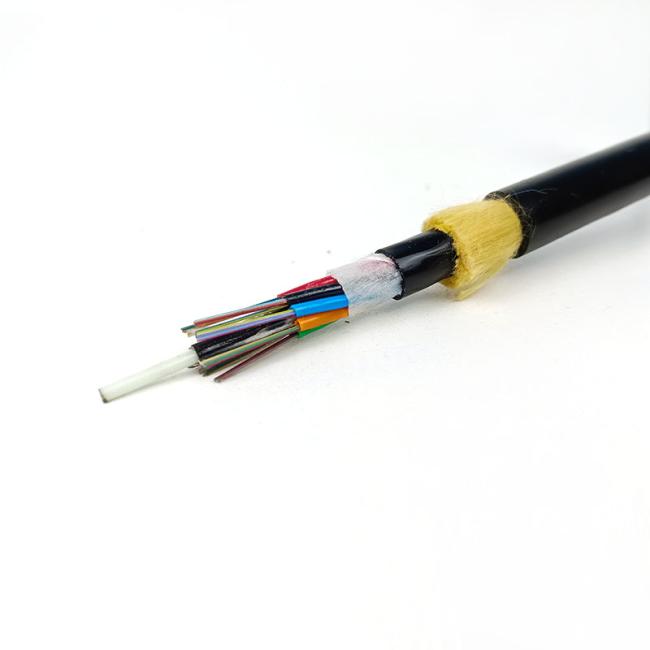

ADSS Outdoor Cable are positioned into a loose tube made of high modulus plastics Filled with a water-blockingfilling compound, the tube is stranded around FRP as a non-metallic central strength member into compact andcircular cable core ADSS cables are ideal for outside plant aerial applications, the lightweight cable andall-dielectric construction allow cost-effective and safe installation in high voltage overhead power lines.
Features:
- PE or AT sheath ensures safety of cable in high voltage environment.
- All-dielectric structure and light weight provide easy. installation and good electromagnetic resistance.
- Reliable performance of moistureproof and waterproof.
Technical Parameters:
|
Diameter (mm) |
Weight (kg/km) |
Normal tension (kN) |
Max. tension (kN) |
Breaking strength (kN) |
Strength member CSA (mm2) |
Elasticity modulus (kN/mm2) |
Thermal expansion ×10-6/K |
|
| PE out sheath | AT out sheath | |||||||
| 11.8 | 117 | 124 | 1.5 | 4 | 10 | 4.6 | 7.6 | 1.8 |
| 12.0 | 121 | 129 | 2.25 | 6 | 15 | 7.6 | 8.3 | 1.5 |
| 12.3 | 126 | 134 | 3.0 | 8 | 20 | 10.35 | 9.45 | 1.3 |
Applications:
- Railways, power and telecommunication pole routes.
- Suitable for installation on poles and on the power distribution network.
- Aerial self-supporting applications at short, medium and long span distances.
- Ideal for transmission lines with high electrical field strength.
- Can be used in areas suffered from frequent lightningldeal for transmission lines with high electrical field strength.
Customization:
Brand Name: ODM/OEM
Model Number: Single Mode
Place of Origin: China
Certification: ISO9001-2000, RoHS, CE
Minimum Order Quantity: 1000 meters
Price: Negotiation
Packaging Details: 2km/Drum
Delivery Time: 10-20days
Payment Terms: T/T, Western Union
Supply Ability: 2000km/Month
Fiber Type: Single-mode Or Multi-mode
Length: Various Lengths
Application: Outdoor
Storage Temperature: -40℃~+85℃
Cable Color: Black
