4 6 12 24 Core Single Mode 9/125 Fiber Optic Cable Armored for Telecommunication
SM 9/125 Outdoor Armored 4 6 12 24 Core Singlemode Fiber Optic Cable
Product Description:

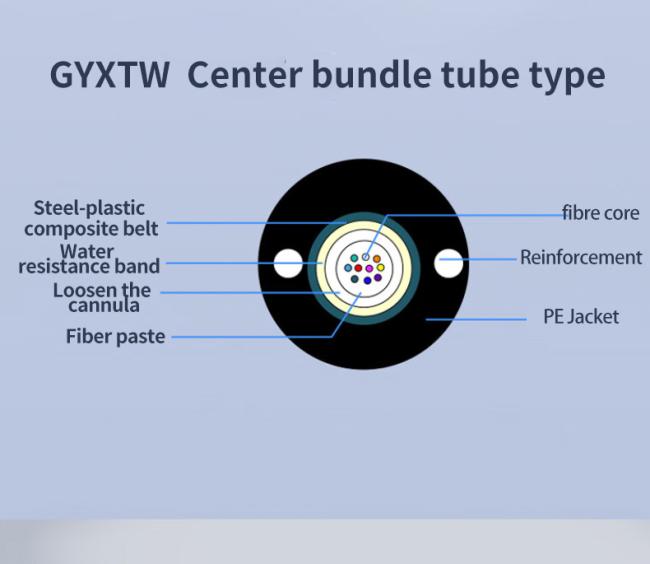

The structure of GYXTW cable is 250µm optical fiber ribbon is inserted into a loose tube of high modulus material. The loose tube is filled with gel filling compound. The loose tube is covered by a PSP longitudinal. Water-blocking material is added between the metallic strength member and loose tube to ensure the compactness of optical cable and longitudinal water seepage of optical cable.Two parallel steel wires are placed on both sides,and then the cable is completed with PE outer sheath.
Low dispersion and attenuation
Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties
Double-jacket structure make cable have nice properties of moisture resistance and crush resistance
With small cable diameter, light cable weight, easily to lay.
To fill the single mode or multi-mode fibers into the PBT loose tube made of high modulus polyester.
The inside of the tube is filled with water-proof compounds.
The outside of loose tube is longitudinally wrapped with plastic coated steel tapes.
Between the steel tape and the loose tube, water-proof material is filled to ensure the compactness and the water resistence of the cable.
Two parallel steel wires are placed at the two sides of the steel tape. The steel wires are all inside the (PE) outer jacket.
Features:
* Material of loose tube has good mechanical properties and temperature characteristics
* Material of loose tube has good hydrolysis resistance and high strength
* The tube is filled with special filler to provide critical protection for the fiber
* Good lateral pressure resistance and softness
* Double chrome plating plastic-coated steel tape (PSP) improves the moisture resistance of optical cables
* The two parallel steel wires provides enough tensile strength
* Small diameter, light weight, easy for laying
Technical Parameters:
Optical Charateristics
Structure and Technical Specifications
| Fiber Count |
Nominal Diameter (mm) |
Nominal Weight (kg/km) |
Allowable Tensile Load (N) |
Allowable Crush Resistance (N/100mm) |
||
| Short Term | Long Term | Short Term | Long Term | |||
| 2~12 | 7.8 | 60 | 1500 | 600 | 1500 | 600 |
| 14~24 | 8.5 | 85 | 1500 | 600 | 1500 | 600 |
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people for
more detailed information.
We produce and test cable comply with following standard
| Mechanical Performance | |
| Max Tension Performance | IEC 60794–1-2-E |
| Max. Operation Tension | IEC 60794–1-2-E1 |
| Crush Test | IEC 6079 –1-2-E3 |
| Impact Test | IEC 60794–1-2-E4 |
| Repeated Bending | IEC 60794–1-2-E6 |
| Torsion Test | IEC 60794–1-2-E7 |
| Cable bend | IEC 60794–1-2-E11A |
| Attenuation Coefficient | ITU-T G.652 |
| Structural Test | IEC-60793-1-20 |
| Environmental Performance | |
| Temperature Cycling | IEC 60794–1-2-F1 |
| Water Penetration | IEC 60794–1–2-F5B |
| Filing Compound Flow | IEC 60794-1-E14 |
Applications:
Installed in duct, direct burial.
FTTx.
Customization:
Brand Name: ODM/OEM
Model Number: Single Mode
Place of Origin: China
Certification: ISO9001-2000, RoHS, CE
Minimum Order Quantity: 1000 meters
Price: Negotiation
Packaging Details: 2km/Drum
Delivery Time: 10-20days
Payment Terms: T/T, Western Union
Supply Ability: 2000km/Month
Fiber Type: Single-mode Or Multi-mode
Length: Various Lengths
Application: Outdoor
Storage Temperature: -40℃~+85℃
Cable Color: Black
