ODM OEM Figure 8 Cable Self Supporting Fiber Optic Cable 12 Core Single Mode GYTC8S
Manufacturing Outdoor Optical Fiber Figure 8 Cable 12 Core Fiber Optic Cable GYTC8S
Product Description:

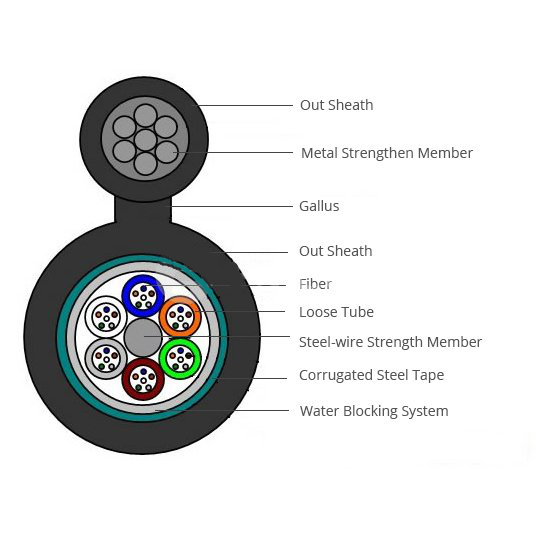

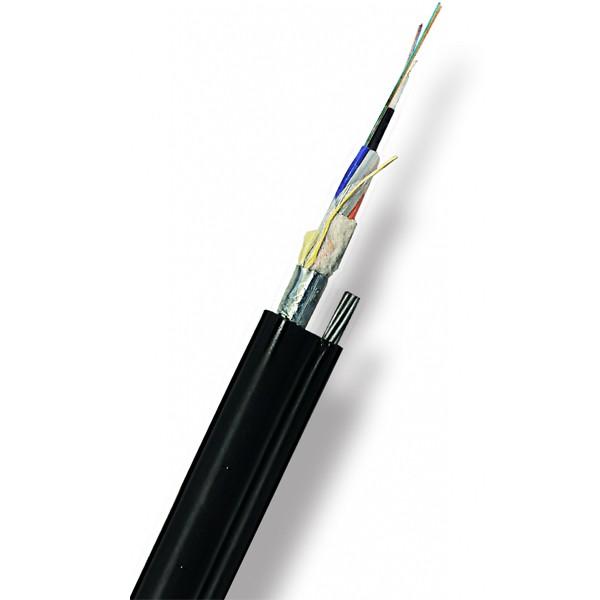

GYTC8S is a typical self-supporting outdoor fiber optical cable. The mental strength member is made up of stranded wires as the supporting part are completed with a polyethylene(PE) sheath to be figure 8 structure. Corrugated steel tape armored and PE outer sheath providing crush resistance and gun shot resistance features. The steel-wire strength member as the central strength improves the tensile strength and it is surrounded by the loose tube and water blocking system. It's suitable for installation in aerial, used for long distance and LAN communication systems.
Features:
1, Small cable diameter, cross section shows figure 8
2,Self-supporting stranded wires, easily to install
3,Low dispersion and attenuation
4,Excellent mechanical and environmental performance
5,Water blocking system to improve the water-proof ability
6,Steel-wire strength member ensures tensile strength
7,Corrugated steel tape armored and PE outer sheath improve crush resistance
8,Outdoor aerial application
9,Used for long-haul communication Used for LAN communication,Subscriber network systems,Junction communication systems,CATV & Computer networks system
Technical Parameters:
|
Cable Type
|
Fiber Count
|
Cable Diameter mm
|
Cable Weight kg/km
|
Tensile Strength
|
Crush Resistance
|
Bending Radius
|
|
Long/Short Term
|
Long/Short Term
|
Static/Dynamic
|
||||
|
N
|
N/100mm
|
mm
|
||||
|
GYTC8S
|
2-30
|
9.8*18.5
|
166
|
2000/6000
|
300/1000
|
10D/20D
|
|
GYTC8S
|
32-48
|
10.6*19.3
|
180
|
2000/6000
|
300/1000
|
10D/20D
|
|
GYTC8S
|
50-60
|
10.6*19.6
|
190
|
2000/6000
|
300/1000
|
10D/20D
|
|
GYTC8S
|
62-72
|
11.3*20.3
|
217
|
2000/6000
|
300/1000
|
10D/20D
|
|
GYTC8S
|
74-84
|
12.7*21.7
|
252
|
2000/6000
|
300/1000
|
10D/20D
|
|
GYTC8S
|
86-96
|
12.7*21.7
|
252
|
2000/6000
|
300/1000
|
10D/20D
|
Applications:
Ideal Solution by Using Figure 8 Self-supporting Cable
As the common see self-supporting aerial cables, figure 8 self-supporting aerial fiber optic cable are designed for easy and economical one-step installation and widely used in long haul and building network communication.
Customization:
Brand Name: ODM/OEM
Model Number: Single Mode
Place of Origin: China
Certification: ISO9001-2000, RoHS, CE
Minimum Order Quantity: 1000 meters
Price: Negotiation

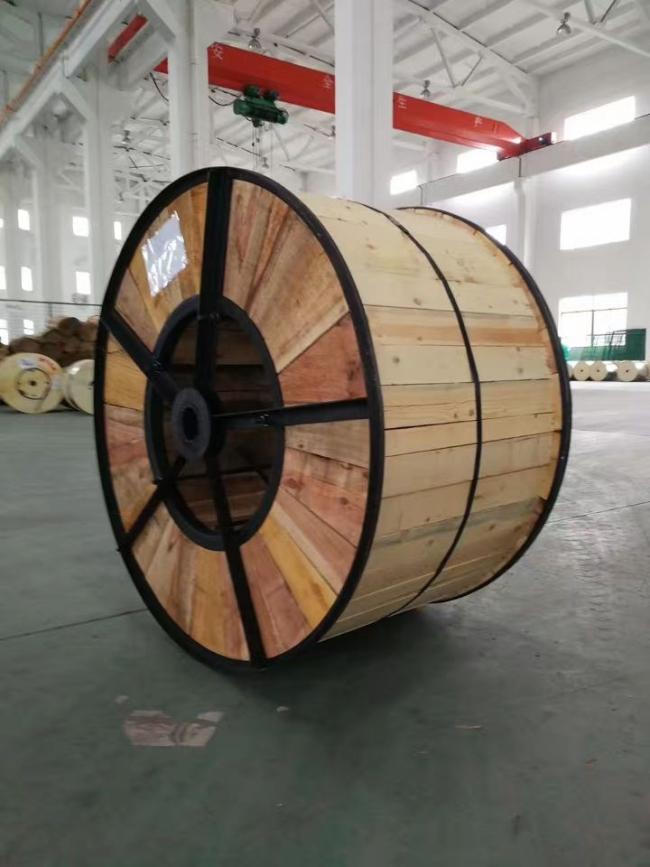

Packaging Details: 2km/Drum
Delivery Time: 10-20days
Payment Terms: T/T, Western Union
Supply Ability: 2000km/Month
Fiber Type: Single-mode Or Multi-mode
Length: Various Lengths
Application: Outdoor
Storage Temperature: -40℃~+85℃
Cable Color: Black
Company Profile:
We are based in Guangdong, China, start from 2014,sell to South Asia(20.00%),Domestic Market(17.00%),Africa(10.00%),South America(9.00%),North America(8.00%),Southern Europe(6.00%),Western Europe(6.00%),Mid East(6.00%),Eastern Europe(5.00%),Northern Europe(5.00%),Central America(5.00%),Oceania(2.00%),Eastern Asia(1.00%). There are total about null people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber optic splice closure,FTTH box,Fiber optic pigtail,Fiber optic patch panel,Fiber optic connector
4. why should you buy from us not from other suppliers?
Strong R & D ability Factory for producing fiber optic products Professional service
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
