FTTH 1Core 2 Core G657A2 G657A1 Optical Cable Self Support Fiber Optic Cable Steel Wire
Product Description:
Features:
• Flex durable fiber to provide greater bandwidth and enhance network transmission characteristics
• Two parallel metallic strength member to protect the fiber and provide adequate tension and pressure
• single metallic strength member makes optical cable having good tensile performance
• Optical cable has simple structure, light weight and strong practicability
• unique groove design, Easy peeled off and splice, simplify the installation and maintenance
• Low smoke halogen-free flame-retardant sheath, pro-environment
Technical Parameters:
Fiber Parameters
| No. | Items | Unit | Specification | |
| G.657A1 | ||||
| 1 | Mode Field Diameter | 1310nm | μm | 8.8±0.4 |
| 1550nm | μm | 9.8±0.5 | ||
| 2 | Cladding Diameter | μm | 124.8±0.7 | |
| 3 | Cladding Non-Circularity | % | ≤0.7 | |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |
| 5 | Coating Diameter | μm | 245±5 | |
| 6 | Coating Non-Circularity | % | ≤6.0 | |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 | |
| 9 | Attenuation (max.) | 1310nm | dB/km | ≤0.35 |
| 1550nm | dB/km | ≤0.22 | ||
| 10 | Macro-Bending Loss | 1turn×7.5mm radius @1550nm | dB | ≤0.5 |
| 1turn×7.5mm radius @1625nm | dB | ≤1.0 | ||

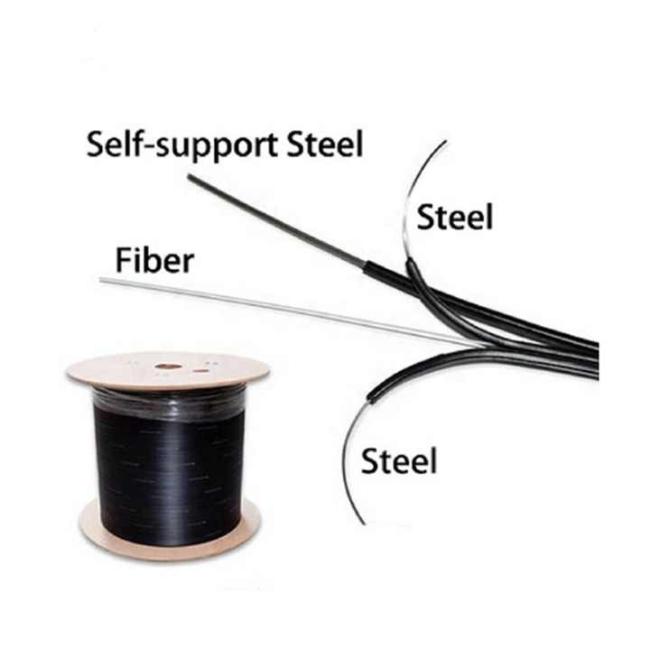

Cable Parameters
| Items | Specifications | |
| Fiber Count | 2 | |
| Colored Coating Fiber | Dimension | 250±15μm |
| Color | Natural | |
| Strength Member | Dimension | 0.45mm |
| Material | Steel Wire | |
| Self-Supporting Member | Dimension | 1.0mm |
| Material | Steel Wire | |
| Jacket | Dimension | 5.0±0.2mm×2.0±0.1mm |
| Material | LSZH | |
| Color | Black | |
Mechanical and Environmental Characteristics
| Items | Unite | Specifications |
| Tension (Long Term) | N | 500 |
| Tension (Short Term) | N | 1000 |
| Crush (Long Term) | N/10cm | 1000 |
| Crush (Short Term) | N/10cm | 2200 |
| Min. Bend Radius (Dynamic) | mm | 20D |
| Min. Bend Radius (Static) | mm | 10D |
| Installation Temperature | ℃ | -20~+60 |
| Operating Temperature | ℃ | -40~+70 |
| Storage Temperature | ℃ | -40~+70 |
Applications:
• Outdoor wiring system
• FTTH, terminal system
• Indoor shaft,building wiring
Used in access network or as access cable from outdoor to indoor in customer premises network;
Used as access building cable in premises distribution system, especially used in indoor or outdoor
Customization:
We provide FTTH drop cable with ODM/OEM brand name. It has the model number of Singlemode Multimode. The cable originates from China and has been certified by ISO. The minimum order quantity is 1000meters. The fiber core is single-mode and the cable diameter is 3.0mm. The operating temperature is -20℃~+60℃ and the attenuation is ≤0.36dB/km. Our FTTH fiber optic drop cable is Cat5e FTP cable and it is ideal for indoor use.
Support and Services:
FTTH Drop Cable technical support and services include:
- 24/7 technical support and troubleshooting
- Help with installation and setup
- Software and firmware updates
- Hardware replacement and repair
- Guidance for optimal performance
- On-site training and assistance
- Regular maintenance and inspection
Company Profile:
We are based in Guangdong, China, start from 2014,sell to South Asia(20.00%),Domestic Market(17.00%),Africa(10.00%),South America(9.00%),North America(8.00%),Southern Europe(6.00%),Western Europe(6.00%),Mid East(6.00%),Eastern Europe(5.00%),Northern Europe(5.00%),Central America(5.00%),Oceania(2.00%),Eastern Asia(1.00%). There are total about null people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber optic splice closure,FTTH box,Fiber optic pigtail,Fiber optic patch panel,Fiber optic connector
4. why should you buy from us not from other suppliers?
Strong R & D ability Factory for producing fiber optic products Professional service
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
