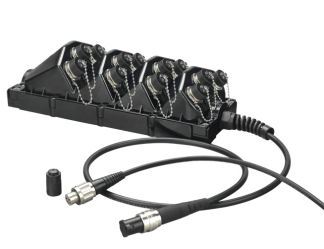

Ready to ship Custom tower MST FTTX Fiber waterproof box 8/12/24 port MPO SC fiber Optic FTTH terminal box IP65 with ada
Product Description:
Waterproof outdoor use IP MPO 12/24 core patch cord for tower MST distribuion box
IP MPO 12/24 waterproof fiber patch cable is the ideal design for outdoor fiber cable applications. Such product can meet the FTTA(fiber to the Antenna) program requirements for outdoor environment conditions.
Features:
-Easily add/install jumper cables for a future expansion;-Low insertion loss and added loss;
-Height of attenuation;
-Flexibility with small bending radius and excellent cable routing properties;
-End-face geometry and quality superior than IEC and Telcordia standards;
-The material in the jumpel cable are all-weather and UV-resistant;
-Mechanical performance: IEC 61754-20 standard;
Technical Parameters:
| Dimension L*W*H | 365*137*90mm without cover 375*142*120mm with cover |
| Ingress Protection | IP67 |
| Temperature Range | -40~+80° |
| Cable Strength Member | Armored or None Armored |
| Cable Type | Hybrid or None Hybrid |
| Round Cable OD | 5.0mm to 14 mm |
| Flat Cable Dimension | 4.6*8.9mm |
| Cable Jacket Material | LSZH , TPU or PE |
| Bending Radius | 20D |
| Cable Crush Resistance | 200N/cm long term |
| Tensile Strength | 1200N long term |
| UV Resistance | ISO 4892-3 |
| Fire Protection Rating | UL 94-V0 |
| Number of PLC | 1-2 PCS |
| Number of Protection Sleeves | 1-24PCS |
Applications:
-Multi-purpose Outdoor;
-For connection between distribution box and RRH(RRU);
-Deployment in Remote Radio Head cell tower applications.

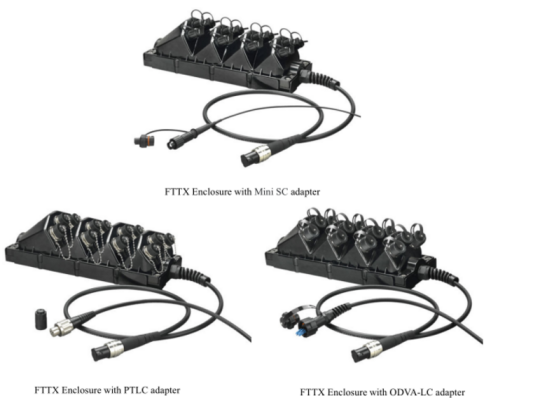

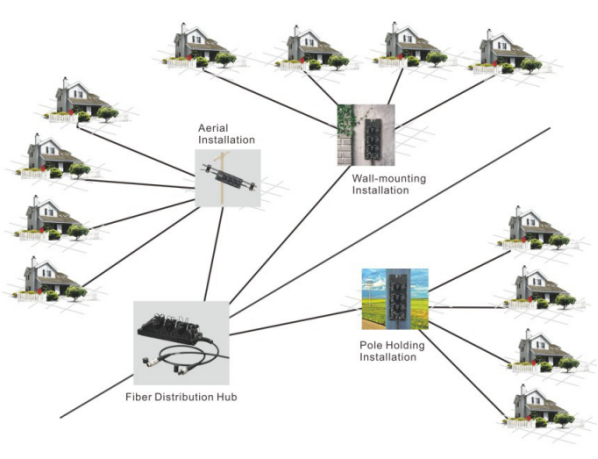

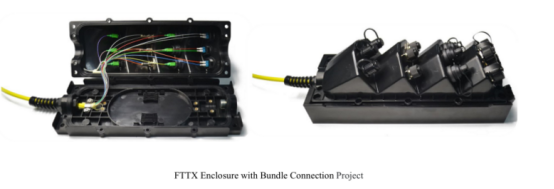

Traditional solution use ONU or FDH (Optical Network Unit/Fiber Distribution Hub), when trunk optical cable arrives to outside of mansions and villas. FTTX Enclosure can replace ONU or FDH because it has fiber distribution function. Inside, it can be fixed 2-4pcs 1*8 or 1*16 PLC, and can be put 24pcs fiber splice protection sleeves. After mating with 1-48F IP67 pre-assembled waterproof connector, FTTX Enclosure can connect each mansion and villa or low voltage silo directly. It can be fixed outside of mansions and villas, or holding pole installation. FTTX Enclosure can reduce signal loss through less connecting node. For in factory pre-assembled FTTX Enclosure, it’s no need high skill operator because of no fiber splice operation. Installation efficiency can be increased by 40%.
Customization:
- Brand Name: ODM/OEM
- Model Number: Singlemode Multimode
- Place of Origin: China
- Cable Type: Outdoor Armored Cable
- Cable Diameter: 3.0mm/ 3.5mm/ 4.0mm/ 4.8mm/ 6.0mm/ 7.0mm/ 8.0mm/ 9.0mm/ 10.0mm
- Insertion Loss: ≤0.3dB
- Packaging Details: Carton Box
- Use: FTTA
Fiber Jumper, Outdoor Fiber Patch Cord, Outdoor Optical Patch Cord are all available for customization.
Support and Services:
We provide technical support and service for our Outdoor Fiber Optic Patch Cord products. Our team of experienced engineers and technicians can provide fast, reliable and cost-effective solutions to any issues that may arise.
We offer a range of services including installation, troubleshooting, and repairs. Our team can also advise on best practices and provide advice on how to maximize the performance of our products.
If you have any questions or require assistance, please don't hesitate to get in touch. We aim to provide an excellent level of customer service and will do our best to ensure that your issue is resolved quickly and efficiently.
