2"-8" DN125 Concrete Pump Cleaning Ball Sponge Cleaning Ball
Concrete Pump Pipe Cleaning Ball/Delivery Pipe Cleaning Ball/Sponge Cleaning Ball
1.Product description
About the concrete pump cleaning parts,we have Concrete Pump Cleaning Ball, also have Concrete Pump Cleaning Bullet. Same with cleaning ball , we have soft cleaning cylinder, middle soft concrete pump cleaning bullet,and hard concrete pump cleaning bullet, yes, we have square type cleaning parts.Also have many different sizes, 2"/2.5"/3"/4"/5"/6" and so on.
| Product name | Concrete Pump Pipe Cleaning Ball | |||||
| Material | Natural rubber and spong | |||||
| Type | Soft/Medium/Hard | |||||
| Size | DN50(2") | DN65(2.5") | DN80(3") | DN100(4[) | DN125(5") | DN150(6") |
| OD | 60 | 95 | 89 | 124 | 150 | 175 |
| Usage | used on cleaning concrete pump pipe inner wall concrete | |||||

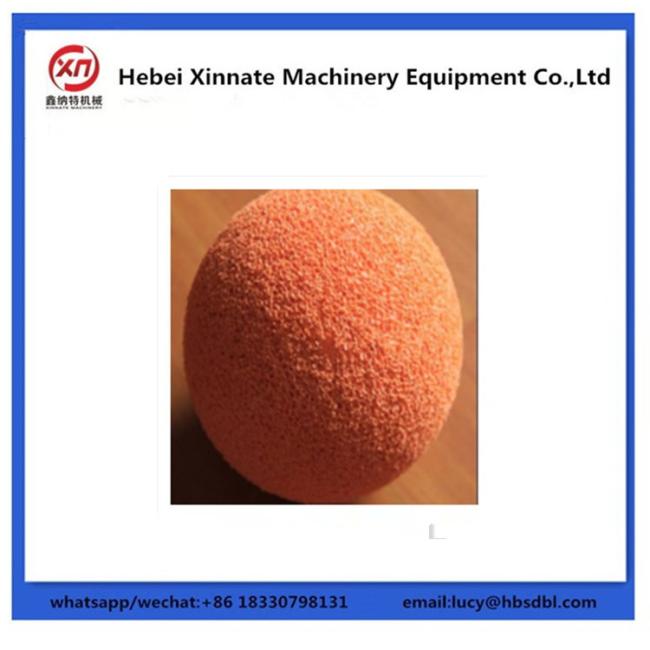

2.Schematic diagram of cleaning ball appearance
3.Precautions for cleaning balls
(1)The performance parameters of the water pump used: the pressure is not lower than 4.3MPa, the flow rate is not lower than 180L/min.
(2)The variable diameter tube is used for connection and collection, and the filler (rubber piston, sponge ball, cement bag roll, etc.) must be tightly put into the variable diameter tube that is one level larger than the delivery tube.
(3)When sponge balls or cement bag rolls are used as fillers, the sponge balls or cement bag rolls must be permeated with cement slurry.
(4)When cleaning the delivery pipe for a long interval, press in excess cement mortar before cleaning.
4.Looking forward to your inquiry
