BT50-MTA3 morse taper holder BT Morse Taper Adapter milling tool holder morse taper chuck adapter

MORSE A TAPER ADAPTER WITH BT SHANK ,BT tool holders will accept both imperical and metric sized tools, BT tooling looks very similar and can easily be confused with CATEE tooling.BT Morse taper milling tool holder, suitable for clamping type DIN228-1A with flat tail Morse tool holder. high speed and high precision machining .Mechanical spindle and cutting tools and other accessories.High Precision BT shank Tool Holder ,balanced G6.3 or G2.5 For choose.

Precision bt mt morse taper holder Drill Sleeves
1.Morse Taper Adapter Morse Taper Chuck Adapter Material: 40Cr, 20CrMnTi
2.BT Morse Taper Adapter Type: MTA, MTB
3.Model: MTA1, MTA2, MTA3, MTA4, MTA5
MTB1, MTB2, MTB3, MTB4, MTB5
4.Morse Taper Adapter 3 To 2 Accuracy: 0.005mm

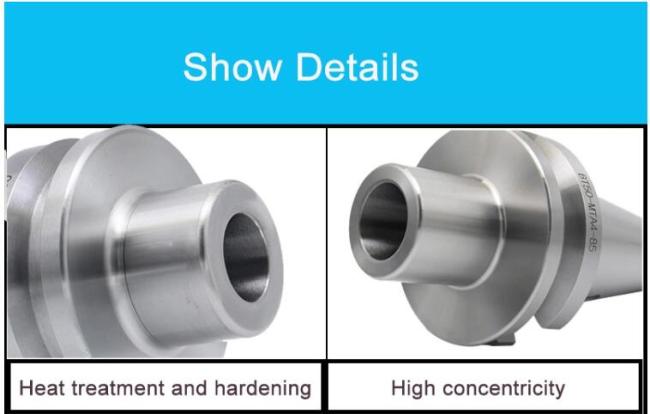

5.Morse Taper Chuck Adapter Hardness: 52-58HRC
6.Usage: For clamping tools with Morse tapers
7.Coolant: AD, B, AD+B type
8.Dynamic balancing: G6.3/12000rpm, G2.5/25000rpm
9.Standard: MAS403BT, DIN69871, CATEE ANSI B5.50, DIN2080,
10.Surface; heat treament, sand blasting

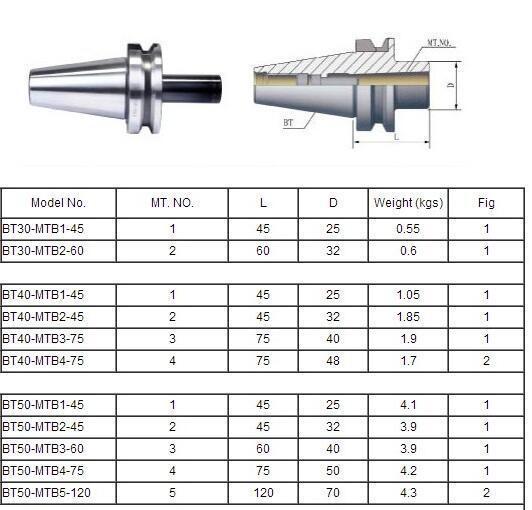

Machine Tools Precision BT Morse Taper Sleeve with Tang BT Morse Taper Adapter Sleeve , BT tooling comes in a range of sizes designated as BT30, BT40, BT50, etc, and uses the same NMTB body taper as CATEE, BT tooling is symmetrical about the spindle axis. This gives BT tooling greater stability and balance at high speeds.BT-MTA Morse taper milling tool holder, suitable for clamping type DIN228-1A with flat tail Morse tool holder.



 BT Morse taper adapter A type milling chuck , suitable for clamping type DIN228-1A with flat tail Morse tool holder. BT tooling comes in a range of sizes designated as BT30, BT40, BT50, etc, and uses the same NMTB body taper as CATEE, BT tooling is symmetrical about the spindle axis. This gives BT tooling greater stability and balance at high speeds. BT tool holders will accept both imperical and metric sized tools, BT tooling looks very similar and can easily be confused with CATEE tooling. The difference between CATEE and BT is the flange style, thickness, and the thread for the pull stud is a difference size. BT tool holders use metric thread pull stud. We have G6.3 rpm 12000-16000 and G2.5 rpm 18000-25000.
