RX Rigid Tooth Flank Helical Gear Units

Characteristics and advantages

1.The R series gear reducer designed specifically for mixers can withstand large axial and radial forces.

2. Small bias output, compact structure, utilizing box space, using an integral cast box, with good stiffness, can improve shaft strength and bearing life.

Specification parameters

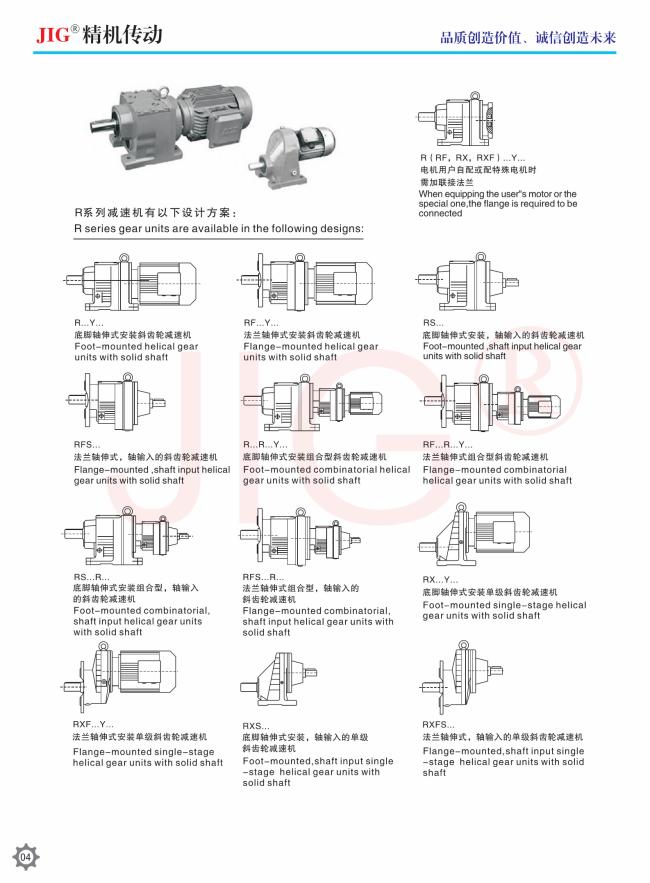

Installation form: base type, flange type, small flange type, torsion arm type.

Output method: solid shaft

Input method: directly connected to the motor, shaft input, and connecting flange input.

Technical parameters: speed ratio i=3.41-289.74, R/R combination up to 18125

Efficiency: Level 2≈96%, Level 3≈94%, R/R combination≈85%
