High Suction Mining Slurry Pump Large Volume Submersible Dewatering
High Suction Large Volume Submersible Dewatering Mining Slurry Pump

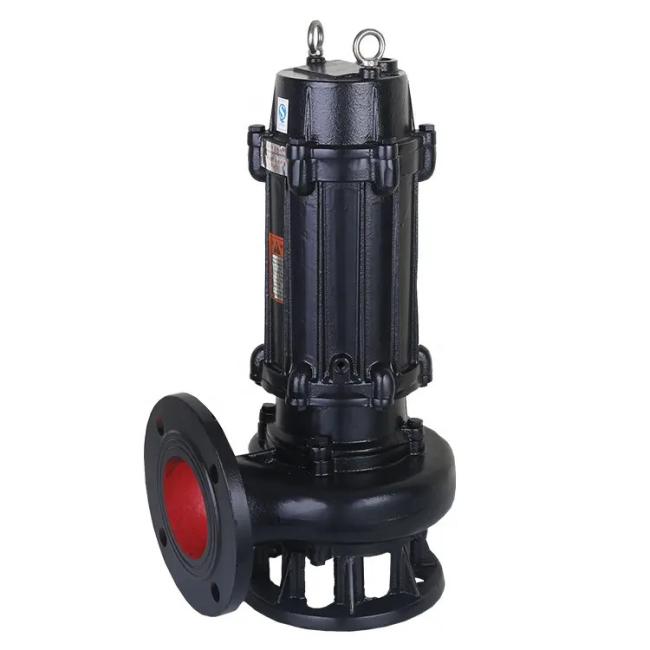

Industrial Slurry Pump Description
The submersible sewage pump (hereinafter referred to as the electric pump) consists of three parts: motor, pump and seal.The motor is located at the upper part of the electric pump, which is a three-phase asynchronous motor. The alloy double-end mechanical seal is used between the pump and the motor.This model has features such as energy-saving, anti-winding, non-clogging, automatic installation and automatic control. This pump uses special structure impeller and new mechanical seals to make it more efficient in delivering sewage with solid particles and long fibers. Compared with traditional impellers, the new ones (spiral-flow type or double-leaf type) have an excellent delivery capacity, which improves the pump performance. It runs more smoothly without any vibration.
Industrial Slurry Pump Technical Sheet
| Product | Industrial Slurry Pump |
| Maximum Head | 100m |
| Horsepower | 5.5KW, 7.5KW, 11KW, 15KW, 30KW, 45KW |
| Maximum Flow Rate | 300m3/h |
| Range of application | Water treatment, agricultural |
Industrial Slurry Pump Application
It can be customized with 304/316 stainless steel type, high temperature resistent type and cutting impeller type.
Industrial Slurry pump Working Conditions
Proper medium: liquids with chemical property similar to pure water should be non-corrosive. Solid size should be no larger than 30% of the pump suction diameter. Fiber length should not be over 2.5 times of the pump suction diameter. When the medium density is more than 1.05, the motor power should be increased accordingly to prevent the motor from overload operation.
Huatao Pumps Application
Huatao Pumps Package, Shipment, Workshop
Exhibition And Customer Visting
Please ask for pump details and price by inquiry@huataogroup.com. For any questions will reply within 24 hours.
