12V 24V 48V 40W 60W 80W 3D Print Industry Electric Cartridge Heater For Heating

12v 24v 48v 40w 60w 80w Industry Electric 3d Print Cartridge Heater For Heating

MCH is metal ceramics heater the "make, meaning is metal ceramic heating element. MCH refers to the design of metallic tungsten or molybdenum manganese with high melting point metal heating resistance Slurry required printing to be printed in 92 ~ 96% of alumina casting ceramic tiles, after hot-pressing laminated, then protect the atmosphere at about 1600 ℃, ceramics and metals jointly sintered and made of ceramic tiles, with corrosion resistance, high temperature resistance, long life, efficient energy saving, uniform temperature, good thermal conductivity, the speed of Heat Compensation is fast and so on, and it does not contain lead, cadmium, mercury, chromium, more, more, etc. matter, comply with environmental requirements such as EU rohs and other environmental protection requirements.

Specifications.

* Substrate: White multi-layer alumina ceramics
* Lead: In a ф 0. 5mm of Nickel wire(The length depends on the customer).
* Casing, tape: Teflon, high temperature resistance to high temperature
* Resistance: high temperature materials such as tungsten, etc.
* Product thickness: 0.7 ~ 2.0. Customizable

Main Parameter

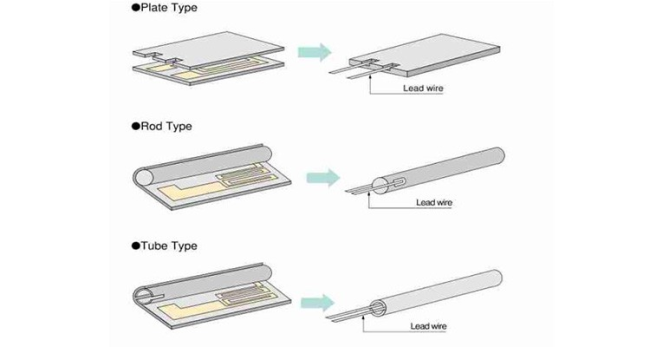

Design Structure

Ceramic heaters are manufactured by printing resistors on alumina sheets or silicon nitride plates, being laminated and sintered into one piece.

Application

* Home Appliance: small warm-air heater, air purifiers, houlsehold deodorization, clothes dryer, electric heating splint, iron, electric iron, thermos flask, insulation cabinet, electric cooker, smart toilet ceramic heater, instant heating water dispenser, etc..

* Beauty: hair dryer,hair straightener, curling iron, masssagers, humidifiers, facial steamer etc..

* Kitchen and Bathroom: coffee machine, yogurt maker, baby bottle warmer, sterilizer, beverage machine, instant heating water dispenser, electric faucets, showers, smart toilet ceramic heater etc..

* Medical Field: Infrared physiotherapy instrument, intravenous injection heater, forehead thermometer,ventilator, dialysis machine, nuclear acid extractor, moxi-bustion etc..

* Popular Field: HNB cigarettes, 3D printing etc..

Company profile

Shaanxi KairuiHongxing Electronic Co.,Ltd is a professional domestic and foreign trade, production and sales integration of companies, we produce all types of ceramic igniters, ozone generator ceramic plate and iqos heating plate.
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Europe. At the same time we has obtained ISO9000, CE, ROHS certificate.
If you are interested of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
