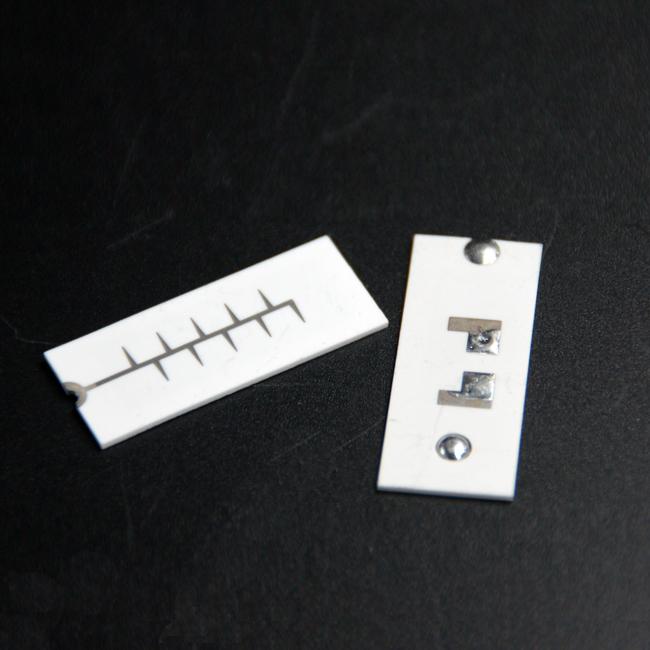

100mg Ceramic Ozone Plates for Air Ozone Purifier

Ceramic ozone tablets are used to produce ozone generator, remove peculiar smell, sterilize and disinfect. The 100mg Ceramic Ozone Plates for Air Ozone Purifier is Long-life ceramic plates, which are made through green production on 96% aluminum oxide ceramics, with silk-screen discharge resistance of tungsten and molybdenum and other agents, flattened and tin-treated on electrodes after co-firing to high temperature 1650 ℃. High temperature co-firing electrodes and circuits never fall off, and are with excellent moisture and oxidation resistance.

Technical parameter

Test conditions:

1. Feed Gas: Dry air or oxygen source recommendated
2. Ambient temperature: ≤10℃, Humidity: <10% (Different temperature and humidity in the environment will affect the ozone output and concentration.)

Application

It is used in household air purifier, air fresher, home air purifier, Dryer, dishwasher, shoe cabinet, household disinfectant cabinet, oxygen bar, dehumidifier, refrigerator, domestic appliance and so on.

Attention must be paid to the following:

1 Cooling method: Air cooling for transformer and ceramic plate.
2 When ozone generators work, it is necessary to have cooling fans to blow the ceramic plates and ozone power supplies. When installing the power supply, please make sure there is 2-3cm high space between its bottom and the fixed board, so that heat on the bottom of the power supply can be radiated quickly.
3 This is a high voltage product. Do not touch it when it is working.
4 Usually after ozone sterilization, it needs 20-30 minutes to diffuse ozone before anyone enters. And only when the ozone concentration is or below 0.15ppm, it is permitted to enter.
5 The ozone output test data is based on 95% pure oxygen feeding and dew point -45°. Different temperature and humidity in the environment will affect the ozone output and concentration.

    Shaanxi KairuiHongxing Electronic Co.,Ltd is a professional domestic and foreign trade, production and sales integration of companies, we produce all types of ceramic igniters, ozone generator ceramic plate and iqos heating plate.

    Our company was established in 2007, have many years of history in the ceramic heating industry,it can also be in accordance with the requirements of the project put forward by your company, by our professional team which will set the stature for you do not trouble back at home of the one-stop service from designation installation and debugging to production. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching Europe. At the same time we has obtained ISO9000, CE, ROHS certificate.

    If you are interested of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
