Heating 230V and 300W Pellet Resistance Ceramic Cartridge with 30cm Customized Lead Wire
230V and 300W pellet resistance ceramic cartridge
|

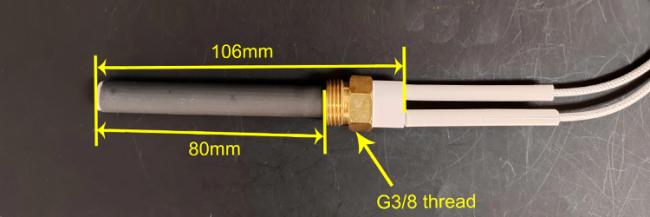

Size
|
Diameter: 11.5 mm. Total length: 106mm. Bottom length: 80 mm.
|
|
Power
|
250-280 Watts.
|
|
Maximum temperature
|
970 ° C
|
|
Application |
Resistance, ignition glow plug for ceramic pellet stoves, suitable for pellet ignition and wood chips for stoves, boilers and burners.
|
|
Tested
|
for over 10,000 ON / OFF cycles, with fast ignition times.
|
|
Flange
|
G3/8 brass flange
|
|
Mounts on stoves
|
Central heating boilers PELLASX pellet burners. |
Detailed Images

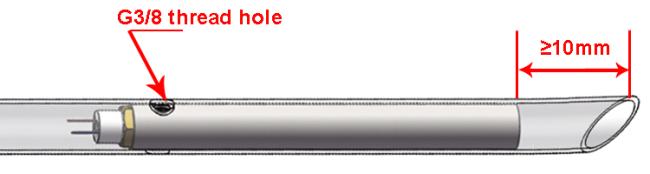

* Installation
1. The igniter is more than 10mm away from the bottom of the metal tube
2. The igniter must not be exposed to direct flames. This can cause the heating element to directly leak current during operation, leading to circuit tripping.
3. Be sure to leave a minimum 3mm gap around the ceramic igniter and the metal tube.
Related Products
φ8.8*71mm φ9.3*81mm φ11.5*93mm
12V 80W 110V 110W 120V 280W
φ11.5*93mm φ11.5*93mm φ11.5*93mm
230V 230W 220V 240-300W 120v300W
φ9.3*71mm φ11.5*93mm φ11.5*106mm
12V 110W 120V 280W 120V 300W
Packing & Delivery
Packaging Details :1000pcs/CTN, each CTN with single box, 40CTN/pallet. Export standard, 100% no damage
Delivery Time:3-15days
SHIPPING - Meanwhile, other shipping ways are available such as FedEx, UPS, TNT, EMS, China Post or Sea.
Just let us know which one is best for you, we do all the left work.
