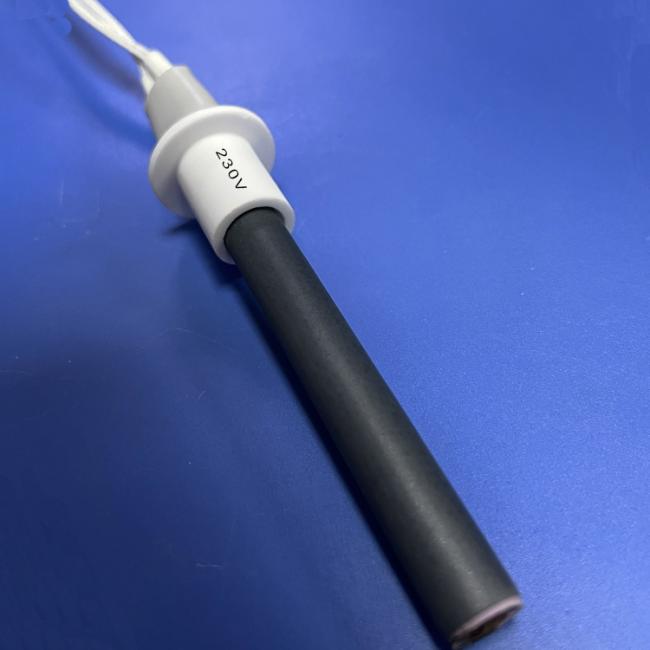

Alumina ceramic high temperature igniter
Alumina ceramic high temperature igniter
Wood pellet and biomass system ceramic igniter
Kairuihongxing ceramic igniters fit in wood pellet, woods chips or any other biomass appliances. No matter the appliance, whether it's a stove, boiler, grill, or burner, our cutting-edge technology ensures quick and reliable ignition in every system.
Material
| Model No | KR--MTR-B |
| Voltage | 120V / 230V |
| Power | 250-320 W |
| Tube Size | OD11.5 × ID6.5 × L106 mm(Or Customized) |
| Heating element | Metalized Alumina AI203 96% |
| Heat shinkcable tube | silicone cable, heat resistance 180°C |
| Lead wire |
Silicon glass cable - High temperature resistant |
| Crimp terminal connector | 800~1100 °C |
Product profile
Product Property
| Properties |
Value
|
Condition |
| Voltage | AC230V | 50/60 Hz |
| Power consumption | 300 W (AC230V) | in free air environment |
| Cold resistance value | 40.15~49.13Ω |
23±1°C ambient temperature
|
| Rising time | >820°℃ within 60s. Max temperature of 1000°C after 120s | 23±1°C ambient temperature |
| Minimum Wattage | 250W at 230V | |
| Minimum temperature | 870℃ | |
| Insulation resistance | >50MΩ | Applied at both side of Heating element DC500V at normal temperature and humidity |
| Withstand voltage |
Current Leakage ≤5 mA
|
Applied at both side of Heating element AC 1500V for 1 s at normal temperature and humidity rate |
|
Caulking strength (Nickel wire and lead wire) |
≥29.4 N(over 3kg f) | The nickel wire has been clamp and the lead part has been tested with push-pull gauge. |
| Discontinuous conduction (heating element) | Without breaking | Applied at 264V for 4min On/5min Off (forced cooling) for over 3000 cycles |

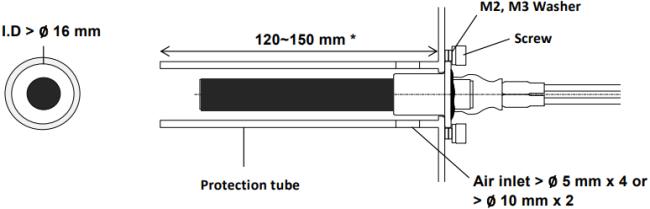

Recommended install design

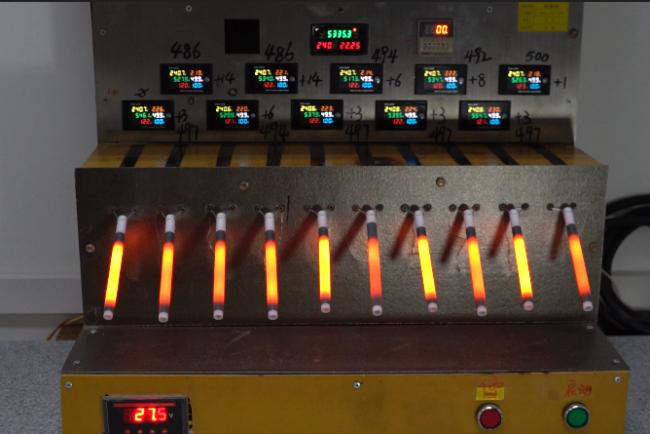

Testing - On-off 100,000 cycle
Ceramic ignition technology benefits
Speed - Time to ignition 60~90 seconds
Lifespan - Long lasting (nearly non-aging)
Energy saving - A fraction of the energy consumption compared to conventional cartridge or element heater
Reliability - Tested to 100,000 cycles, 40 years of market feedbacks and enhancements
Emission decrease - Reduces appliance particles emission thanks to shorter ignition phase
Temperature - 1000°C at steady-state temperature
Compatibility - Easy to install and retrofit. Fits any steel tube with an inner diameter of ≥16~18mm
Ignition - Ignite wood pellet, wood chips, split logs, straw and other solid biomass
Security - Cannot overheat even with blower failure due to PTC property. Fully electrically insulated with no exposed electric contacts
Voltage - Available in 100V / 120V / 230V AC
Robustness - Impervious to oxidation and corrosion
Certification - Comply with RoHS, REACH, CE regulation. TUV Sud and TUV Rheinland certified. UL certified wiring possible (200 to 500°C heat resistant wire)
| Applications of use |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Advantages |
Longest history = best reliability |
|
The shape of round flange make it is easier to install and secure in position. It save time and cost on production line |
|
|
Glass sealing method = high airtightness (perfect for hermetic systems) |
|
|
Powerful 300W heating element: can ignite all kind of biomass and even humid pellet = no ignition failure |
Observations: This replacement usually has a life of 2 to 4 years (depending on the number of ignitions and humidity that exists in the place).
It is advisable to change it in a maximum of 4 years, to prevent it from stopping working in the middle of the winter season.
Once unsealed from its heat shrink bag, this product cannot be returned.
