1700C Hydrogen Furnace Hydrogen Gas Furnace OD90mm With Ignition Device
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
7 working days
Brand:
Programtherm
Product Description
Product Overview for Laboratory Hydrogen Gas Tube Furnace
PT D90/300/17H is a safe hydrogen tube furnace, The processing tube is made of high-quality alumina ceramic tube. One Ignition device and hydrogen detector is included which will shut down the Hydrogen gas generator and gas inlet valve immediately once detecting hydrogen gas leaking.
The tube furnace is designed for processing material under hydrogen gas up to 1700°C safely. Also, the furnace can be used for all kinds of inert gasses and oxygen gas up to 30 PSI. The precision temperature controller is a 30-segment programmable
Main Features
- Tmax 1700 °C
- Horizontal tube furnace, Hydrogen gas atmosphere
- Dual steel structure, non-split furnace chamber built on a small trolley, easy to move
- Multiple atmosphere processes in a single cycle are available
- Fiber-insulated chamber with powerful SiC rod heating elements
- Alumina tube with sealing flanges
- Long life type B thermocouple
- CE certified, standard
Safety Measures
- Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
- Overheat protection shuts down the tube furnace if temperature is outside of acceptable range (refer to controller's manual) or when the thermocouple is broken or malfunctions
- Power failure protection resumes furnace operation right after the point of failure when power is reestablished
- Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot
Product Gallery

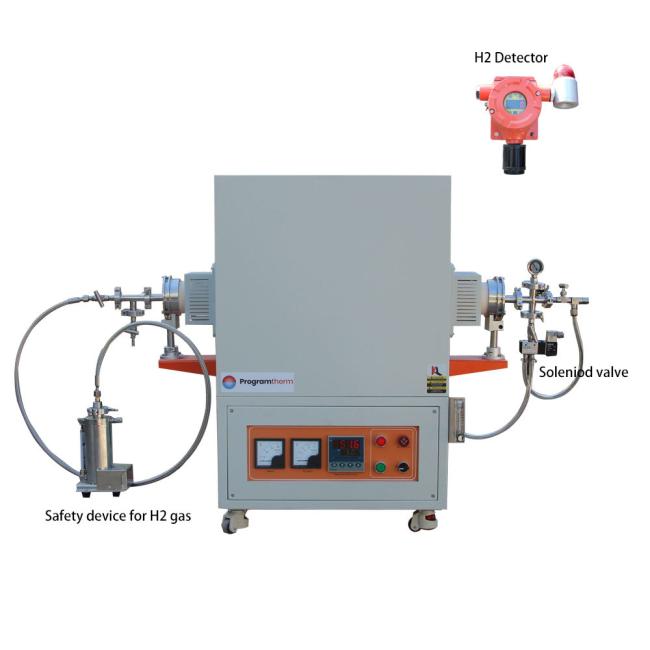

Front View for 1700C Hydrogen GAS Tube Furnace

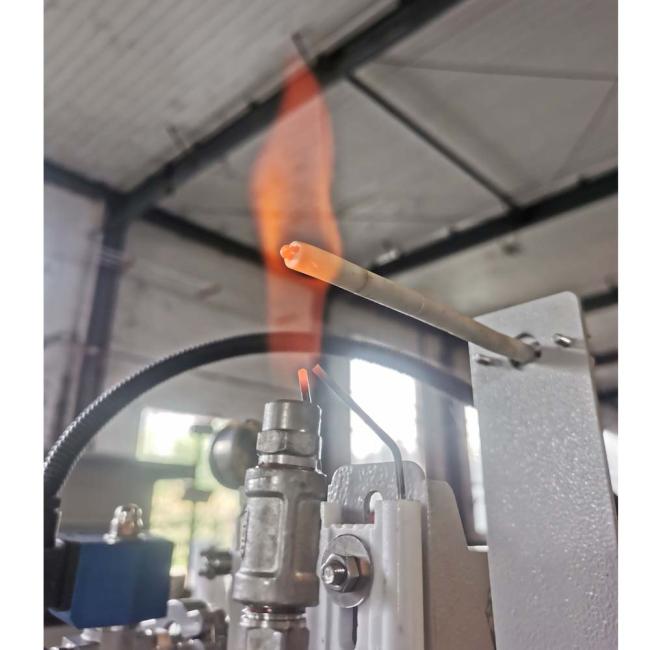

Ignition device for H2 gas
Technical Specifications
| Model No. | PT D90/300/17 |
| Heating zone |
|
| Power supply | 6KW AC230V, 50/60Hz, single phase |
| Working temperature |
|
| Temperature controller |
|
| Heating rate | ≤10°C /min |
| Thermocouple | B type |
| Chamber lining | Mitsubishi raw material high alumina 1800 grade fiber board |
| Furnace tube |
|
| Vacuum flanges |
|
| Atmosphere gas | Hydrogen, Argon, Nitrogen, etc |
| Hydrogen Detector sysetem |
|
| Heating element |
|
| Shipping info | Weight: 120kgs W660xL980xH1600mm |
| Compliance | CE, ISO |
| Warranty | 2 years limited warranty with lifetime technical support |
Application Notes
- Don't fill any explosive gasses such as Hydrogen or Methane into the furnace tube without necessary safety controls and supervision
- 1400C tube furnaces with alumina tube are designed for use under vacuum and low pressure; 0.2 bars / 3 psi / 0.02 MPa
- To minimize the cracking rate of the ceramic tubes, please change the position (mark four points on the tube) each batch
- Small cracks may appear on the surface of the refractory ceramics over extended use. This is a normal occurrence and the cracks may be repaired with alumina coating
